Event Specification
Magnitude |
4.3 |
| Date & Time (UTC) | 2014-08-23 22:31:48.4 |
| Date & Time (Local) | 1393/6/2 03:01:48.4 |

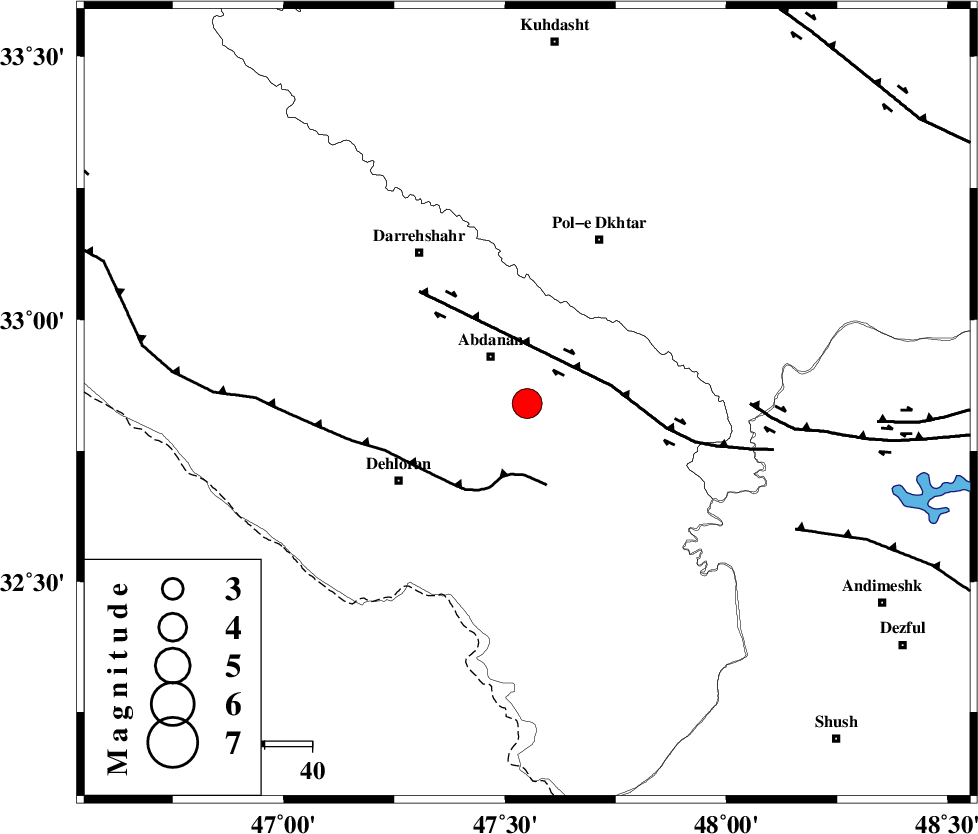

| Location | Lat:32.84 Lon: 47.55 |
| Region | Ilam Province, 13 km Abdanan |
Nearest Cities |
|
| 7 km of Sarabbagh, Ilam Province | |
| 13 km of Abdanan, Ilam Province | |
| 31 km South West of Sarab hammam, Lorestan Province | |
| 32 km North East of Dehloran, Ilam Province | |
| 37 km North East of Musian, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 15 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 18 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 47 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >3 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 10.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93255 | IIEES | AHRM | N | 197.7 | 0.76 | 2014-08-23 22:34:54 | 2014-08-24 12:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-23 22:32:12 | 0.3 | y | 143 | 124 | |||
| IIEES | SHGR | E | Sg | E | 2014-08-23 22:32:29 | -0.22 | y | 143 | 124 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-23 22:32:26 | -0.35 | y | 246 | 65 | |||
| IIEES | KHMZ | N | Sg | E | 2014-08-23 22:32:58 | 0.49 | y | 246 | 65 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-23 22:32:27 | 0.22 | y | 251 | 356 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-23 22:32:54 | -0.08 | y | 474 | 43 | |||
| IIEES | CHTH | E | Sg | E | 2014-08-23 22:34:00 | -0.44 | y | 474 | 43 | |||
| IIEES | DAMV | Z | Pn | E | 2014-08-23 22:32:59 | -0.13 | y | 512 | 52 | |||
