Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2014-08-24 01:12:50.6 |
| Date & Time (Local) | 1393/6/2 05:42:50.6 |

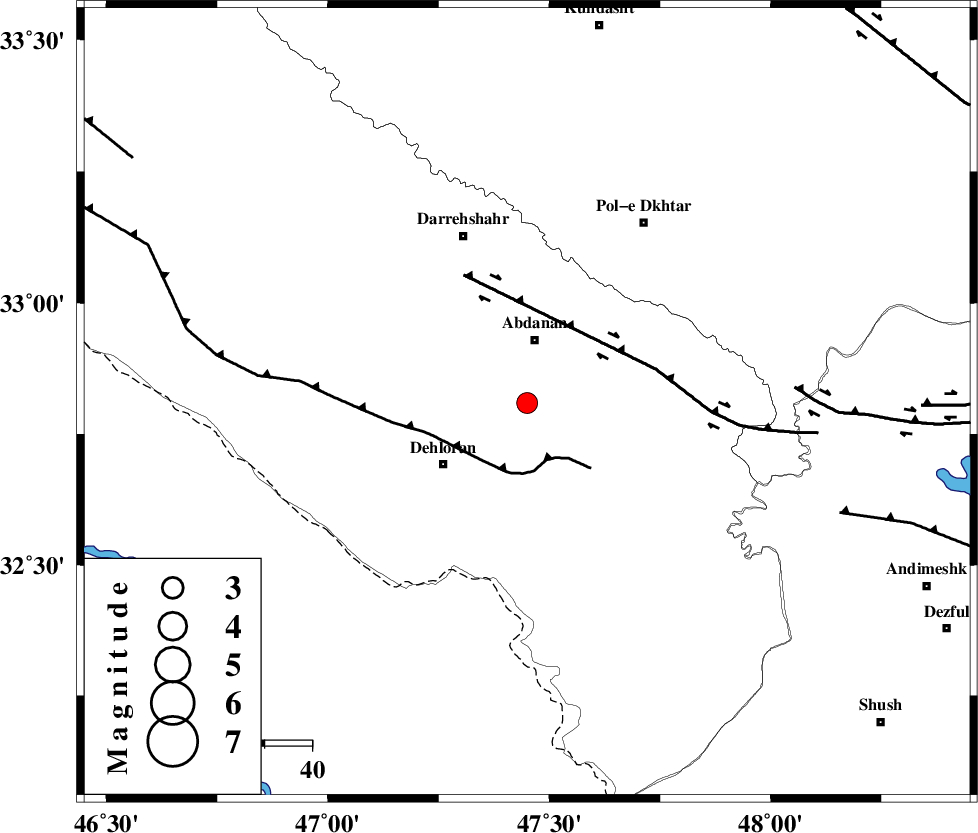

| Location | Lat:32.81 Lon: 47.45 |
| Region | Ilam Province, 13 km South of Abdanan |
Nearest Cities |
|
| 13 km South of Abdanan, Ilam Province | |
| 15 km West of Sarabbagh, Ilam Province | |
| 22 km North East of Dehloran, Ilam Province | |
| 31 km North of Musian, Ilam Province | |
| 38 km South East of Darreh Shahr, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 13 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 57 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93261 | IIEES | SHGR | E | 295 | 0.28 | 2014-08-24 01:13:35 | 2014-08-24 04:02:00 | n |
| 93262 | IIEES | SHGR | N | 200.7 | 0.28 | 2014-08-24 01:13:36 | 2014-08-24 04:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-24 01:13:15 | 0.01 | y | 149 | 121 | |||
| IIEES | SHGR | E | Sg | E | 2014-08-24 01:13:33 | 0.04 | y | 149 | 121 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-24 01:13:29 | 0 | y | 253 | 358 | |||
| IIEES | SNGE | N | Sg | E | 2014-08-24 01:14:02 | 0.03 | y | 253 | 358 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-24 01:13:29 | -0.08 | y | 256 | 66 | |||
