Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2014-08-24 19:11:09.6 |
| Date & Time (Local) | 1393/6/2 23:41:09.6 |

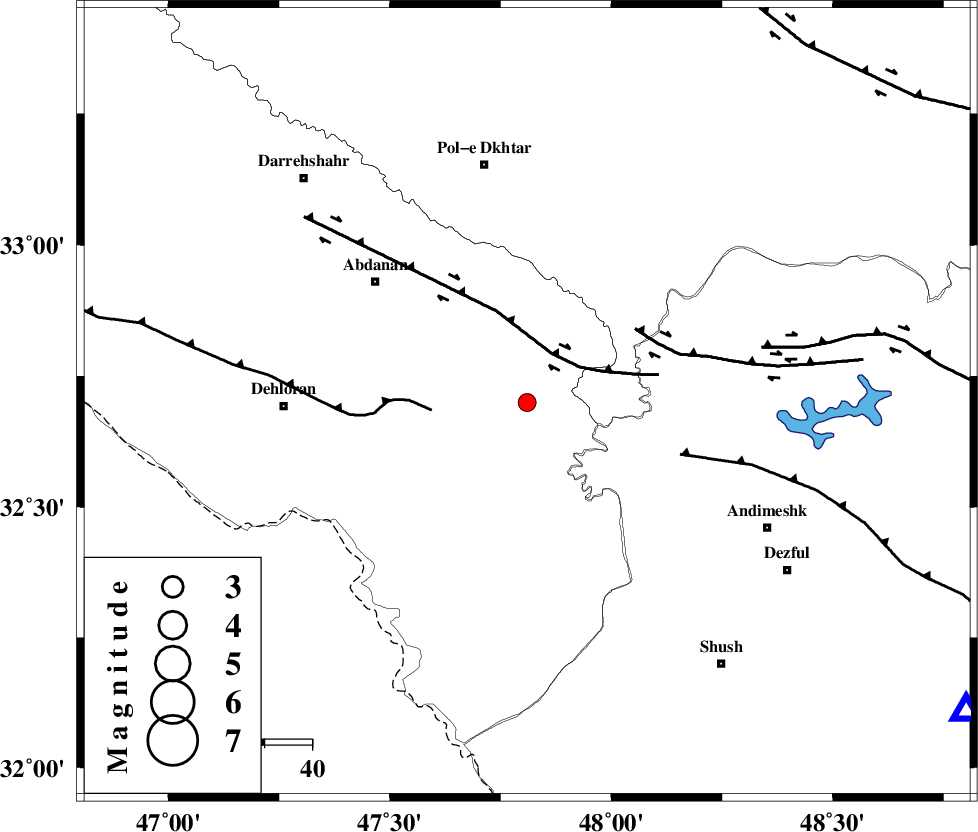

| Location | Lat:32.7 Lon: 47.81 |
| Region | Ilam Province, 51 km South of Pol-e dokhtar |
Nearest Cities |
|
| 32 km South East of Sarabbagh, Ilam Province | |
| 40 km West of Bidruyeh, Khoozestan Province | |
| 41 km South East of Abdanan, Ilam Province | |
| 41 km North West of Hoseinieh, Khoozestan Province | |
| 45 km North East of Musian, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 12 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 20 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 28 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93276 | IIEES | SHGR | E | 146.6 | 0.36 | 2014-08-24 19:11:52 | 2014-08-24 09:18:00 | n |
| 93277 | IIEES | SHGR | N | 159.7 | 0.36 | 2014-08-24 19:11:56 | 2014-08-24 09:18:00 | n |
| 93278 | IIEES | SNGE | N | 33.2 | 0.48 | 2014-08-24 19:12:30 | 2014-08-24 09:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-24 19:11:28 | 0.01 | y | 114 | 125 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-24 19:11:42 | -0.02 | y | 114 | 125 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-24 19:11:46 | -0.01 | y | 231 | 60 | |||
| IIEES | KHMZ | Z | Sg | E | 2014-08-24 19:12:15 | 0 | y | 231 | 60 | |||
| IIEES | GHVR | Z | Pn | E | 2014-08-24 19:12:04 | 0.16 | y | 375 | 57 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-24 19:12:15 | -0.06 | y | 469 | 40 | |||
| IIEES | DAMV | Z | Pn | E | 2014-08-24 19:12:19 | -0.12 | y | 503 | 49 | |||
