Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2014-08-26 15:29:27.3 |
| Date & Time (Local) | 1393/6/4 19:59:27.3 |

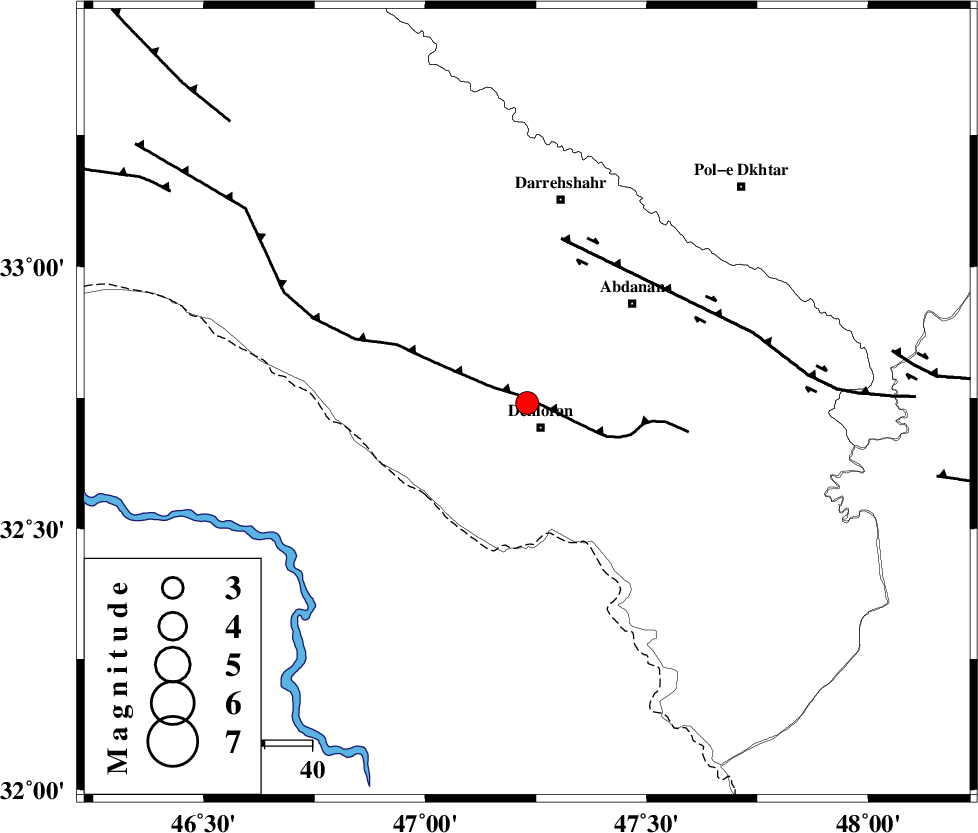

| Location | Lat:32.74 Lon: 47.23 |
| Region | Ilam Province, 6 km Dehloran |
Nearest Cities |
|
| 6 km North of Dehloran, Ilam Province | |
| 25 km North West of Musian, Ilam Province | |
| 26 km East of Bishehzar, Ilam Province | |
| 31 km South West of Abdanan, Ilam Province | |
| 36 km South West of Sarabbagh, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 1 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 36 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 78 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 11.3 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93328 | IIEES | AHRM | N | 20.6 | 0.4 | 2014-08-26 15:31:44 | 2014-08-26 05:05:00 | n |
| 93329 | IIEES | AHRM | E | 16.6 | 0.48 | 2014-08-26 15:31:45 | 2014-08-26 05:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-26 15:29:54 | 0.44 | y | 164 | 115 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-26 15:30:13 | -0.25 | y | 164 | 115 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-26 15:30:09 | 0.04 | y | 278 | 66 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-26 15:30:15 | -0.37 | y | 328 | 52 | |||
| IIEES | ASAO | E | Sg | E | 2014-08-26 15:30:59 | 0.17 | y | 328 | 52 | |||
| IIEES | GHVR | Z | Pn | E | 2014-08-26 15:30:26 | -0.05 | y | 420 | 62 | |||
