Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2014-08-27 08:21:36.3 |
| Date & Time (Local) | 1393/6/5 12:51:36.3 |

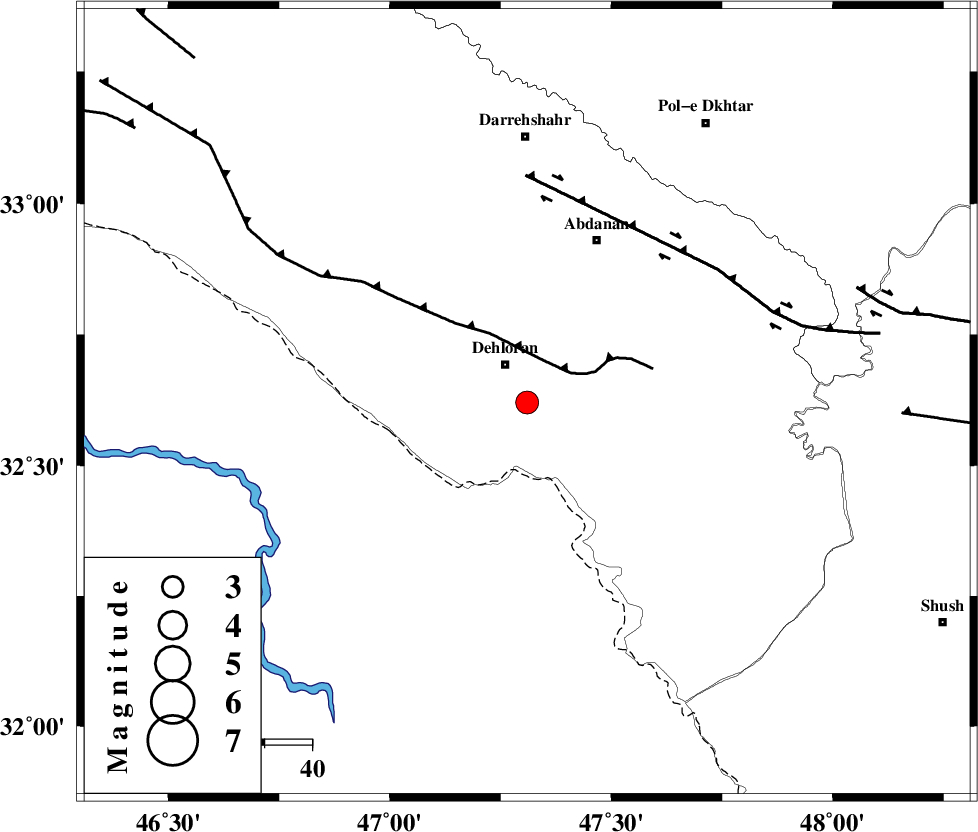

| Location | Lat:32.62 Lon: 47.31 |
| Region | Ilam Province, 10 km Dehloran |
Nearest Cities |
|
| 9 km of Dehloran, Ilam Province | |
| 9 km North of Musian, Ilam Province | |
| 38 km South West of Abdanan, Ilam Province | |
| 39 km South East of Bishehzar, Ilam Province | |
| 39 km South West of Sarabbagh, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 10 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 48 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 74 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 7.8 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93340 | IIEES | SHGR | E | 356.6 | 0.62 | 2014-08-27 08:22:24 | 2014-08-27 11:19:00 | n |
| 93341 | IIEES | SHGR | N | 344.8 | 0.65 | 2014-08-27 08:22:25 | 2014-08-27 11:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-27 08:22:01 | -0.03 | y | 151 | 112 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-27 08:22:19 | 0.05 | y | 151 | 112 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-27 08:22:18 | 0.06 | y | 277 | 63 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-27 08:22:24 | -0.25 | y | 330 | 49 | |||
| IIEES | ASAO | E | Sg | E | 2014-08-27 08:23:09 | 0.26 | y | 330 | 49 | |||
| IIEES | GHVR | Z | Pn | E | 2014-08-27 08:22:36 | 0.21 | y | 419 | 59 | |||
| IIEES | GHVR | N | Sg | E | 2014-08-27 08:23:33 | -0.32 | y | 419 | 59 | |||
