Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2014-08-27 14:44:32.0 |
| Date & Time (Local) | 1393/6/5 19:14:32.0 |

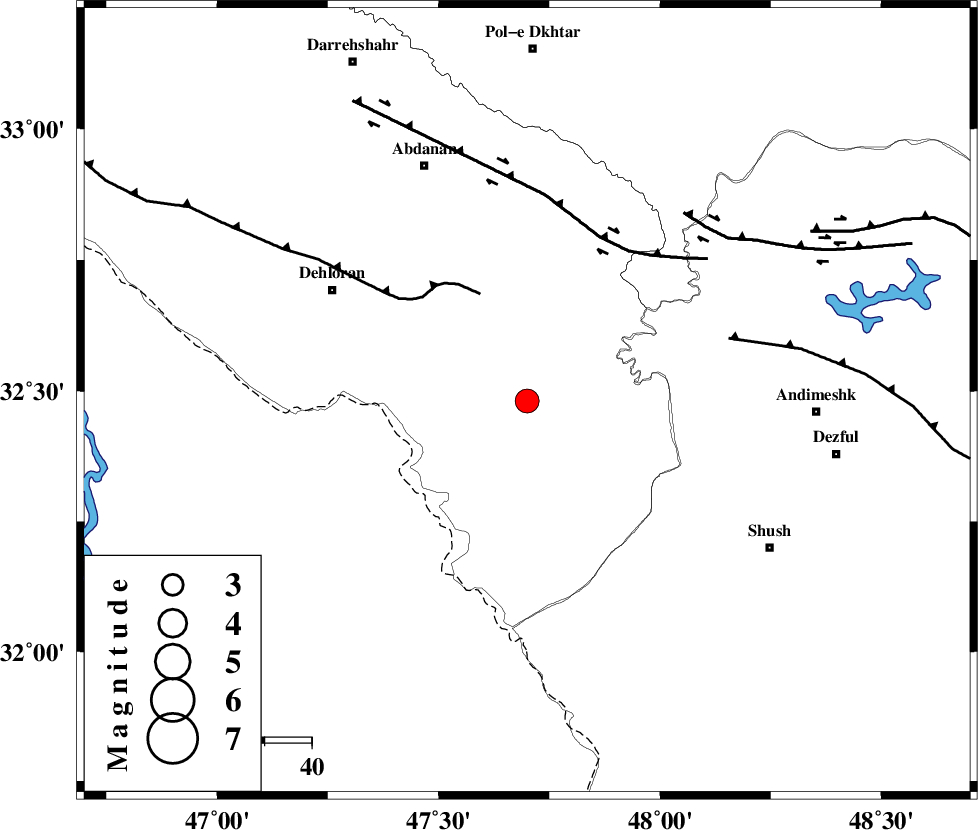

| Location | Lat:32.48 Lon: 47.7 |
| Region | Ilam Province, 47 km South-East of Dehloran |
Nearest Cities |
|
| 33 km East of Musian, Ilam Province | |
| 48 km South East of Dehloran, Ilam Province | |
| 48 km South East of Sarabbagh, Ilam Province | |
| 55 km South East of Abdanan, Ilam Province | |
| 56 km South West of Hoseinieh, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 25 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 38 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 45 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 5 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93349 | IIEES | SHGR | E | 935.3 | 0.48 | 2014-08-27 14:45:23 | 2014-08-27 04:14:00 | n |
| 93350 | IIEES | SHGR | N | 780.1 | 0.52 | 2014-08-27 14:45:30 | 2014-08-27 04:14:00 | n |
| 93351 | IIEES | AHRM | N | 47 | 0.52 | 2014-08-27 14:47:25 | 2014-08-27 04:14:00 | n |
| 93352 | IIEES | AHRM | E | 36.6 | 0.6 | 2014-08-27 14:47:37 | 2014-08-27 04:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-27 14:44:50 | 0.04 | y | 112 | 111 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-27 14:45:04 | -0.02 | y | 112 | 111 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-27 14:45:11 | 0.14 | y | 254 | 56 | |||
| IIEES | KHMZ | Z | Sg | E | 2014-08-27 14:45:43 | -0.06 | y | 254 | 56 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-27 14:45:18 | 0.03 | y | 316 | 43 | |||
| IIEES | GHVR | E | Sg | E | 2014-08-27 14:46:23 | 0.04 | y | 398 | 55 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-27 14:45:40 | -0.17 | y | 495 | 39 | |||
| IIEES | AHRM | Z | Pn | E | 2014-08-27 14:45:44 | -0.08 | y | 528 | 138 | |||
