Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2014-08-27 17:26:48.7 |
| Date & Time (Local) | 1393/6/5 21:56:48.7 |
| Location | Lat:32.11 Lon: 56.07 |
| Region | Yazd Province, 85 km North-East of Bafq |
Nearest Cities |
|
| 27 km North of Behabad, Yazd Province | |
| 42 km North of Benestan, Yazd Province | |
| 49 km North East of Kushk, Yazd Province | |
| 51 km North West of Asfih, Yazd Province | |
| 71 km North of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

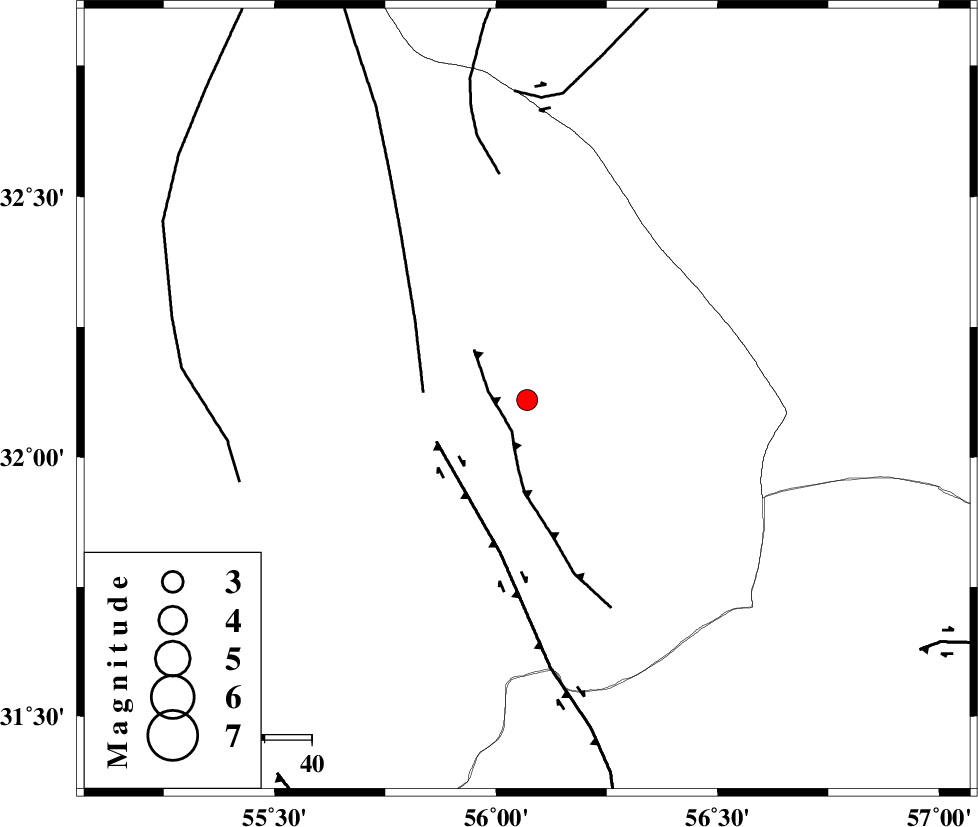

Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 6 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 21 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 22 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93360 | IIEES | KRBR | E | 64.3 | 0.48 | 2014-08-27 17:28:01 | 2014-08-27 06:45:00 | n |
| 93361 | IIEES | KRBR | N | 92.5 | 0.8 | 2014-08-27 17:28:03 | 2014-08-27 06:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2014-08-27 17:27:12 | 0 | y | 142 | 283 | |||
| IIEES | YZKH | E | Sg | E | 2014-08-27 17:27:29 | 0.02 | y | 142 | 283 | |||
| IIEES | TABS | Z | Pn | E | 2014-08-27 17:27:20 | -0.09 | y | 197 | 30 | |||
| IIEES | KRBR | Z | Pn | E | 2014-08-27 17:27:27 | 0.16 | y | 245 | 164 | |||
| IIEES | KRBR | N | Sg | E | 2014-08-27 17:27:58 | -0.09 | y | 245 | 164 | |||
