Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2014-08-31 14:44:32.9 |
| Date & Time (Local) | 1393/6/9 19:14:32.9 |

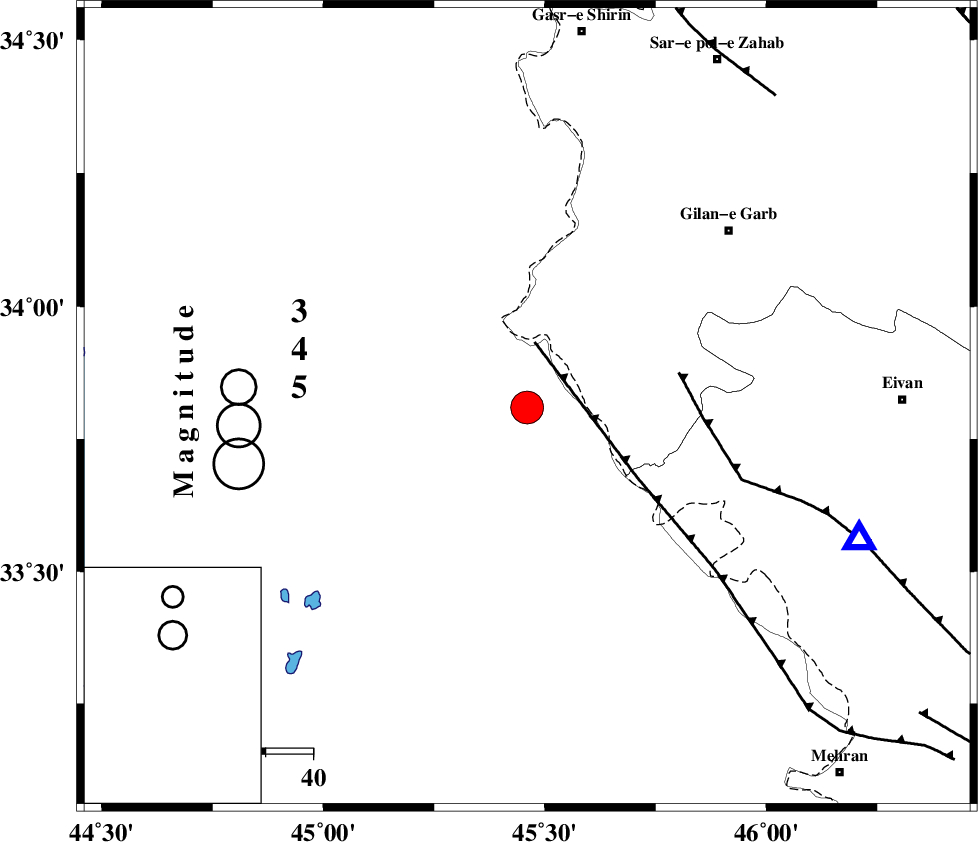

| Location | Lat:33.81 Lon: 45.46 |
| Region | Iraq, 56 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 18 km West of Sumar, Kermanshah Province | |
| 52 km South West of Nian, Kermanshah Province | |
| 56 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 63 km South West of Teran, Ilam Province | |
| 66 km South of Khosravi, Kermanshah Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 14 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 33 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 83 km | |
| Number of Phases | 21 |
| RMS | 0.2 |
| Number of Stations | 16 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93409 | IIEES | SHGR | N | 1659.8 | 0.6 | 2014-08-31 14:46:29 | 2014-08-31 04:48:00 | n |
| 93410 | IIEES | AHRM | N | 124.5 | 0.64 | 2014-08-31 14:48:19 | 2014-08-31 04:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2014-08-31 14:45:09 | -0.14 | y | 224 | 50 | |||
| IIEES | SNGE | N | Sg | E | 2014-08-31 14:45:36 | -0.16 | y | 224 | 50 | |||
| IIEES | SHGR | Z | Pn | E | 2014-08-31 14:45:25 | -0.16 | y | 365 | 120 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-31 14:46:15 | 0.23 | y | 365 | 120 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-31 14:45:32 | -0.11 | y | 418 | 90 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-31 14:45:33 | 0.09 | y | 429 | 78 | |||
| IIEES | ASAO | N | Sg | E | 2014-08-31 14:46:33 | 0.22 | y | 429 | 78 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-08-31 14:45:34 | 0.12 | y | 432 | 42 | |||
| IIEES | ZNJK | E | Sg | E | 2014-08-31 14:46:33 | 0.16 | y | 432 | 42 | |||
| IIEES | GHVR | Z | Pn | E | 2014-08-31 14:45:47 | 0.15 | y | 539 | 81 | |||
| IIEES | GHVR | N | Sg | E | 2014-08-31 14:47:02 | -0.28 | y | 539 | 81 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-31 14:45:50 | -0.21 | y | 568 | 64 | |||
| IIEES | GRMI | Z | Pn | E | 2014-08-31 14:45:54 | 0.16 | y | 596 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2014-08-31 14:45:57 | 0.13 | y | 619 | 354 | |||
| IIEES | DAMV | Z | Pn | E | 2014-08-31 14:45:58 | 0.11 | y | 630 | 70 | |||
| IIEES | AHRM | Z | Pn | E | 2014-08-31 14:46:17 | -0.2 | y | 781 | 133 | |||
| IIEES | YZKH | Z | Pn | E | 2014-08-31 14:46:28 | -0.07 | y | 867 | 98 | |||
| IIEES | KRBR | Z | Pn | E | 2014-08-31 14:47:03 | -0.13 | y | 1150 | 109 | |||
| IIEES | BNDS | Z | Pn | E | 2014-08-31 14:47:15 | -0.21 | y | 1248 | 122 | |||
| IIEES | BSRN | Z | Pn | E | 2014-08-31 14:47:21 | 0 | y | 1294 | 95 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-08-31 14:47:49 | -0.1 | y | 1523 | 104 | |||
