Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2014-09-04 15:30:50.0 |
| Date & Time (Local) | 1393/6/13 20:00:50.0 |

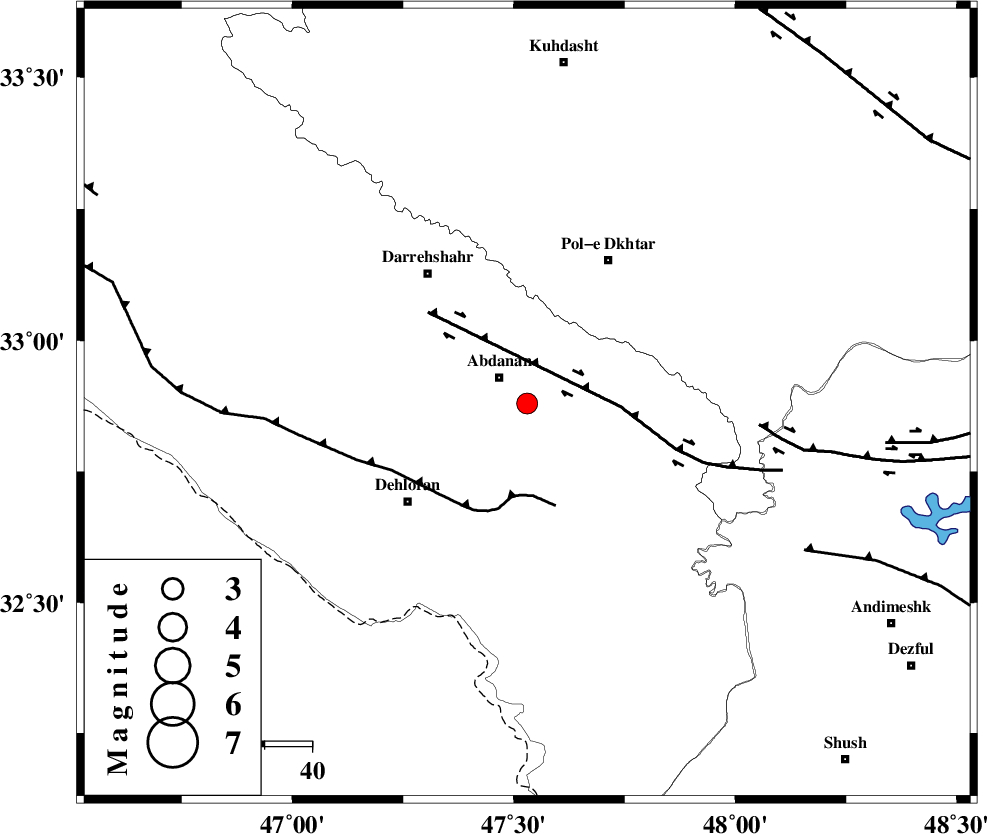

| Location | Lat:32.88 Lon: 47.53 |
| Region | Ilam Province, 8 km Abdanan |
Nearest Cities |
|
| 4 km of Sarabbagh, Ilam Province | |
| 8 km of Abdanan, Ilam Province | |
| 28 km South West of Sarab hammam, Lorestan Province | |
| 33 km North East of Dehloran, Ilam Province | |
| 35 km South East of Darreh Shahr, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 20 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 49 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93455 | IIEES | SHGR | E | 145.2 | 0.48 | 2014-09-04 15:31:34 | 2014-09-04 04:55:00 | n |
| 93456 | IIEES | AHRM | N | 14.4 | 0.08 | 2014-09-04 15:34:12 | 2014-09-04 04:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-09-04 15:31:14 | 0.12 | y | 147 | 125 | |||
| IIEES | SHGR | E | Sg | E | 2014-09-04 15:31:32 | 0.04 | y | 147 | 125 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-09-04 15:31:27 | -0.32 | y | 246 | 67 | |||
| IIEES | SNGE | Z | Pn | E | 2014-09-04 15:31:28 | 0.19 | y | 246 | 356 | |||
| IIEES | ASAO | Z | Pn | E | 2014-09-04 15:31:34 | -0.18 | y | 296 | 51 | |||
| IIEES | ASAO | E | Sg | E | 2014-09-04 15:32:13 | 0.14 | y | 296 | 51 | |||
