Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2014-09-04 17:35:13.6 |
| Date & Time (Local) | 1393/6/13 22:05:13.6 |

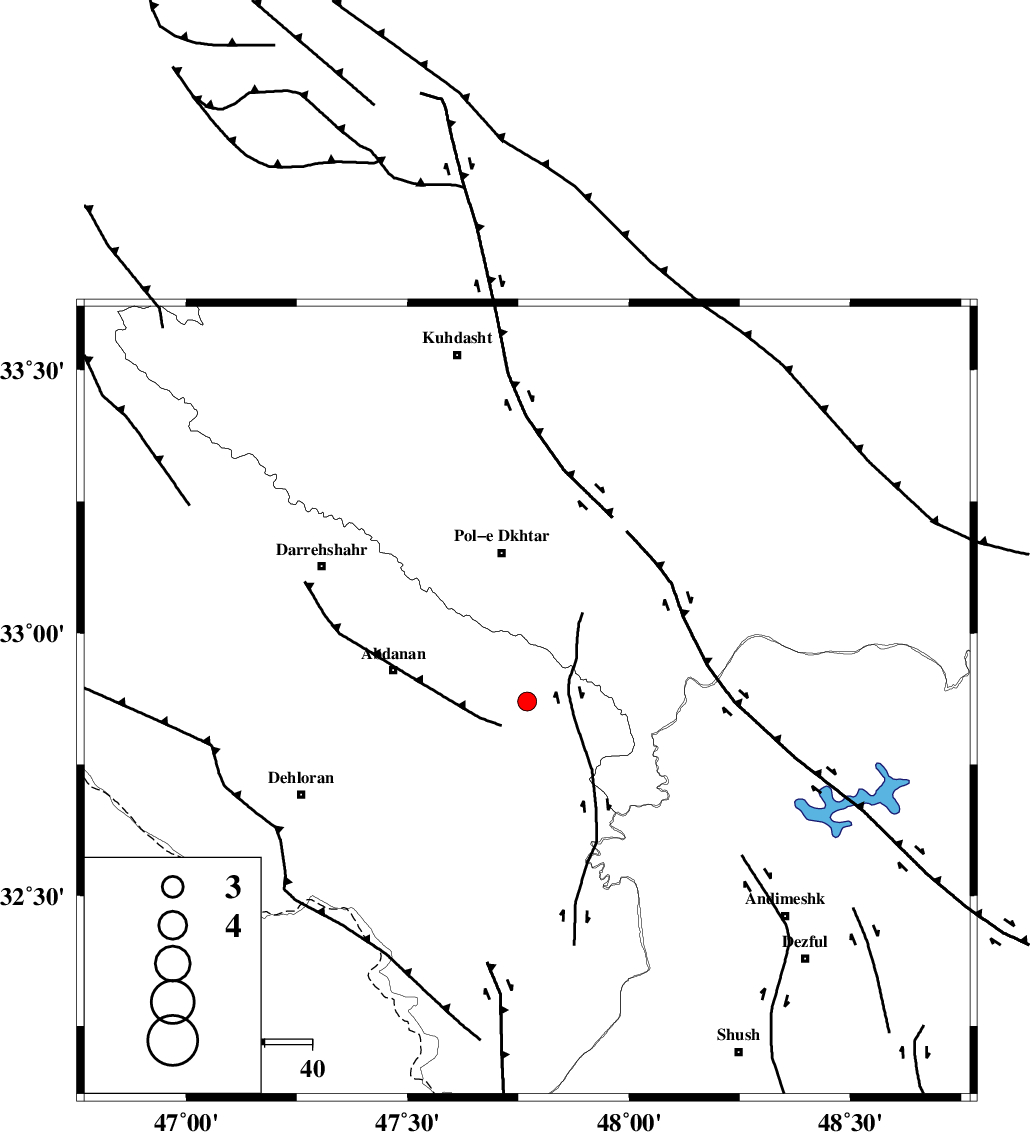

| Location | Lat:32.87 Lon: 47.77 |
| Region | Ilam Province, 32 km South of Pol-e dokhtar |
Nearest Cities |
|
| 19 km East of Sarabbagh, Ilam Province | |
| 26 km South of Sarab hammam, Lorestan Province | |
| 29 km East of Abdanan, Ilam Province | |
| 32 km South of Pol-e dokhtar, Lorestan Province | |
| 42 km South of Morani, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 3 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 26 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 27 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93459 | IIEES | SHGR | E | 153.9 | 0.32 | 2014-09-04 17:35:52 | 2014-09-04 06:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-09-04 17:35:34 | -0.32 | y | 128 | 131 | |||
| IIEES | SHGR | N | Sg | E | 2014-09-04 17:35:50 | 0.16 | y | 128 | 131 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-09-04 17:35:49 | 0.24 | y | 226 | 64 | |||
| IIEES | SNGE | Z | Pn | E | 2014-09-04 17:35:52 | 0.02 | y | 250 | 351 | |||
| IIEES | ASAO | Z | Pn | E | 2014-09-04 17:35:56 | 0.01 | y | 280 | 48 | |||
| IIEES | ASAO | N | Sg | E | 2014-09-04 17:36:32 | -0.12 | y | 280 | 48 | |||
