Event Specification
Magnitude |
4.4 |
| Date & Time (UTC) | 2014-09-07 08:12:55.9 |
| Date & Time (Local) | 1393/6/16 12:42:55.9 |

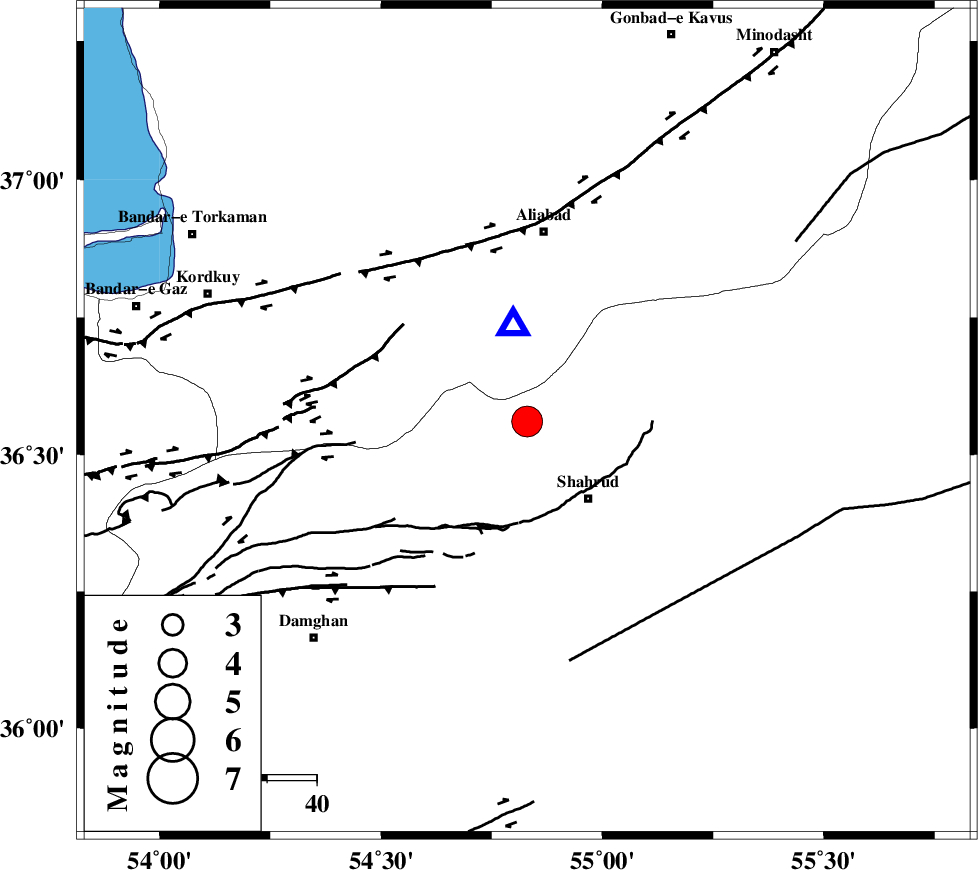

| Location | Lat:36.56 Lon: 54.83 |
| Region | Semnan Province, 19 km North-West of Shahrud |
Nearest Cities |
|
| 18 km North West of Bastam, Semnan Province | |
| 19 km North East of Majen, Semnan Province | |
| 20 km North West of Shahrud, Semnan Province | |
| 26 km West of Qaleh-ye nokharqan, Semnan Province | |
| 28 km North West of Ruyan, Semnan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 1 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 22 km | |
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 31 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >9.8 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93525 | IIEES | DAMV | E | 1232 | 0.63 | 2014-09-07 08:14:24 | 2014-09-07 09:57:00 | n |
| 93526 | IIEES | THKV | N | 598.5 | 0.57 | 2014-09-07 08:14:20 | 2014-09-07 09:57:00 | n |
| 93527 | IIEES | GHVR | E | 1319.8 | 0.92 | 2014-09-07 08:15:12 | 2014-09-07 09:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | E | Pg | E | 2014-09-07 08:13:16 | 0.06 | y | 122 | 119 | |||
| IIEES | DAMV | Z | Pn | E | 2014-09-07 08:13:38 | 0.53 | y | 277 | 249 | |||
| IIEES | DAMV | E | Sg | E | 2014-09-07 08:14:14 | -0.06 | y | 277 | 249 | |||
| IIEES | TABS | Z | Pn | E | 2014-09-07 08:13:51 | -0.03 | y | 384 | 146 | |||
| IIEES | YZKH | Z | Pn | E | 2014-09-07 08:14:00 | -0.29 | y | 463 | 183 | |||
| IIEES | ASAO | Z | Pn | E | 2014-09-07 08:14:04 | -0.44 | y | 489 | 244 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-09-07 08:14:11 | 0.49 | y | 542 | 236 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-09-07 08:14:11 | -0.46 | y | 550 | 273 | |||
