Systems
Event Specification

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 3.6
Date & Time (UTC) 2014-09-14 03:40:24.2
Date & Time (Local) 1393/6/23  08:10:24.2

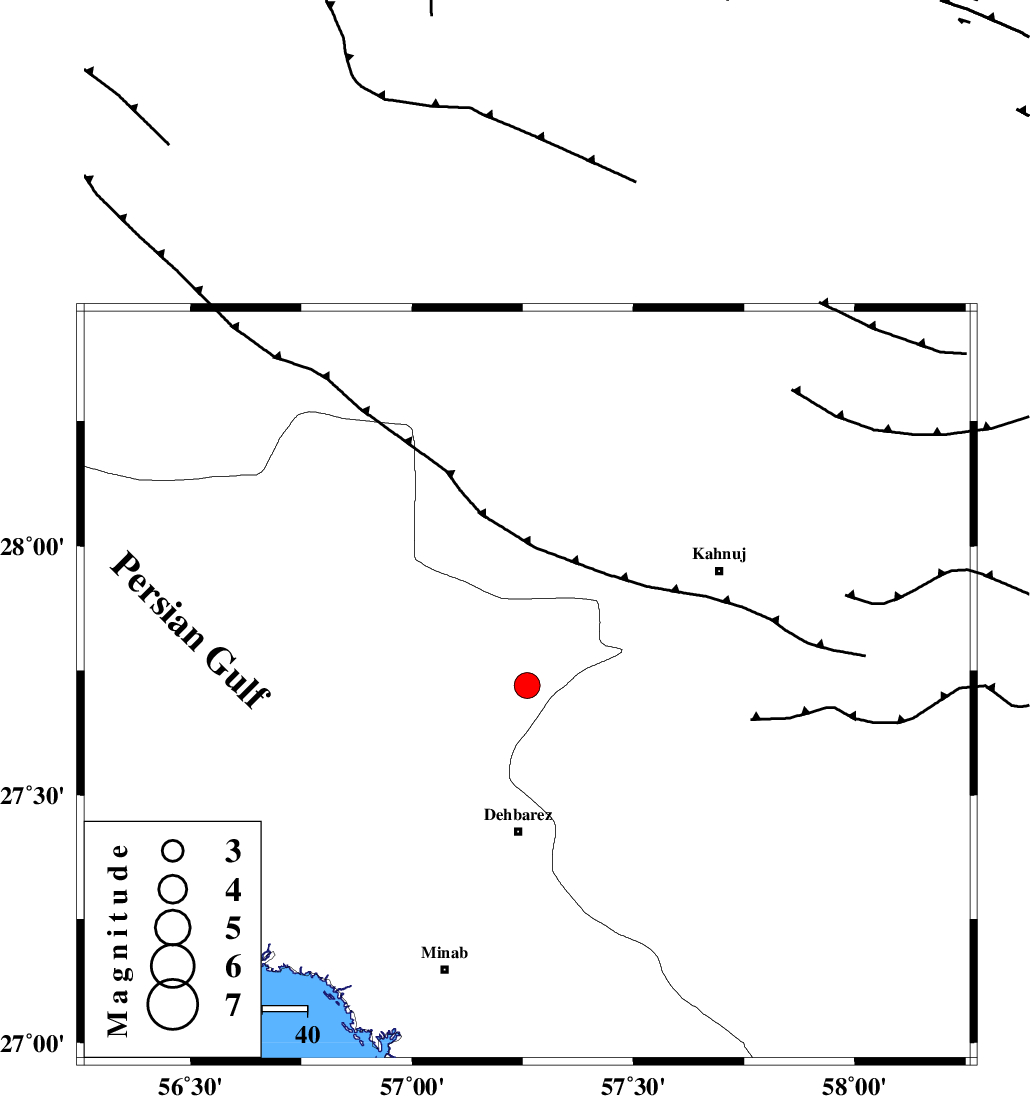

Location Lat:27.72 Lon: 57.26
Region Hormozgan Province, 32 km North of Dehbarez
Nearest Cities
4 km of Ziaratali, Hormozgan Province
11 km of Fariab, Hormozgan Province
24 km North West of Bejogan, Kerman Province
27 km North West of Nodezh, Kerman Province
32 km North of Balashahr, Hormozgan Province
Depth 14 km
Agency
Faults within 150 km:
ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 30 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 37 km
SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 41 km
Number of Phases 7
RMS 0.2
Number of Stations 5
Error in Latitude >2.7 km
Error in Longitude 4.7 km
Error in Depth 7.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
93536IIEESBNDSE 1917.80.352014-09-14 03:41:022014-09-14 05:01:00n
93537IIEESKRBRN 284.10.332014-09-14 03:41:382014-09-14 05:01:00n
93538IIEESKRBRE 286.20.452014-09-14 03:41:442014-09-14 05:01:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESBNDSZ Pg E2014-09-14 03:40:43-0.08y113252
IIEESBNDSN Sg E2014-09-14 03:40:570.09y113252
IIEESKRBRZ Pn E2014-09-14 03:41:040.1y256349
IIEESKRBRN Sg E2014-09-14 03:41:36-0.01y256349
IIEESZHSFZ Pn E2014-09-14 03:41:22-0.04y40358
IIEESYZKHZ Pn E2014-09-14 03:41:43-0.51y578334
IIEESTABSZ Pn E2014-09-14 03:41:540.46y658359
