Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-09-12 00:57:52.0 |
| Date & Time (Local) | 1393/6/21 05:27:52.0 |

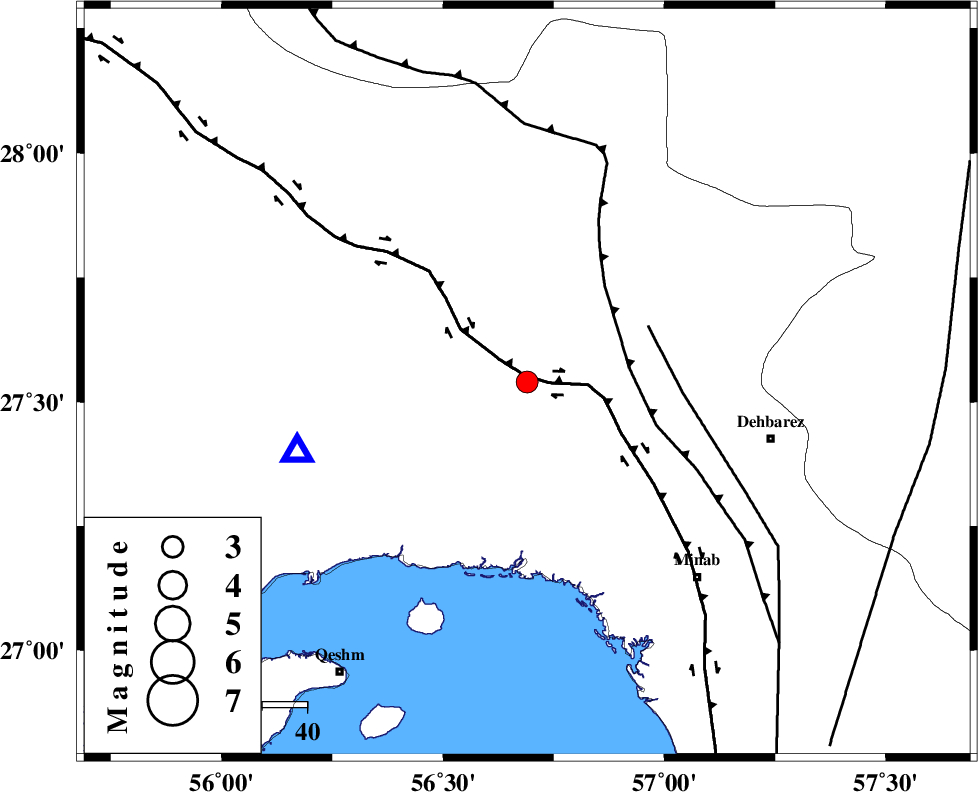

| Location | Lat:27.54 Lon: 56.69 |
| Region | Hormozgan Province, 56 km North-West of Dehbarez |
Nearest Cities |
|
| 52 km North West of Balashahr, Hormozgan Province | |
| 56 km North West of Dehbarez, Hormozgan Province | |
| 56 km North East of Bandar-e abbas, Hormozgan Province | |
| 57 km South West of Ziaratali, Hormozgan Province | |
| 58 km North West of Minab, Hormozgan Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 2 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 23 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 30 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93566 | IIEES | BNDS | N | 1054.5 | 0.48 | 2014-09-12 00:58:14 | 2014-09-14 07:54:00 | n |
| 93567 | IIEES | BNDS | E | 1026.2 | 0.44 | 2014-09-12 00:58:16 | 2014-09-14 07:54:00 | n |
| 93568 | IIEES | KRBR | N | 114.7 | 0.28 | 2014-09-12 00:59:09 | 2014-09-14 07:54:00 | n |
| 93569 | IIEES | KRBR | E | 120.2 | 0.29 | 2014-09-12 00:59:10 | 2014-09-14 07:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-09-12 00:58:02 | 0 | y | 53.4 | 253 | |||
| IIEES | KRBR | Z | Pn | E | 2014-09-12 00:58:32 | -0.26 | y | 271 | 1 | |||
| IIEES | GHIR | Z | Pn | E | 2014-09-12 00:58:44 | 0.07 | y | 373 | 284 | |||
| IIEES | CHBR | Z | Pn | E | 2014-09-12 00:58:52 | -0.06 | y | 435 | 119 | |||
| IIEES | BSRN | E | Pn | E | 2014-09-12 00:59:06 | 0.39 | y | 544 | 25 | |||
