Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2014-09-16 17:25:28.4 |
| Date & Time (Local) | 1393/6/25 21:55:28.4 |
| Location | Lat:30.24 Lon: 57.54 |
| Region | Kerman Province, 44 km East of Kerman |
Nearest Cities |
|
| 5 km North of Sirch, Kerman Province | |
| 17 km North of Jushan, Kerman Province | |
| 25 km South West of Shahdad, Kerman Province | |
| 32 km North East of Langar, Kerman Province | |
| 32 km North East of Mahan, Kerman Province | |
| Depth | 14 km |
| Agency | |

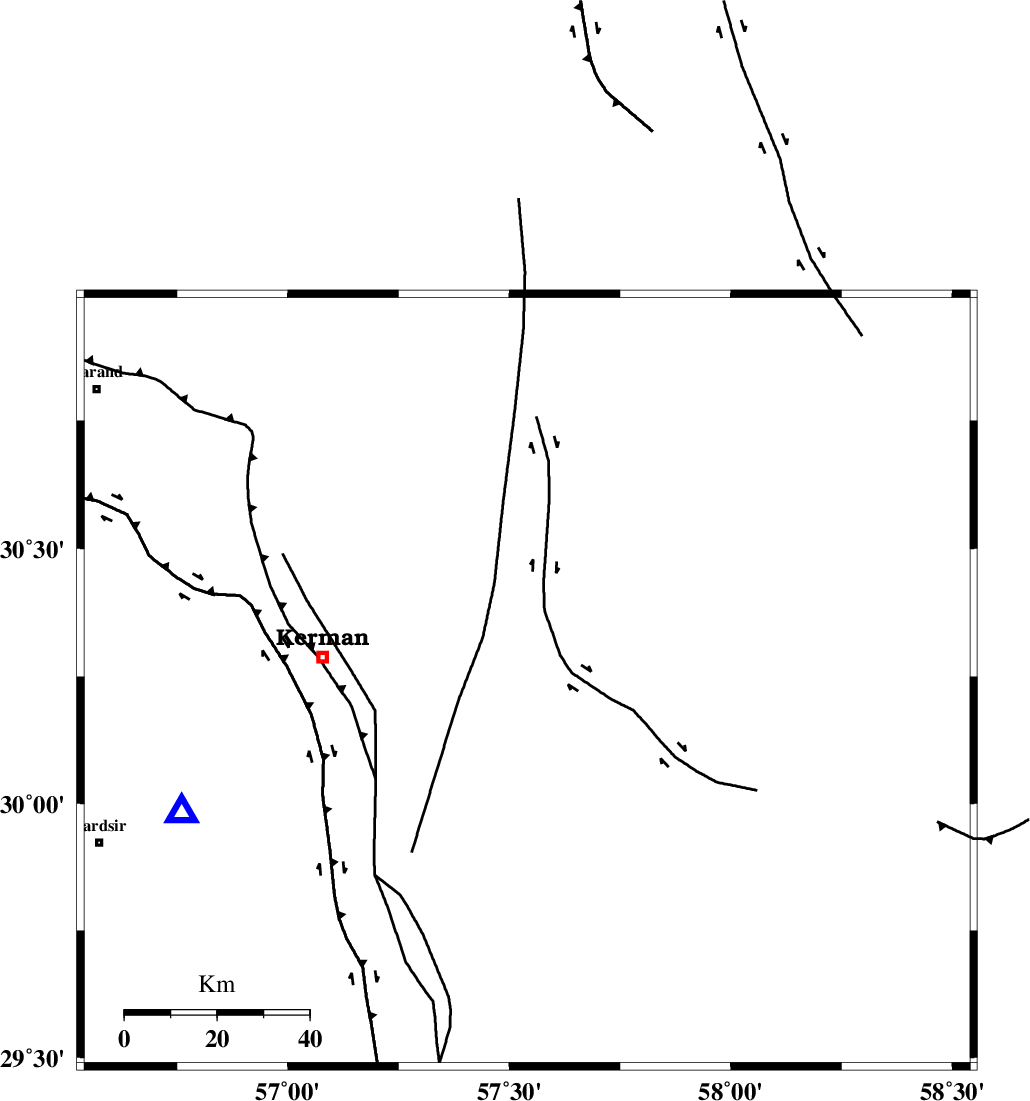

Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 8 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 18 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 20 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 4 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93606 | IIEES | KRBR | E | 12640.7 | 0.12 | 2014-09-16 17:25:52 | 2014-09-16 05:52:00 | n |
| 93607 | IIEES | KRBR | N | 13617.7 | 0.2 | 2014-09-16 17:25:53 | 2014-09-16 05:52:00 | n |
| 93608 | IIEES | YZKH | N | 379.6 | 0.4 | 2014-09-16 17:27:21 | 2014-09-16 05:52:00 | n |
| 93609 | IIEES | TABS | N | 443 | 0.56 | 2014-09-16 17:27:25 | 2014-09-16 05:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2014-09-16 17:25:42 | -0.17 | y | 80 | 250 | |||
| IIEES | KRBR | N | Sg | E | 2014-09-16 17:25:52 | -0.22 | y | 80 | 250 | |||
| IIEES | BSRN | Z | Pn | E | 2014-09-16 17:26:06 | -0.11 | y | 244 | 38 | |||
| IIEES | BSRN | N | Sg | E | 2014-09-16 17:26:37 | -0.14 | y | 244 | 38 | |||
| IIEES | BNDS | Z | Pn | E | 2014-09-16 17:26:18 | 0.25 | y | 341 | 203 | |||
| IIEES | YZKH | Z | Pn | E | 2014-09-16 17:26:22 | 0.52 | y | 368 | 311 | |||
| IIEES | TABS | Z | Pn | E | 2014-09-16 17:26:23 | -0.01 | y | 381 | 354 | |||
