Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2014-09-24 05:21:58.5 |
| Date & Time (Local) | 1393/7/2 08:51:58.5 |

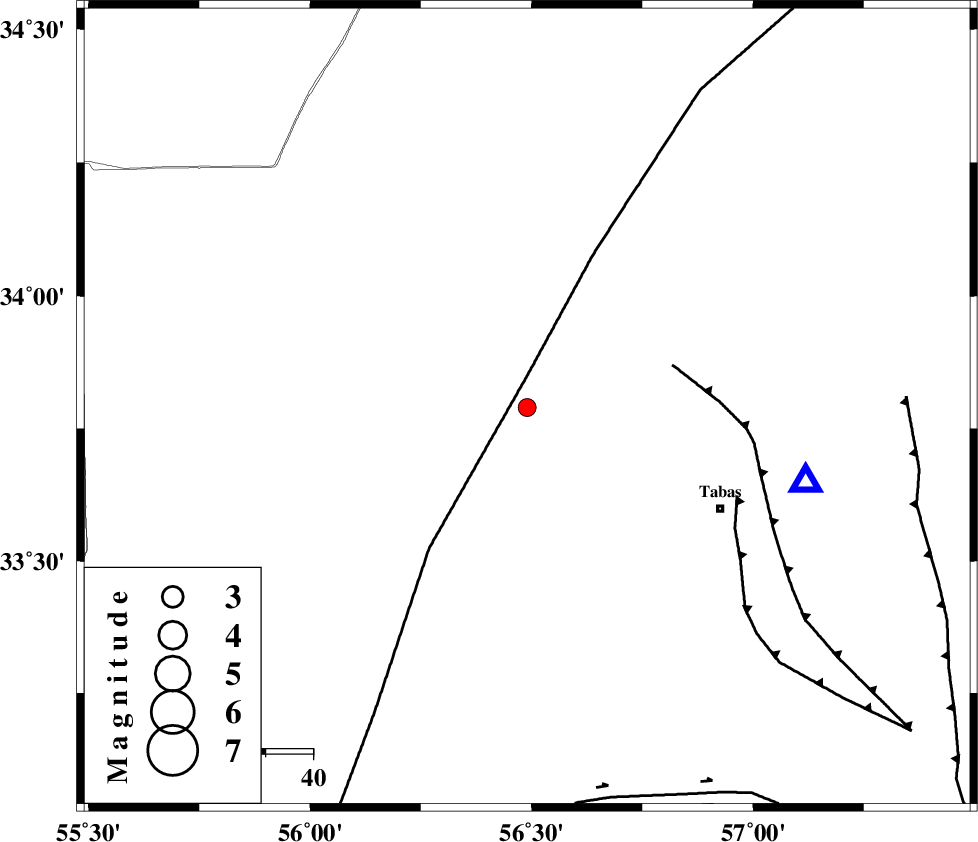

| Location | Lat:33.79 Lon: 56.49 |
| Region | Yazd Province, 45 km North-West of Tabas |
Nearest Cities |
|
| 26 km South East of Halvan, Yazd Province | |
| 28 km North West of Jokhvah, Yazd Province | |
| 42 km North East of Darin, Yazd Province | |
| 46 km North West of Tabas, Yazd Province | |
| 47 km North West of Oshtoqran, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 7 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 32 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 48 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >6.8 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93681 | IIEES | YZKH | N | 39.2 | 0.49 | 2014-09-24 05:23:13 | 2014-09-24 05:57:00 | n |
| 93682 | IIEES | YZKH | E | 35.4 | 0.49 | 2014-09-24 05:23:18 | 2014-09-24 05:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2014-09-24 05:22:09 | -0.11 | y | 60 | 105 | |||
| IIEES | TABS | E | Sg | E | 2014-09-24 05:22:17 | 0.15 | y | 60 | 105 | |||
| IIEES | YZKH | Z | Pn | E | 2014-09-24 05:22:35 | 0.15 | y | 236 | 229 | |||
| IIEES | YZKH | E | Sg | E | 2014-09-24 05:23:05 | -0.04 | y | 236 | 229 | |||
| IIEES | BSRN | Z | Pn | E | 2014-09-24 05:22:45 | -0.16 | y | 319 | 129 | |||
| IIEES | SHRT | N | Sg | E | 2014-09-24 05:23:37 | 0 | y | 352 | 92 | |||
