Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-10-09 18:05:33.9 |
| Date & Time (Local) | 1393/7/17 21:35:33.9 |
| Location | Lat:32.64 Lon: 47.92 |
| Region | Ilam Province, 45 km North-West of Andimeshk |
Nearest Cities |
|
| 31 km West of Hoseinieh, Khoozestan Province | |
| 32 km South West of Bidruyeh, Khoozestan Province | |
| 41 km South West of Sorkhakan, Khoozestan Province | |
| 44 km South East of Sarabbagh, Ilam Province | |
| 45 km North West of Andimeshk, Khoozestan Province | |
| Depth | 18 km |
| Agency | |

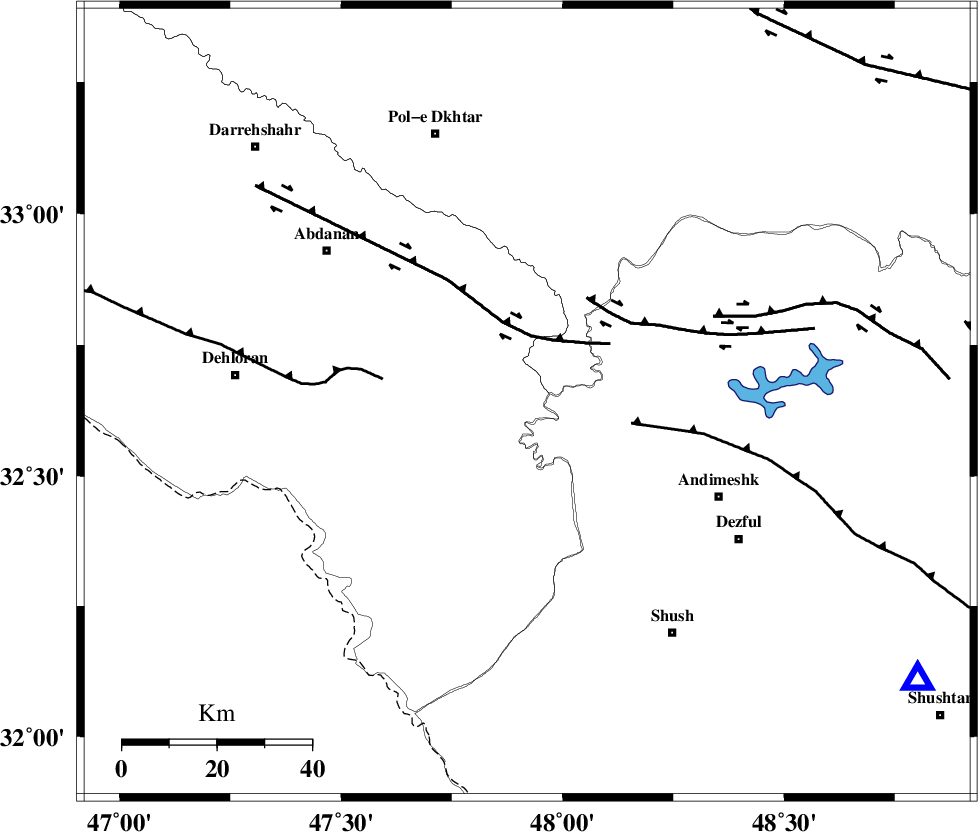

Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 14 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 26 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 9.4 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93831 | IIEES | SHGR | N | 407.9 | 0.68 | 2014-10-09 18:06:30 | 2014-10-11 03:25:00 | n |
| 93832 | IIEES | SHGR | E | 641.5 | 0.6 | 2014-10-09 18:06:36 | 2014-10-11 03:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-09 18:05:51 | 0.04 | y | 102 | 125 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-09 18:06:09 | -0.13 | y | 226 | 57 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-09 18:06:38 | -0.04 | y | 226 | 57 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-09 18:06:17 | 0.07 | y | 288 | 42 | |||
| IIEES | ASAO | E | Sg | E | 2014-10-09 18:06:55 | 0.07 | y | 288 | 42 | |||
