Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2014-10-10 22:47:32.9 |
| Date & Time (Local) | 1393/7/19 02:17:32.9 |

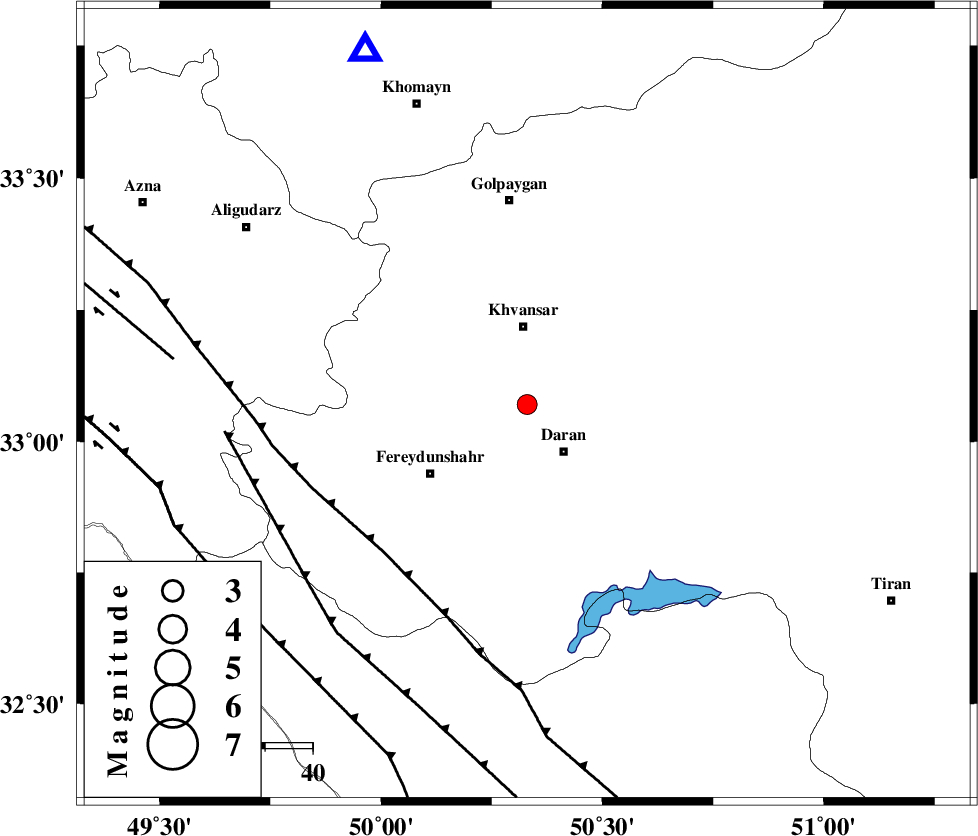

| Location | Lat:33.07 Lon: 50.33 |
| Region | Esfahan Province, 16 km South of Khvansar |
Nearest Cities |
|
| 9 km North of Nahr-e khalaj, Esfahan Province | |
| 13 km North of Daran, Esfahan Province | |
| 14 km East of Qarebeltaq, Esfahan Province | |
| 15 km North of Safanjan, Esfahan Province | |
| 16 km East of Buien-va-miandasht, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 43 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 60 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 73 km | |
| Number of Phases | 12 |
| RMS | 0.7 |
| Number of Stations | 7 |
| Error in Latitude | >6.2 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 13.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93837 | IIEES | KHMZ | E | 419 | 0.16 | 2014-10-10 22:47:59 | 2014-10-11 03:04:00 | n |
| 93838 | IIEES | ASAO | N | 123.3 | 0.49 | 2014-10-10 22:48:30 | 2014-10-11 03:04:00 | n |
| 93839 | IIEES | GHVR | E | 134.4 | 0.4 | 2014-10-10 22:48:31 | 2014-10-11 03:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2014-10-10 22:47:46 | -0.77 | y | 81.8 | 335 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-10 22:47:57 | -0.07 | y | 81.8 | 335 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-10 22:48:00 | -0.96 | y | 166 | 350 | |||
| IIEES | ASAO | N | Sg | E | 2014-10-10 22:48:20 | 0.01 | y | 166 | 350 | |||
| IIEES | GHVR | Z | Pn | E | 2014-10-10 22:48:01 | -1.1 | y | 178 | 28 | |||
| IIEES | GHVR | E | Sg | E | 2014-10-10 22:48:24 | 0.9 | y | 178 | 28 | |||
| IIEES | SHGR | Z | Pn | E | 2014-10-10 22:48:03 | 0.76 | y | 179 | 234 | |||
| IIEES | DAMV | Z | Pn | E | 2014-10-10 22:48:21 | 0.67 | y | 321 | 27 | |||
| IIEES | CHTH | Z | Pn | E | 2014-10-10 22:48:21 | 0.96 | y | 323 | 13 | |||
| IIEES | CHTH | E | Sg | E | 2014-10-10 22:49:03 | 0.04 | y | 323 | 13 | |||
| IIEES | YZKH | Z | Pn | E | 2014-10-10 22:48:31 | 0.3 | y | 406 | 100 | |||
| IIEES | YZKH | N | Sg | E | 2014-10-10 22:49:25 | -0.69 | y | 406 | 100 | |||
