Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2014-10-12 05:43:04.8 |
| Date & Time (Local) | 1393/7/20 09:13:04.8 |

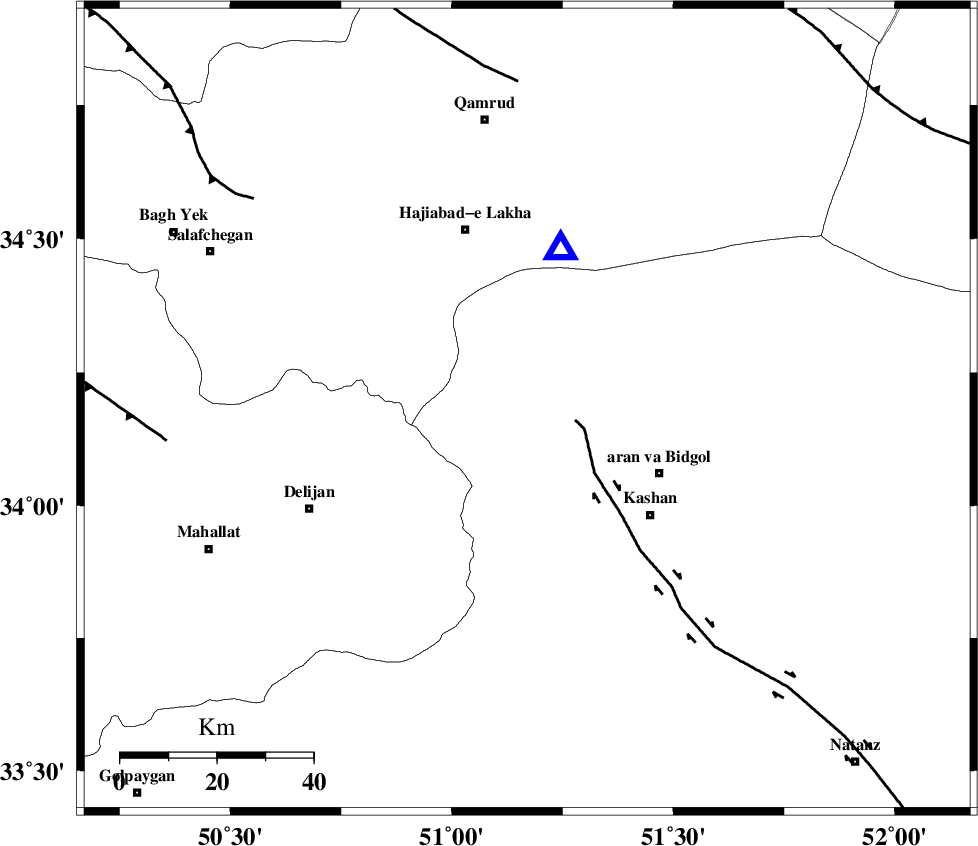

| Location | Lat:34.18 Lon: 51.17 |
| Region | Esfahan Province, 31 km North-West of Aran va bidgol |
Nearest Cities |
|
| 8 km North of Mashgan, Esfahan Province | |
| 12 km North East of Armak, Esfahan Province | |
| 15 km East of Yahyaabad, Esfahan Province | |
| 17 km North West of Nasrabad, Esfahan Province | |
| 18 km North of Astarak, Esfahan Province | |
| Depth | 24 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 10 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 53 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 68 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93851 | IIEES | GHVR | E | 9330.1 | 0.5 | 2014-10-12 05:43:18 | 2014-10-12 06:38:00 | n |
| 93852 | IIEES | THKV | N | 1361.5 | 0.36 | 2014-10-12 05:44:02 | 2014-10-12 06:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2014-10-12 05:43:12 | 0.13 | y | 34.1 | 12 | |||
| IIEES | ASAO | Z | Pg | E | 2014-10-12 05:43:24 | 0.35 | y | 113 | 292 | |||
| IIEES | KHMZ | Z | Pg | E | 2014-10-12 05:43:25 | 0.05 | y | 121 | 247 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-12 05:43:39 | -0.17 | y | 121 | 247 | |||
| IIEES | DAMV | Z | Pg | E | 2014-10-12 05:43:33 | -0.35 | y | 177 | 24 | |||
| IIEES | CHTH | Z | Pg | E | 2014-10-12 05:43:36 | 0.2 | y | 192 | 359 | |||
| IIEES | THKV | Z | Pg | E | 2014-10-12 05:43:35 | -0.34 | y | 194 | 352 | |||
| IIEES | THKV | N | Sg | E | 2014-10-12 05:43:59 | 0.02 | y | 194 | 352 | |||
| IIEES | YZKH | Z | Pn | E | 2014-10-12 05:43:58 | 0.36 | y | 376 | 121 | |||
| IIEES | TABS | Z | Pn | E | 2014-10-12 05:44:20 | 0.36 | y | 554 | 94 | |||
| IIEES | GHIR | Z | Pn | E | 2014-10-12 05:44:35 | -0.47 | y | 676 | 165 | |||
| IIEES | BSRN | Z | Pn | E | 2014-10-12 05:44:48 | -0.53 | y | 782 | 106 | |||
| IIEES | SHRT | Z | Pn | E | 2014-10-12 05:44:56 | 0.02 | y | 846 | 91 | |||
