Event Specification

Magnitude |
3.3 |
Date & Time (UTC) | 2014-10-15 22:46:30.9 |
Date & Time (Local) | 1393/7/24 02:16:30.9 |

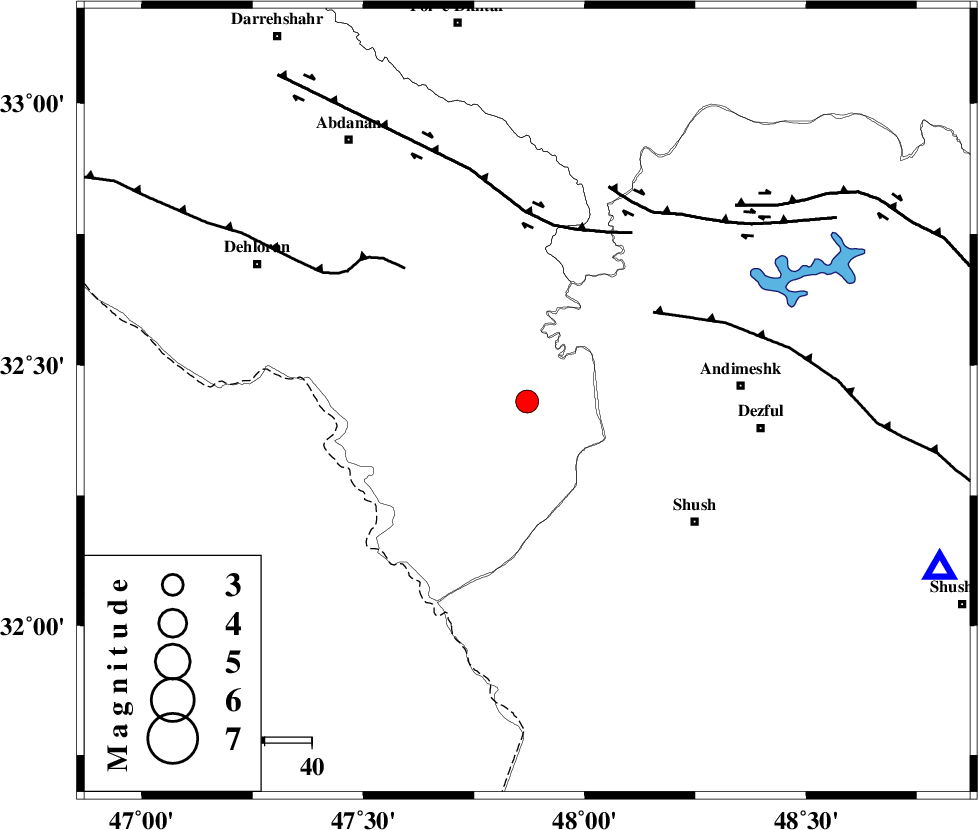

Location | Lat:32.43 Lon: 47.87 |
Region | Ilam Province, 46 km West of Andimeshk |
Nearest Cities |
|
44 km North West of Shush, Khoozestan Province | |
45 km South West of Hoseinieh, Khoozestan Province | |
45 km West of Andimeshk, Khoozestan Province | |
48 km North West of Amaleh teimur, Khoozestan Province | |
50 km South East of Musian, Ilam Province | |
Depth | 18 km |
Agency | |
Faults within 150 km: |
|
DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 38 km | |
MFF6 (Length: 144 km) , Distance to epicenter: 38 km | |
Number of Phases | 7 |
RMS | 0 |
Number of Stations | 5 |
Error in Latitude | >2.7 km |
Error in Longitude | 1.7 km |
Error in Depth | 2.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
93942 | IIEES | AHRM | E | 23.9 | 0.6 | 2014-10-15 22:48:36 | 2014-10-16 03:46:00 | n |
Phase | ||||||||||||
Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
IIEES | KHMZ | Z | Pn | E | 2014-10-15 22:47:08 | 0.06 | y | 244 | 53 | |||
IIEES | KHMZ | E | Sg | E | 2014-10-15 22:47:39 | 0.01 | y | 244 | 53 | |||
IIEES | SNGE | Z | Pn | E | 2014-10-15 22:47:15 | -0.02 | y | 299 | 351 | |||
IIEES | SNGE | N | Sg | E | 2014-10-15 22:47:55 | -0.01 | y | 299 | 351 | |||
IIEES | ASAO | Z | Pn | E | 2014-10-15 22:47:16 | 0.02 | y | 309 | 40 | |||
IIEES | GHVR | Z | Pn | E | 2014-10-15 22:47:26 | 0.03 | y | 388 | 53 | |||
IIEES | GHVR | E | S | E | 2014-10-15 22:48:06 | -0.1 | y | 388 | 53 |
