Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-10-17 07:05:43.1 |
| Date & Time (Local) | 1393/7/25 10:35:43.1 |

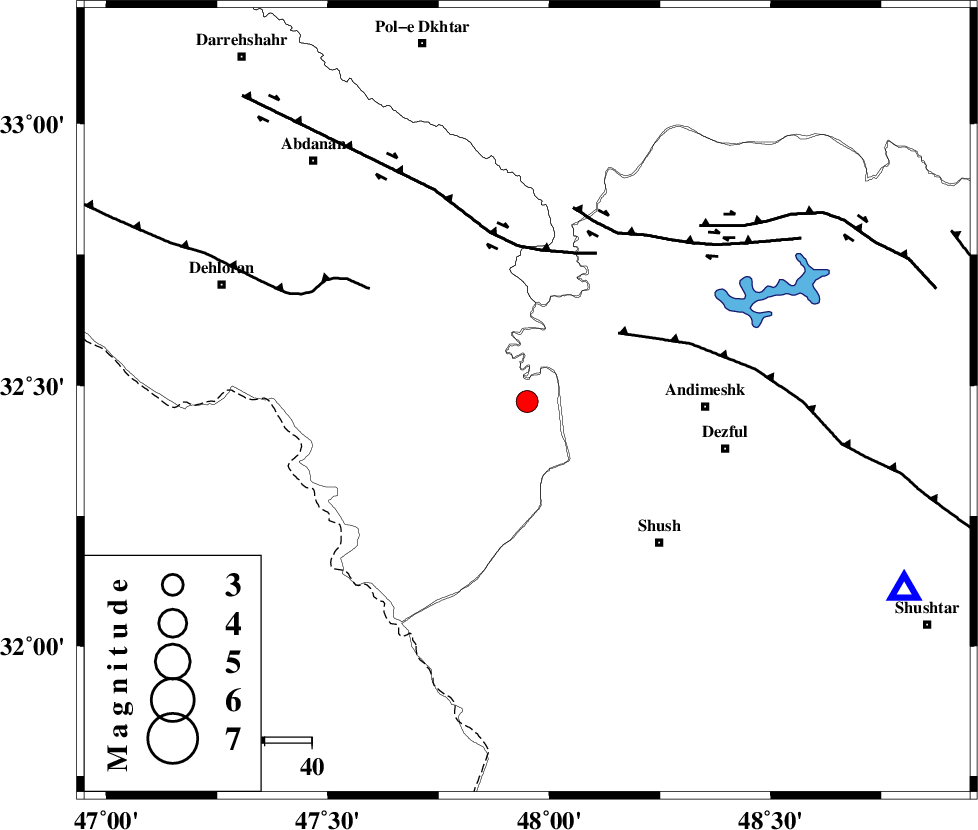

| Location | Lat:32.47 Lon: 47.95 |
| Region | Ilam Province, 38 km West of Andimeshk |
Nearest Cities |
|
| 36 km South West of Hoseinieh, Khoozestan Province | |
| 38 km North West of Andimeshk, Khoozestan Province | |
| 41 km North West of Shush, Khoozestan Province | |
| 42 km South West of Bidruyeh, Khoozestan Province | |
| 43 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 24 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 32 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 41 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >7 km |
| Error in Longitude | 6.8 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93960 | IIEES | SNGE | N | 79.4 | 0.52 | 2014-10-17 07:07:14 | 2014-10-17 07:26:00 | n |
| 93961 | IIEES | GHVR | N | 38.2 | 0.64 | 2014-10-17 07:07:40 | 2014-10-17 07:26:00 | n |
| 93962 | IIEES | GHVR | E | 33.6 | 0.68 | 2014-10-17 07:07:46 | 2014-10-17 07:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2014-10-17 07:06:21 | -0.01 | y | 235 | 53 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-17 07:06:27 | 0 | y | 296 | 349 | |||
| IIEES | SNGE | N | Sg | E | 2014-10-17 07:07:06 | 0.01 | y | 296 | 349 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-17 07:06:28 | -0.07 | y | 300 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2014-10-17 07:06:38 | 0.08 | y | 379 | 53 | |||
