Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2014-10-18 15:27:24.7 |
| Date & Time (Local) | 1393/7/26 18:57:24.7 |

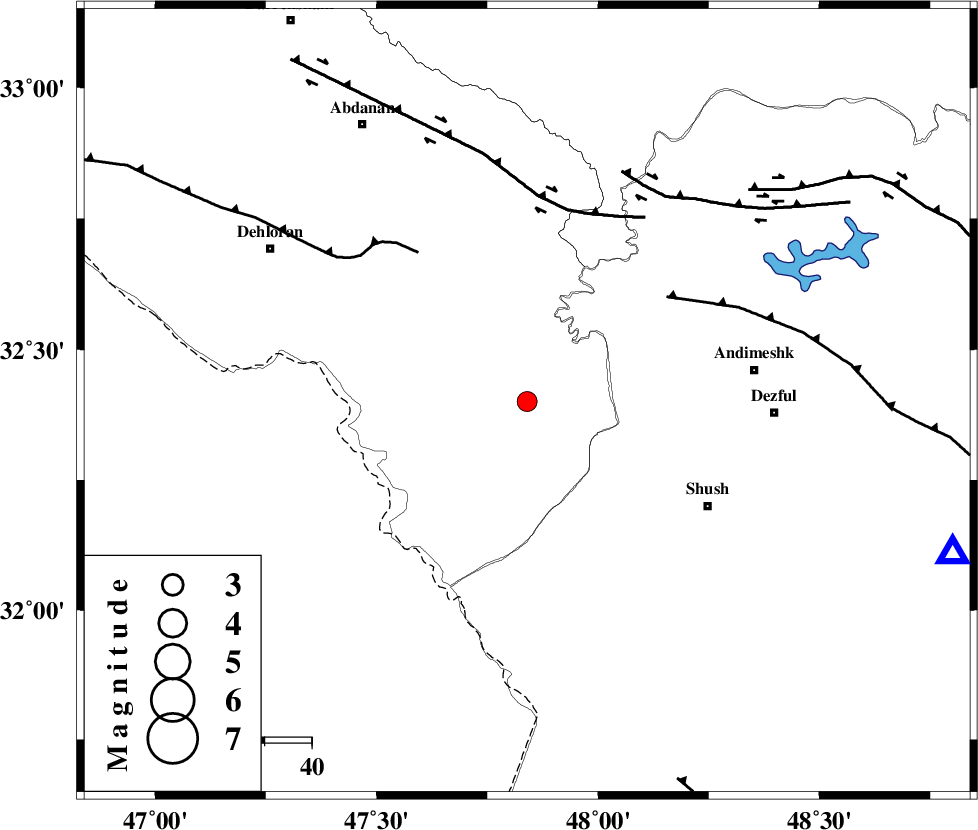

| Location | Lat:32.4 Lon: 47.84 |
| Region | Ilam Province, 48 km West of Andimeshk |
Nearest Cities |
|
| 44 km North West of Shush, Khoozestan Province | |
| 48 km South East of Musian, Ilam Province | |
| 48 km North West of Amaleh teimur, Khoozestan Province | |
| 49 km West of Andimeshk, Khoozestan Province | |
| 49 km South West of Hoseinieh, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 37 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 39 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 42 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93989 | IIEES | SHGR | N | 331.4 | 0.5 | 2014-10-18 15:28:03 | 2014-10-19 11:25:00 | n |
| 93990 | IIEES | SHGR | E | 364.6 | 0.57 | 2014-10-18 15:28:18 | 2014-10-19 11:25:00 | n |
| 93991 | IIEES | ASAO | E | 36.1 | 0.64 | 2014-10-18 15:28:58 | 2014-10-19 11:25:00 | n |
| 93992 | IIEES | ASAO | N | 32 | 0.56 | 2014-10-18 15:28:58 | 2014-10-19 11:25:00 | n |
| 93993 | IIEES | GHVR | N | 15.4 | 0.52 | 2014-10-18 15:29:16 | 2014-10-19 11:25:00 | n |
| 93994 | IIEES | GHVR | E | 16.7 | 0.45 | 2014-10-18 15:29:22 | 2014-10-19 11:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-18 15:27:40 | -0.04 | y | 95.9 | 109 | |||
| IIEES | SHGR | E | Sg | E | 2014-10-18 15:27:52 | 0.03 | y | 95.9 | 109 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-18 15:28:03 | 0.2 | y | 248 | 53 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-18 15:28:09 | 0.05 | y | 303 | 351 | |||
| IIEES | SNGE | N | Sg | E | 2014-10-18 15:28:49 | 0.01 | y | 303 | 351 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-18 15:28:10 | -0.15 | y | 313 | 40 | |||
| IIEES | GHVR | Z | Pn | E | 2014-10-18 15:28:20 | -0.13 | y | 392 | 53 | |||
