Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2014-10-18 15:56:06.7 |
| Date & Time (Local) | 1393/7/26 19:26:06.7 |

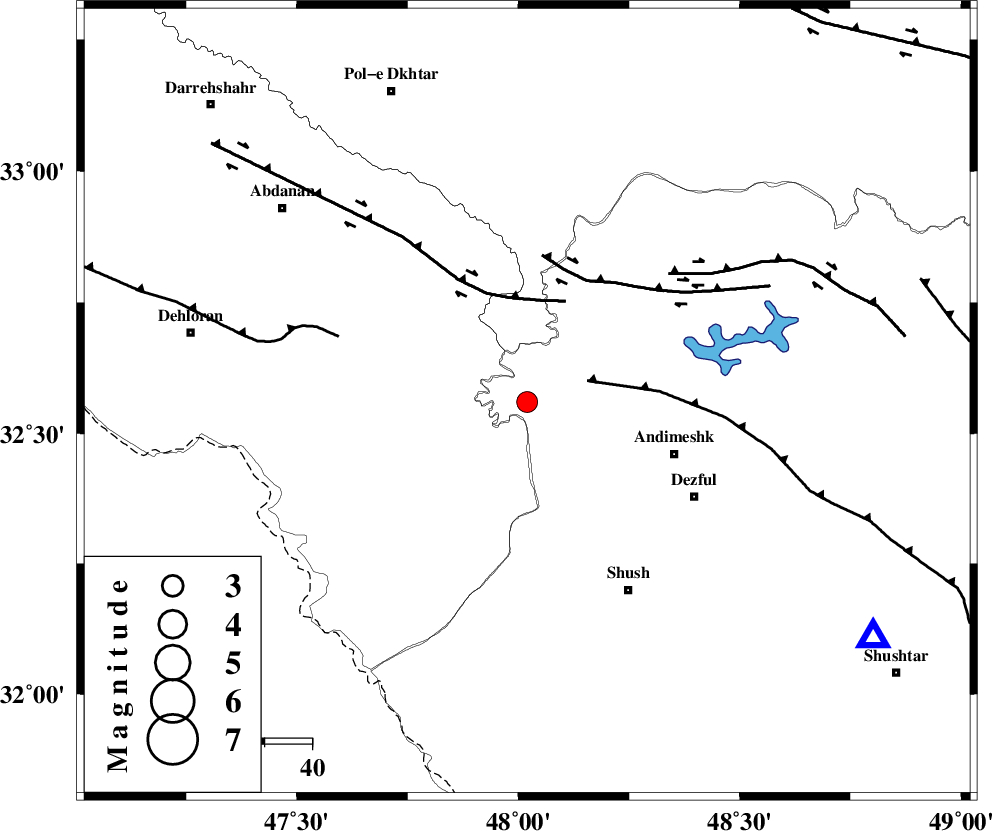

| Location | Lat:32.56 Lon: 48.02 |
| Region | Khoozestan Province, 33 km West of Andimeshk |
Nearest Cities |
|
| 25 km South West of Hoseinieh, Khoozestan Province | |
| 30 km South West of Bidruyeh, Khoozestan Province | |
| 33 km North West of Andimeshk, Khoozestan Province | |
| 37 km South West of Sorkhakan, Khoozestan Province | |
| 41 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 13 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 29 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93995 | IIEES | SNGE | N | 50.2 | 0.92 | 2014-10-18 15:57:39 | 2014-10-19 11:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-18 15:56:21 | -0.05 | y | 88.6 | 124 | |||
| IIEES | SHGR | N | Sg | E | 2014-10-18 15:56:32 | -0.05 | y | 88.6 | 124 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-18 15:56:42 | -0.04 | y | 224 | 54 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-18 15:56:50 | 0.09 | y | 288 | 348 | |||
| IIEES | SNGE | N | Sg | E | 2014-10-18 15:57:27 | -0.15 | y | 288 | 348 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-18 15:56:50 | 0.16 | y | 289 | 40 | |||
| IIEES | GHVR | Z | Pn | E | 2014-10-18 15:57:00 | -0.06 | y | 367 | 54 | |||
| IIEES | DAMV | Z | Pn | E | 2014-10-18 15:57:16 | 0.14 | y | 499 | 46 | |||
