Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2014-10-18 16:04:39.8 |
| Date & Time (Local) | 1393/7/26 19:34:39.8 |

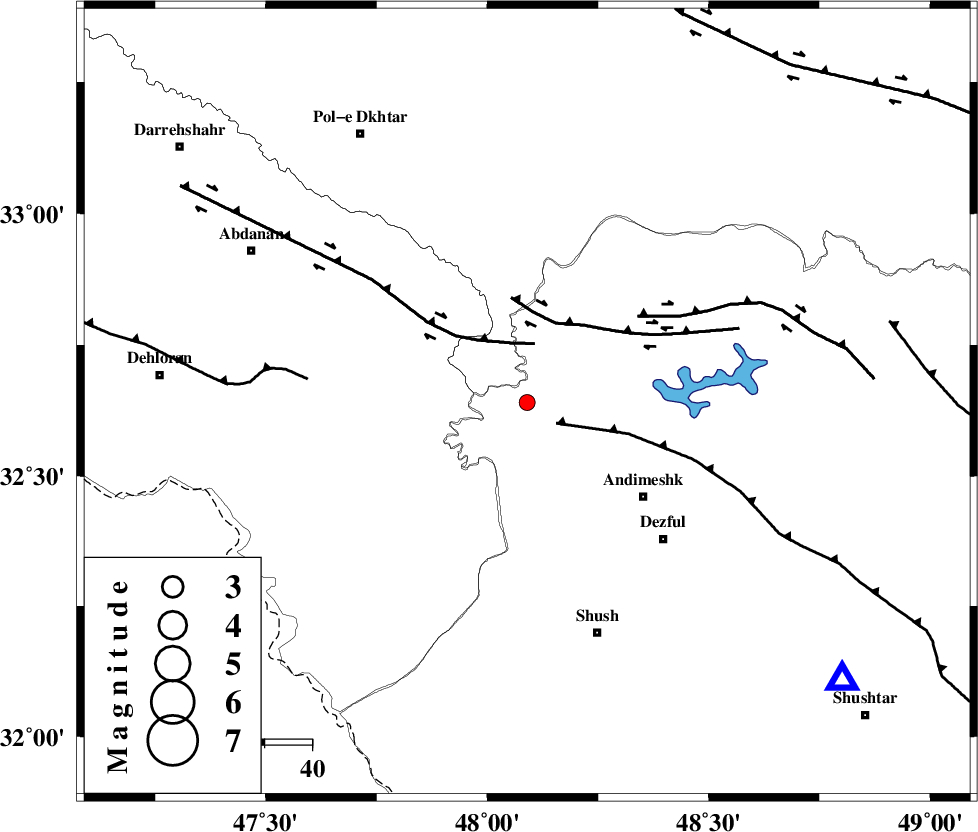

| Location | Lat:32.64 Lon: 48.09 |
| Region | Khoozestan Province, 32 km North-West of Andimeshk |
Nearest Cities |
|
| 15 km West of Hoseinieh, Khoozestan Province | |
| 19 km South West of Bidruyeh, Khoozestan Province | |
| 27 km South West of Sorkhakan, Khoozestan Province | |
| 32 km North West of Andimeshk, Khoozestan Province | |
| 41 km North West of Dezful, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 7 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 13 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 18 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93996 | IIEES | SHGR | N | 90.3 | 0.44 | 2014-10-18 16:05:15 | 2014-10-19 11:25:00 | n |
| 93997 | IIEES | ASAO | N | 14.6 | 0.85 | 2014-10-18 16:06:04 | 2014-10-19 11:25:00 | n |
| 93998 | IIEES | SNGE | N | 13.3 | 0.71 | 2014-10-18 16:06:02 | 2014-10-19 11:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-18 16:04:55 | 0.25 | y | 89.7 | 131 | |||
| IIEES | SHGR | N | Sg | E | 2014-10-18 16:05:06 | -0.2 | y | 89.7 | 131 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-18 16:05:13 | -0.08 | y | 213 | 55 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-18 16:05:40 | 0.06 | y | 213 | 55 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-18 16:05:21 | -0.08 | y | 278 | 40 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-18 16:05:22 | 0.05 | y | 280 | 346 | |||
