Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2014-10-18 18:40:55.5 |
| Date & Time (Local) | 1393/7/26 22:10:55.5 |

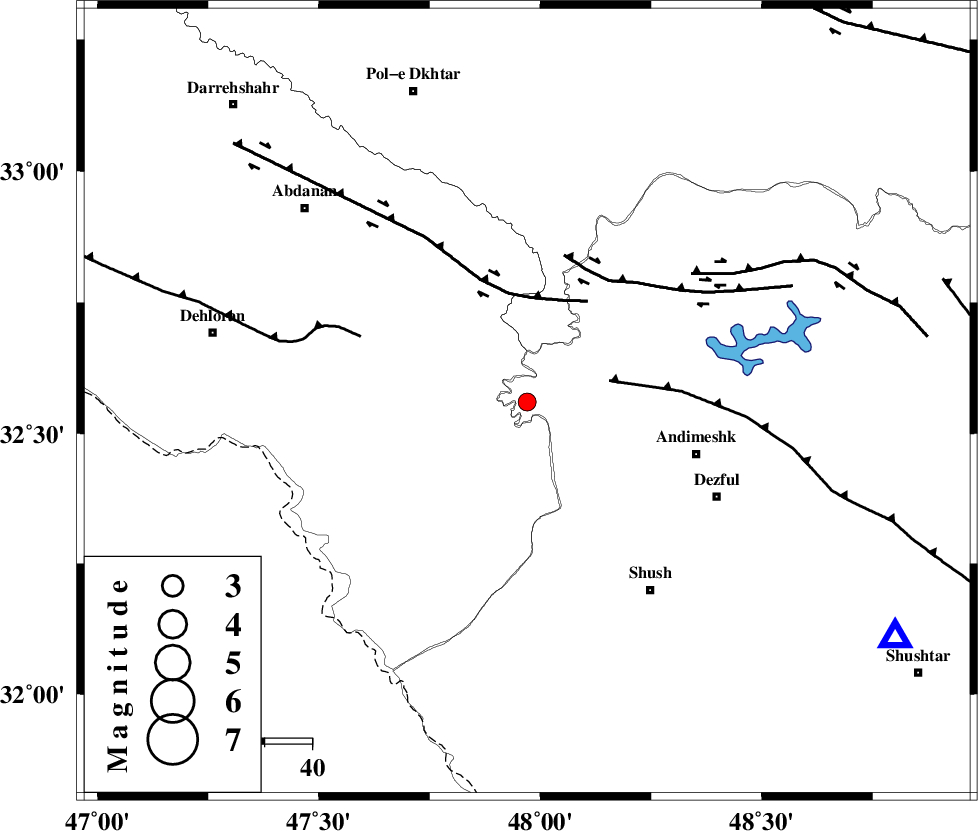

| Location | Lat:32.56 Lon: 47.97 |
| Region | Khoozestan Province, 37 km North-West of Andimeshk |
Nearest Cities |
|
| 29 km South West of Hoseinieh, Khoozestan Province | |
| 33 km South West of Bidruyeh, Khoozestan Province | |
| 38 km North West of Andimeshk, Khoozestan Province | |
| 41 km South West of Sorkhakan, Khoozestan Province | |
| 45 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 18 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 31 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 4 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93999 | IIEES | SHGR | E | 157 | 0.6 | 2014-10-18 18:41:42 | 2014-10-19 11:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-18 18:41:10 | -0.47 | y | 92.8 | 123 | |||
| IIEES | SHGR | E | Sg | E | 2014-10-18 18:41:23 | 0.18 | y | 92.8 | 123 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-18 18:41:32 | 0.66 | y | 227 | 54 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-18 18:42:00 | 0.05 | y | 227 | 54 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-18 18:41:38 | -0.41 | y | 287 | 349 | |||
| IIEES | SNGE | N | Sg | E | 2014-10-18 18:42:16 | 0.18 | y | 287 | 349 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-18 18:41:39 | 0.24 | y | 291 | 40 | |||
| IIEES | ASAO | N | Sg | E | 2014-10-18 18:42:17 | -0.45 | y | 291 | 40 | |||
