Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2014-10-21 01:11:06.4 |
| Date & Time (Local) | 1393/7/29 04:41:06.4 |

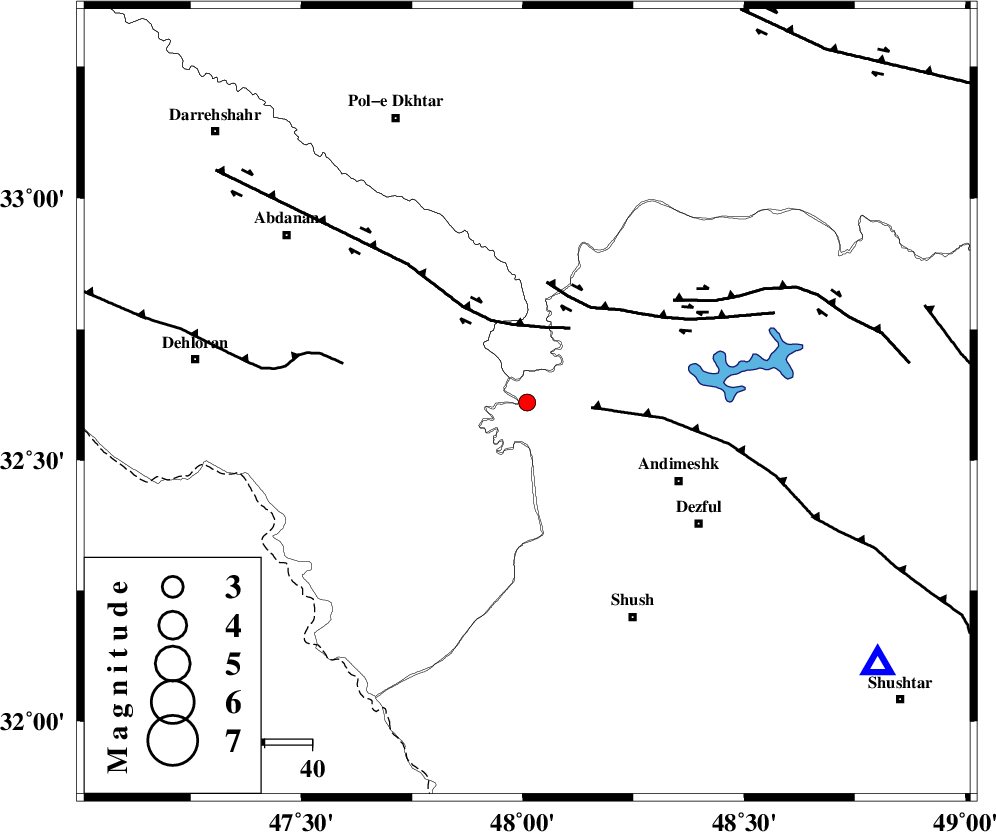

| Location | Lat:32.61 Lon: 48.01 |
| Region | Khoozestan Province, 36 km North-West of Andimeshk |
Nearest Cities |
|
| 24 km West of Hoseinieh, Khoozestan Province | |
| 27 km South West of Bidruyeh, Khoozestan Province | |
| 35 km South West of Sorkhakan, Khoozestan Province | |
| 36 km North West of Andimeshk, Khoozestan Province | |
| 45 km North West of Dezful, Khoozestan Province | |
| Depth | 37 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 14 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 17 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 24 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >7.6 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 4.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94031 | IIEES | KHMZ | E | 26.8 | 0.64 | 2014-10-21 01:12:17 | 2014-10-21 02:00:00 | n |
| 94032 | IIEES | ASAO | N | 16 | 0.48 | 2014-10-21 01:12:30 | 2014-10-21 02:00:00 | n |
| 94033 | IIEES | ASAO | E | 13.3 | 0.6 | 2014-10-21 01:12:39 | 2014-10-21 02:00:00 | n |
| 94034 | IIEES | GHVR | E | 8.3 | 0.48 | 2014-10-21 01:12:42 | 2014-10-21 02:00:00 | n |
| 94035 | IIEES | GHVR | N | 8.2 | 0.36 | 2014-10-21 01:12:43 | 2014-10-21 02:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-10-21 01:11:39 | -0.02 | y | 221 | 55 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-21 01:12:08 | 0.1 | y | 221 | 55 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-21 01:11:47 | 0.24 | y | 285 | 41 | |||
| IIEES | ASAO | N | Sg | E | 2014-10-21 01:12:24 | -0.11 | y | 285 | 41 | |||
| IIEES | GHVR | N | Pn | E | 2014-10-21 01:11:57 | -0.25 | y | 365 | 55 | |||
| IIEES | GHVR | N | Sn | 2014-10-21 01:12:34 | 0.01 | y | 365 | 55 | ||||
