Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2014-10-23 20:17:25.6 |
| Date & Time (Local) | 1393/8/1 23:47:25.6 |

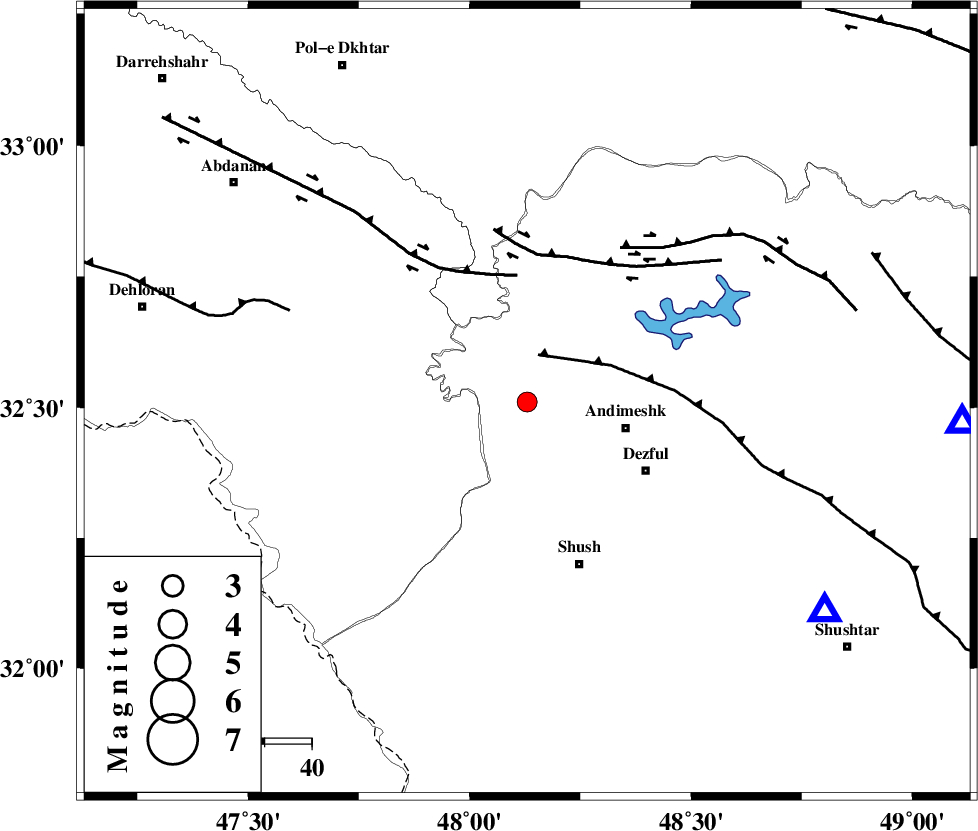

| Location | Lat:32.51 Lon: 48.13 |
| Region | Khoozestan Province, 22 km West of Andimeshk |
Nearest Cities |
|
| 22 km North West of Andimeshk, Khoozestan Province | |
| 22 km South West of Hoseinieh, Khoozestan Province | |
| 29 km North West of Dezful, Khoozestan Province | |
| 29 km South West of Bidruyeh, Khoozestan Province | |
| 35 km South West of Sorkhakan, Khoozestan Province | |
| Depth | 40 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 10 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 27 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 31 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94064 | IIEES | SHGR | E | 379.8 | 0.48 | 2014-10-23 20:18:13 | 2014-10-23 08:41:00 | n |
| 94065 | IIEES | SHGR | N | 342.8 | 0.52 | 2014-10-23 20:18:18 | 2014-10-23 08:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-23 20:17:39 | 0.03 | y | 77.6 | 125 | |||
| IIEES | SHGR | N | Sg | E | 2014-10-23 20:17:49 | -0.02 | y | 77.6 | 125 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-23 20:17:58 | -0.05 | y | 219 | 51 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-23 20:18:27 | 0.01 | y | 219 | 51 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-23 20:18:06 | -0.06 | y | 287 | 37 | |||
| IIEES | GHVR | N | Pn | E | 2014-10-23 20:18:16 | 0.11 | y | 363 | 52 | |||
