Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2014-10-26 04:17:05.7 |
| Date & Time (Local) | 1393/8/4 07:47:05.7 |

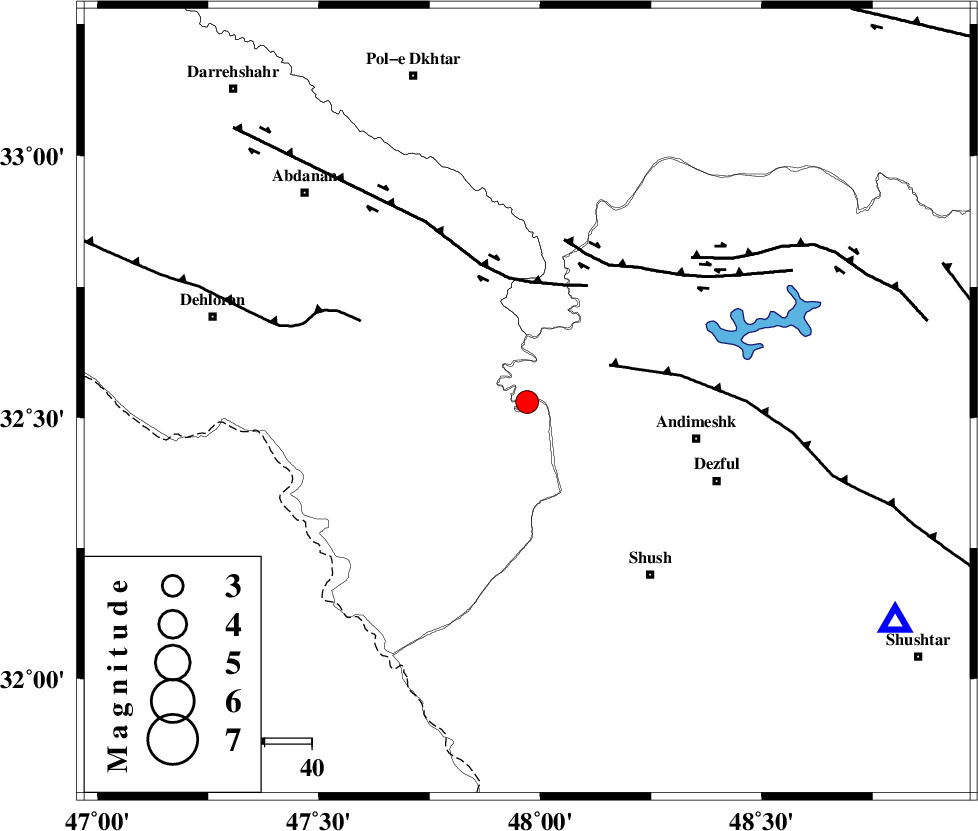

| Location | Lat:32.53 Lon: 47.97 |
| Region | Khoozestan Province, 36 km West of Andimeshk |
Nearest Cities |
|
| 31 km South West of Hoseinieh, Khoozestan Province | |
| 35 km South West of Bidruyeh, Khoozestan Province | |
| 37 km North West of Andimeshk, Khoozestan Province | |
| 43 km South West of Sorkhakan, Khoozestan Province | |
| 44 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 26 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 34 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 8.2 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94078 | IIEES | SNGE | N | 105.6 | 0.63 | 2014-10-26 04:18:44 | 2014-10-26 04:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-26 04:17:21 | -0.06 | y | 90.6 | 120 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-26 04:17:42 | 0.23 | y | 229 | 54 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-26 04:17:49 | 0.14 | y | 291 | 349 | |||
| IIEES | SNGE | N | Sg | E | 2014-10-26 04:18:27 | -0.21 | y | 291 | 349 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-26 04:17:50 | -0.01 | y | 294 | 40 | |||
| IIEES | GHVR | Z | Pn | E | 2014-10-26 04:17:59 | 0.02 | y | 373 | 54 | |||
| IIEES | NASN | Z | Pn | E | 2014-10-26 04:18:09 | -0.42 | y | 454 | 85 | |||
| IIEES | CHTH | Z | P | E | 2014-10-26 04:18:12 | 0.26 | y | 474 | 37 | |||
