Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2014-10-26 19:35:26.8 |
| Date & Time (Local) | 1393/8/4 23:05:26.8 |

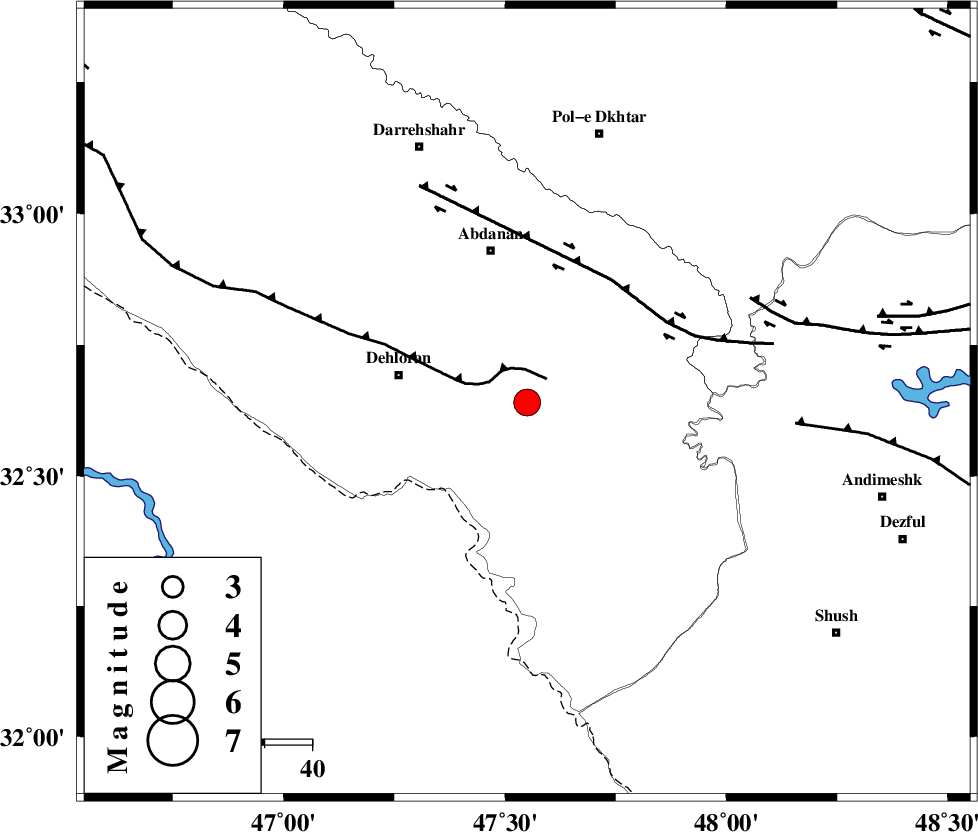

| Location | Lat:32.64 Lon: 47.55 |
| Region | Ilam Province, 27 km East of Dehloran |
Nearest Cities |
|
| 21 km North East of Musian, Ilam Province | |
| 28 km East of Dehloran, Ilam Province | |
| 29 km South of Sarabbagh, Ilam Province | |
| 33 km South of Abdanan, Ilam Province | |
| 52 km South West of Sarab hammam, Lorestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 6 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 32 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 52 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94085 | IIEES | GHVR | E | 135.2 | 0.52 | 2014-10-26 19:37:11 | 2014-10-26 07:58:00 | n |
| 94086 | IIEES | AHRM | E | 58.2 | 0.48 | 2014-10-26 19:38:25 | 2014-10-26 07:58:00 | n |
| 94087 | IIEES | AHRM | N | 78.5 | 0.68 | 2014-10-26 19:38:32 | 2014-10-26 07:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-10-26 19:35:48 | 0.01 | y | 132 | 116 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-26 19:36:06 | -0.09 | y | 256 | 61 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-26 19:36:39 | -0.01 | y | 256 | 61 | |||
| IIEES | SNGE | Z | Pn | E | 2014-10-26 19:36:08 | -0.02 | y | 272 | 356 | |||
| IIEES | ASAO | Z | Pn | E | 2014-10-26 19:36:13 | 0.1 | y | 312 | 47 | |||
| IIEES | GHVR | Z | Pn | E | 2014-10-26 19:36:24 | 0.02 | y | 399 | 58 | |||
