Event Specification
Magnitude |
4.9 |
| Date & Time (UTC) | 2014-10-28 08:19:01.8 |
| Date & Time (Local) | 1393/8/6 11:49:01.8 |

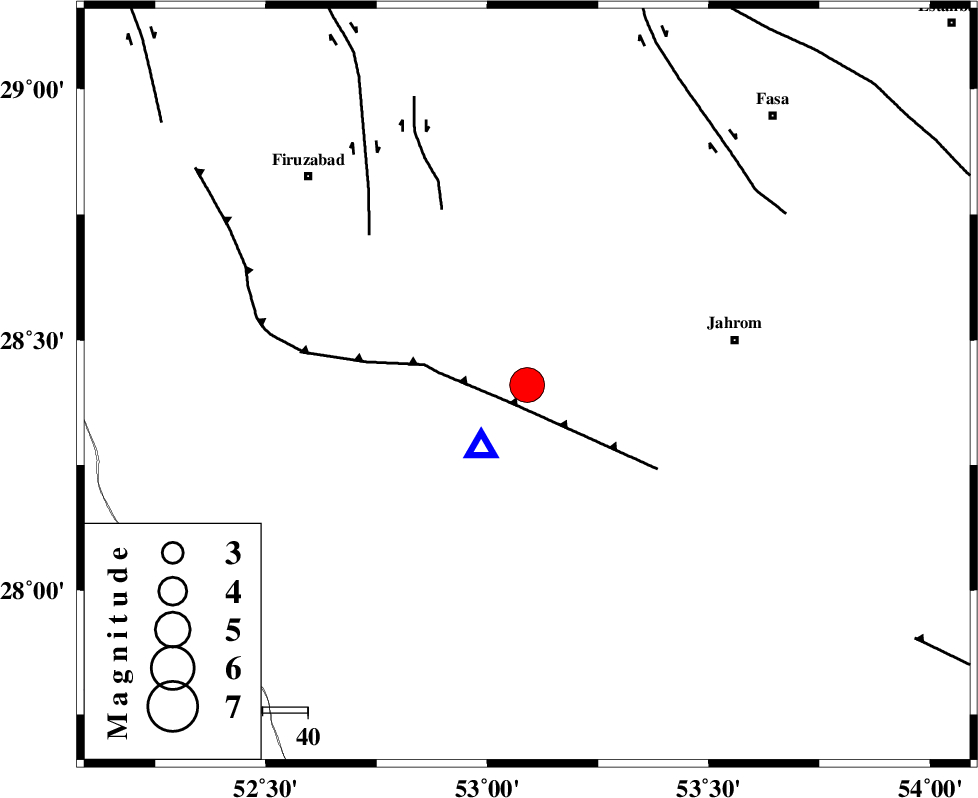

| Location | Lat:28.41 Lon: 53.09 |
| Region | Fars Province, 8 km Qir va Karzin |
Nearest Cities |
|
| 2 km of Shahrak-e jonubi, Fars Province | |
| 8 km of Qir va Karzin, Fars Province | |
| 9 km of Fathabad, Fars Province | |
| 23 km North West of Mobarakabad, Fars Province | |
| 27 km South of Shaghun, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 5 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 43 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 48 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >10.3 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 11.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94105 | IIEES | AHRM | N | 14582.8 | 0.48 | 2014-10-28 08:20:10 | 2014-10-28 08:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2014-10-28 08:19:06 | 0.06 | y | 17.3 | 216 | |||
| IIEES | GHIR | N | Sg | E | 2014-10-28 08:19:09 | -0.01 | y | 17.3 | 216 | |||
| IIEES | AHRM | Z | Pg | E | 2014-10-28 08:19:31 | -0.08 | y | 182 | 286 | |||
| IIEES | AHRM | E | Sg | E | 2014-10-28 08:19:53 | 0.01 | y | 182 | 286 | |||
| IIEES | NASN | Z | Pn | E | 2014-10-28 08:20:09 | 0.07 | y | 487 | 357 | |||
| IIEES | TABS | Z | Pn | E | 2014-10-28 08:20:35 | 0.2 | y | 696 | 33 | |||
| IIEES | BSRN | Z | P | E | 2014-10-28 08:20:36 | -0.17 | y | 702 | 54 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-10-28 08:20:43 | -0.09 | y | 760 | 78 | |||
