Event Specification
Magnitude |
1.7 |
| Date & Time (UTC) | 2014-10-30 10:30:09.3 |
| Date & Time (Local) | 1393/8/8 14:00:09.3 |

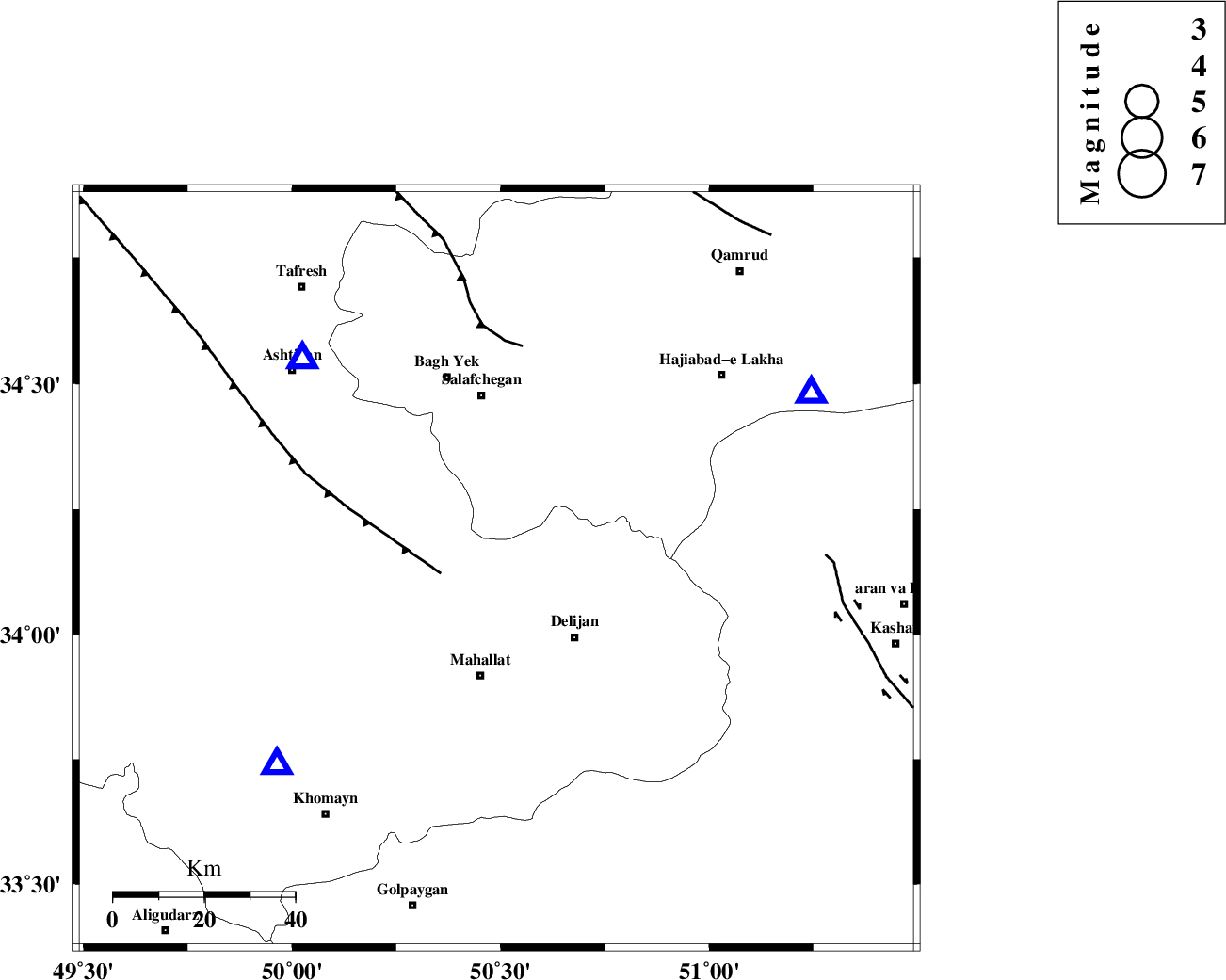

| Location | Lat:34.13 Lon: 50.49 |
| Region | Markazi Province, 24 km North of Mahallat |
Nearest Cities |
|
| 7 km North of Khorheh, Markazi Province | |
| 8 km of Dudhak, Markazi Province | |
| 23 km North West of Delijan, Markazi Province | |
| 24 km North of Mahallat, Markazi Province | |
| 29 km North of Nimur, Markazi Province | |
| Depth | 44 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 12 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 50 km | |
| KASHAN_F (Length: 44 km) , Distance to epicenter: 73 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 1.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94128 | IIEES | ASAO | N | 35.8 | 0.44 | 2014-10-30 10:30:34 | 2014-10-30 12:18:00 | n |
| 94129 | IIEES | GHVR | E | 29.9 | 0.6 | 2014-10-30 10:30:35 | 2014-10-30 12:18:00 | n |
| 94130 | IIEES | GHVR | N | 25.9 | 0.52 | 2014-10-30 10:30:43 | 2014-10-30 12:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2014-10-30 10:30:21 | -0.06 | y | 62.7 | 317 | |||
| IIEES | ASAO | N | Sg | E | 2014-10-30 10:30:31 | 0.04 | y | 62.7 | 317 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-10-30 10:30:22 | 0.01 | y | 65.2 | 228 | |||
| IIEES | KHMZ | E | Sg | E | 2014-10-30 10:30:31 | 0 | y | 65.2 | 228 | |||
| IIEES | GHVR | Z | Pg | E | 2014-10-30 10:30:23 | 0.01 | y | 79.6 | 61 | |||
