Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2014-11-02 23:12:48.8 |
| Date & Time (Local) | 1393/8/12 02:42:48.8 |

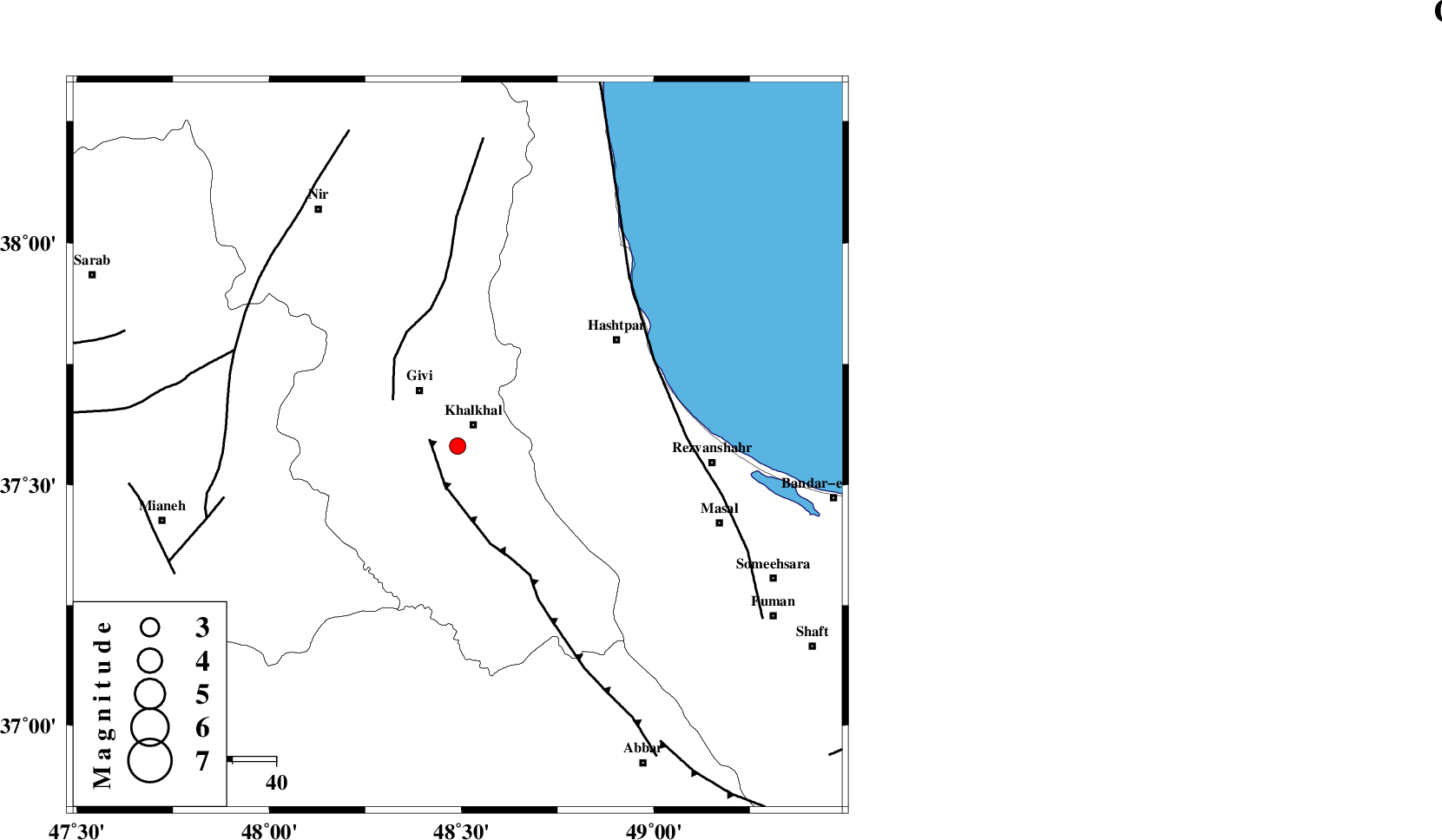

| Location | Lat:37.58 Lon: 48.49 |
| Region | Ardebil Province, 6 km Khalkhal |
Nearest Cities |
|
| 6 km of Khalkhal, Ardebil Province | |
| 6 km of Khojin, Ardebil Province | |
| 10 km North East of Gazaz, Ardebil Province | |
| 15 km South of Givi, Ardebil Province | |
| 22 km East of Firuz Abad, Ardebil Province | |
| Depth | 42 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 7 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 18 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 49 km | |
| Number of Phases | 8 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >0.9 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 1.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94190 | IIEES | GRMI | E | 159.3 | 0.2 | 2014-11-02 23:13:32 | 2014-11-03 01:50:00 | n |
| 94191 | IIEES | GRMI | N | 89.8 | 0.2 | 2014-11-02 23:13:33 | 2014-11-03 01:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pn | E | 2014-11-02 23:13:06 | 0.05 | y | 103 | 170 | |||
| IIEES | ZNJK | E | Sg | E | 2014-11-02 23:13:19 | -0.03 | y | 103 | 170 | |||
| IIEES | GRMI | Z | Pg | E | 2014-11-02 23:13:13 | 0.02 | y | 146 | 339 | |||
| IIEES | GRMI | N | Sg | E | 2014-11-02 23:13:30 | -0.01 | y | 146 | 339 | |||
| IIEES | THKV | Z | Pn | E | 2014-11-02 23:13:29 | -0.03 | y | 283 | 130 | |||
| IIEES | THKV | N | Sg | E | 2014-11-02 23:14:06 | 0.04 | y | 283 | 130 | |||
| IIEES | CHTH | Z | Pn | E | 2014-11-02 23:13:31 | -0.04 | y | 300 | 127 | |||
| IIEES | CHTH | E | Sg | E | 2014-11-02 23:14:11 | 0 | y | 300 | 127 | |||
