Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2014-11-06 01:14:26.6 |
| Date & Time (Local) | 1393/8/15 04:44:26.6 |

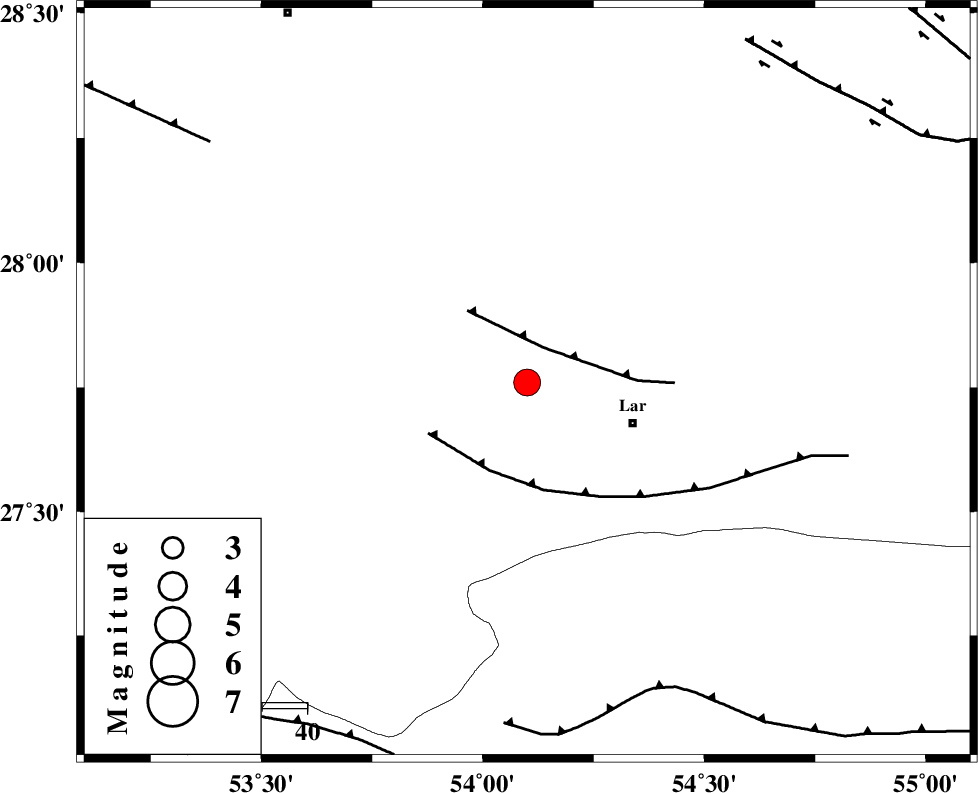

| Location | Lat:27.76 Lon: 54.1 |
| Region | Fars Province, 25 km West of Lar |
Nearest Cities |
|
| 9 km of Avaz, Fars Province | |
| 14 km North of Grash, Fars Province | |
| 25 km North West of Lar, Fars Province | |
| 28 km North West of Latifi, Fars Province | |
| 30 km North of Bagh, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 9 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 21 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 74 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94197 | IIEES | KRBR | N | 215.1 | 0.6 | 2014-11-06 01:16:20 | 2014-11-06 01:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | P | E | 2014-11-06 01:15:00 | -0.06 | y | 208 | 101 | |||
| IIEES | AHRM | Z | Pn | E | 2014-11-06 01:15:11 | -0.03 | y | 301 | 295 | |||
| IIEES | KRBR | Z | Pn | E | 2014-11-06 01:15:19 | 0.13 | y | 357 | 46 | |||
| IIEES | KRBR | N | Sg | E | 2014-11-06 01:16:06 | -0.09 | y | 357 | 46 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-06 01:15:38 | 0.04 | y | 515 | 5 | |||
| IIEES | NASN | Z | Pn | E | 2014-11-06 01:15:45 | -0.01 | y | 572 | 348 | |||
| IIEES | BSRN | Z | Pn | E | 2014-11-06 01:15:58 | 0.19 | y | 673 | 45 | |||
| IIEES | TABS | Z | Pn | E | 2014-11-06 01:16:03 | 0.02 | y | 714 | 23 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-11-06 01:16:10 | -0.09 | y | 772 | 330 | |||
| IIEES | SHRT | Z | Pn | E | 2014-11-06 01:16:23 | -0.06 | y | 881 | 41 | |||
