Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2014-11-06 01:20:48.7 |
| Date & Time (Local) | 1393/8/15 04:50:48.7 |
| Location | Lat:27.82 Lon: 54.27 |
| Region | Fars Province, 17 km North of Lar |
Nearest Cities |
|
| 15 km West of Dehkuyeh, Fars Province | |
| 17 km North of Lar, Fars Province | |
| 17 km North West of Latifi, Fars Province | |
| 21 km North East of Grash, Fars Province | |
| 26 km North East of Avaz, Fars Province | |
| Depth | 29 km |
| Agency | |

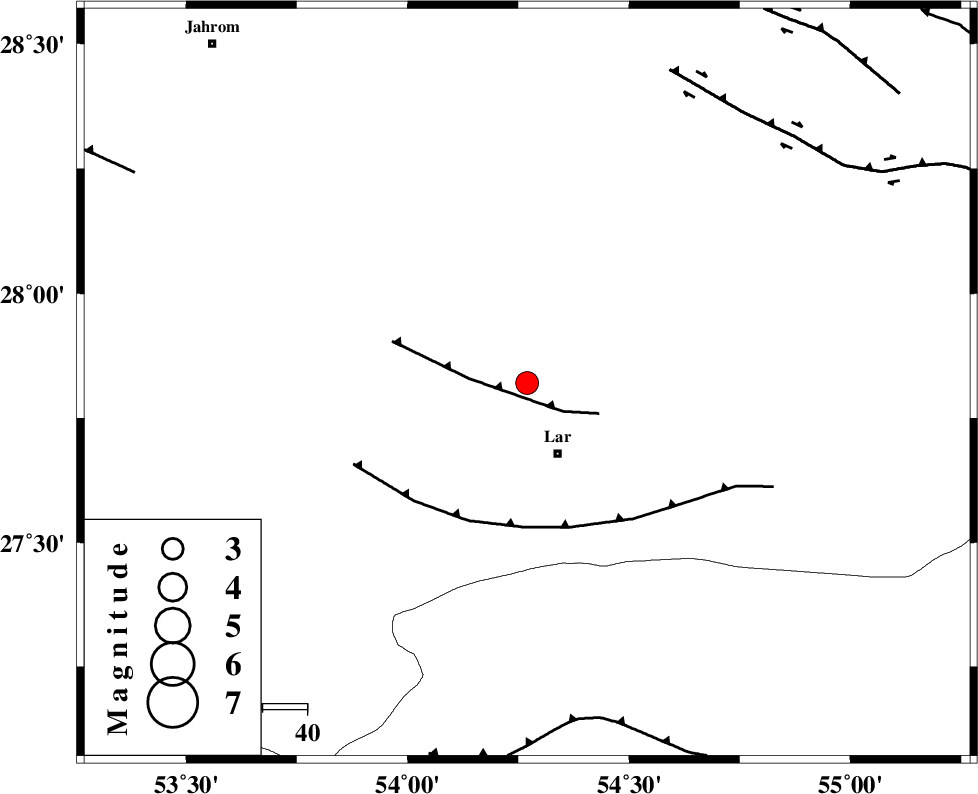

Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 10 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 32 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 76 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94198 | IIEES | KRBR | N | 80 | 0.52 | 2014-11-06 01:22:39 | 2014-11-06 02:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pn | E | 2014-11-06 01:21:19 | -0.05 | y | 194 | 103 | |||
| IIEES | AHRM | Z | Pn | E | 2014-11-06 01:21:33 | 0.03 | y | 313 | 292 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-06 01:21:58 | -0.15 | y | 508 | 3 | |||
| IIEES | NASN | E | S | E | 2014-11-06 01:23:02 | 0 | y | 570 | 346 | |||
| IIEES | BSRN | Z | P | E | 2014-11-06 01:22:16 | 0.02 | y | 657 | 44 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-11-06 01:22:17 | 0.11 | y | 666 | 71 | |||
| IIEES | TABS | Z | Pn | E | 2014-11-06 01:22:22 | 0.13 | y | 702 | 22 | |||
