Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2014-11-06 18:43:30.2 |
| Date & Time (Local) | 1393/8/15 22:13:30.2 |

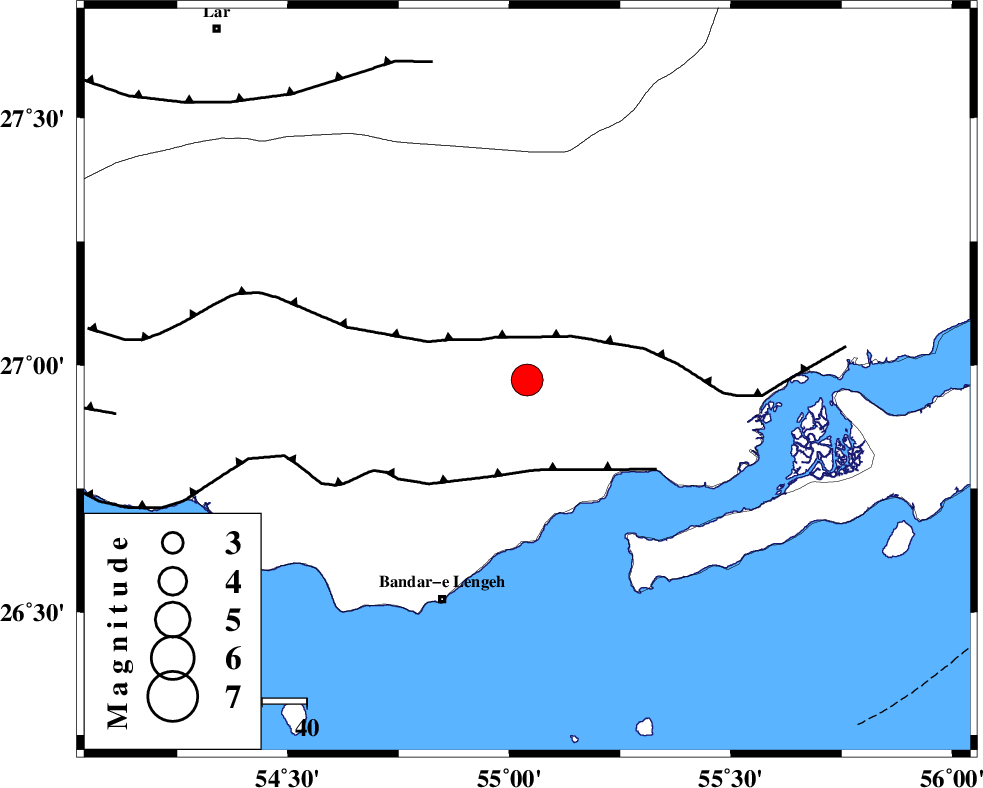

| Location | Lat:26.97 Lon: 55.04 |
| Region | Hormozgan Province, 53 km North-East of Bandar-e lengeh |
Nearest Cities |
|
| 53 km North East of Bandar-e lengeh, Hormozgan Province | |
| 54 km North West of Bandar-e khamir, Hormozgan Province | |
| 72 km South East of Bastak, Hormozgan Province | |
| 75 km East of Jenah, Hormozgan Province | |
| 103 km North West of Suza, Hormozgan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 10 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 20 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 75 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >7.1 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94223 | IIEES | BNDS | N | 11432.5 | 0.36 | 2014-11-06 18:44:11 | 2014-11-06 07:16:00 | n |
| 94224 | IIEES | KRBR | N | 898.5 | 0.52 | 2014-11-06 18:45:22 | 2014-11-06 07:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-11-06 18:43:50 | 0 | y | 122 | 67 | |||
| IIEES | KRBR | Z | Pn | E | 2014-11-06 18:44:24 | 0.24 | y | 374 | 26 | |||
| IIEES | CHBR | Z | Pn | E | 2014-11-06 18:44:47 | 0.05 | y | 564 | 104 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-06 18:44:53 | 0.29 | y | 602 | 356 | |||
| IIEES | BSRN | Z | Pn | E | 2014-11-06 18:45:01 | -0.59 | y | 680 | 35 | |||
| IIEES | NASN | Z | Pn | E | 2014-11-06 18:45:02 | -0.21 | y | 681 | 342 | |||
| IIEES | TABS | Z | Pn | E | 2014-11-06 18:45:13 | 0.05 | y | 767 | 15 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-11-06 18:45:29 | -0.08 | y | 895 | 328 | |||
| IIEES | GHVR | Z | Pn | E | 2014-11-06 18:45:30 | -0.05 | y | 908 | 337 | |||
