Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-11-19 10:11:52.4 |
| Date & Time (Local) | 1393/8/28 13:41:52.4 |

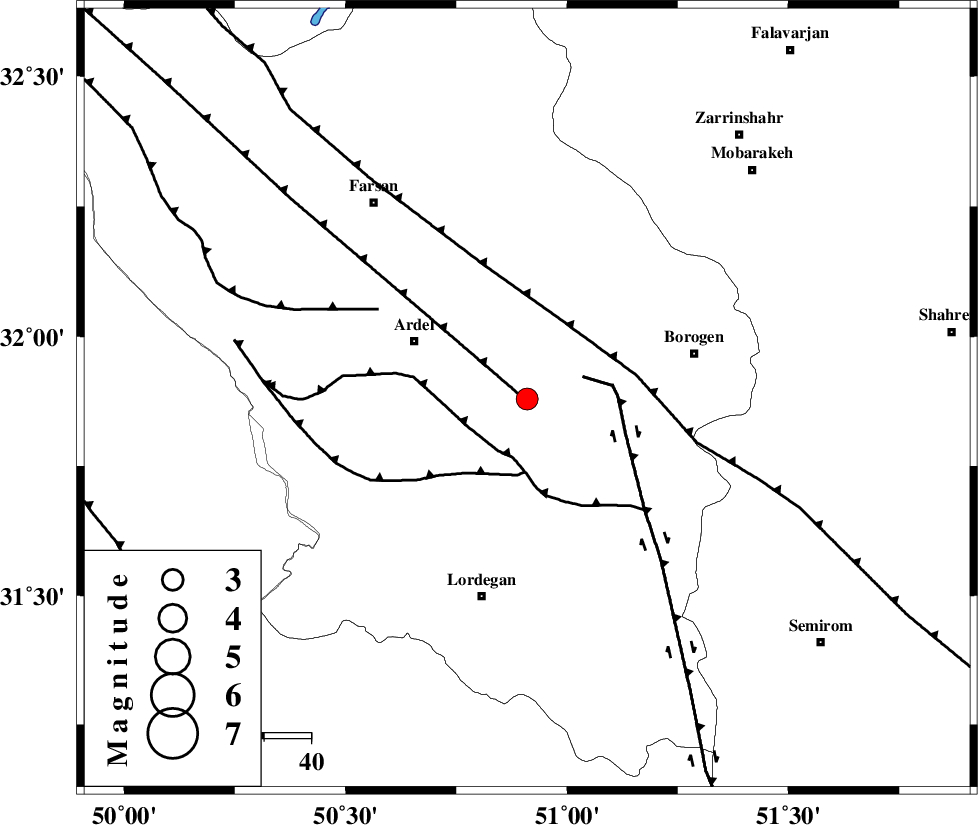

| Location | Lat:31.88 Lon: 50.91 |
| Region | Chaharmahal Bakhtiari Province, 27 km South-East of Ardel |
Nearest Cities |
|
| 14 km West of Baladaji, Chaharmahal Bakhtiari Province | |
| 17 km East of Naghan, Chaharmahal Bakhtiari Province | |
| 21 km South East of Shalamzar, Chaharmahal Bakhtiari Province | |
| 23 km North West of Gandoman, Chaharmahal Bakhtiari Province | |
| 27 km South East of Ardel, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 2 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 13 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 13 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94323 | IIEES | KHMZ | E | 156.5 | 0.44 | 2014-11-19 10:13:00 | 2014-11-19 11:19:00 | n |
| 94324 | IIEES | GHVR | E | 70.5 | 0.61 | 2014-11-19 10:13:24 | 2014-11-19 11:19:00 | n |
| 94325 | IIEES | ASAO | N | 60.3 | 0.44 | 2014-11-19 10:13:26 | 2014-11-19 11:19:00 | n |
| 94326 | IIEES | SNGE | N | 26.4 | 0.48 | 2014-11-19 10:13:57 | 2014-11-19 11:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2014-11-19 10:12:26 | 0.17 | y | 206 | 60 | |||
| IIEES | NASN | E | Sg | E | 2014-11-19 10:12:50 | -0.19 | y | 206 | 60 | |||
| IIEES | KHMZ | E | Sg | E | 2014-11-19 10:12:55 | -0.17 | y | 224 | 337 | |||
| IIEES | GHVR | Z | Pn | E | 2014-11-19 10:12:36 | 0.19 | y | 290 | 6 | |||
| IIEES | GHVR | E | Sg | E | 2014-11-19 10:13:14 | 0.2 | y | 290 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2014-11-19 10:12:38 | -0.08 | y | 307 | 345 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-19 10:12:44 | -0.05 | y | 352 | 80 | |||
| IIEES | SNGE | Z | Pn | E | 2014-11-19 10:13:00 | -0.08 | y | 486 | 318 | |||
