Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2014-11-20 02:38:59.4 |
| Date & Time (Local) | 1393/8/29 06:08:59.4 |

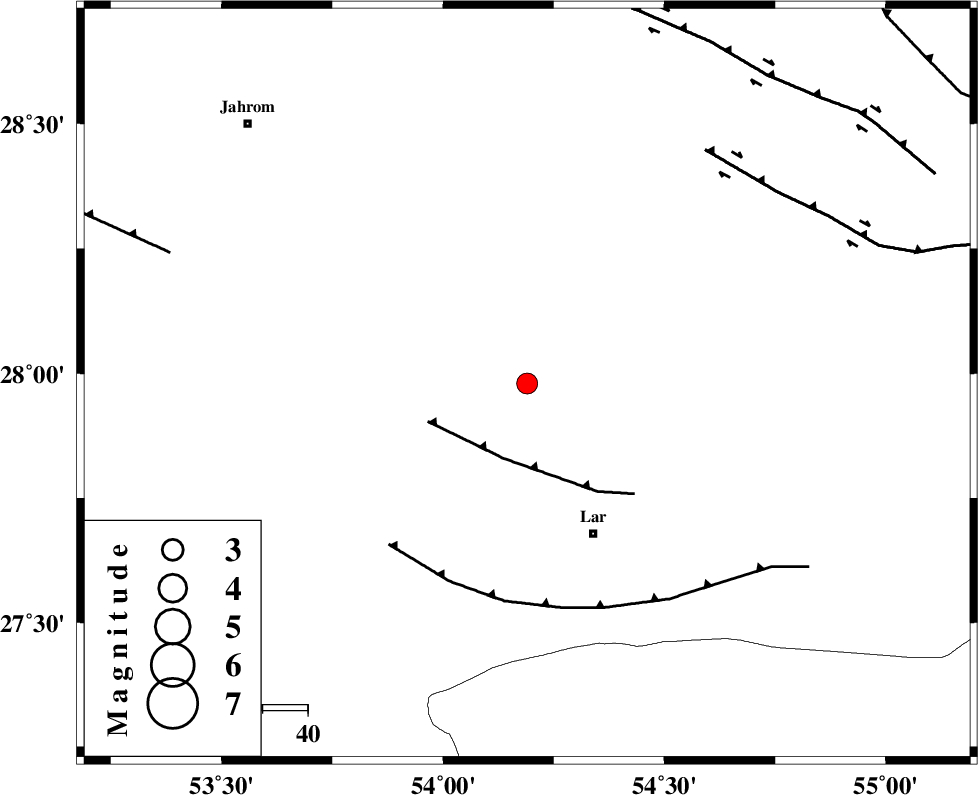

| Location | Lat:27.98 Lon: 54.19 |
| Region | Fars Province, 36 km North-West of Lar |
Nearest Cities |
|
| 27 km North West of Dehkuyeh, Fars Province | |
| 30 km North East of Avaz, Fars Province | |
| 36 km North West of Latifi, Fars Province | |
| 37 km North West of Lar, Fars Province | |
| 37 km North of Grash, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 17 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 47 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 65 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94339 | IIEES | BNDS | N | 106.6 | 0.4 | 2014-11-20 02:40:09 | 2014-11-20 03:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pn | E | 2014-11-20 02:39:32 | 0.04 | y | 206 | 108 | |||
| IIEES | BNDS | N | Sg | E | 2014-11-20 02:39:57 | -0.07 | y | 206 | 108 | |||
| IIEES | KRBR | Z | Pn | E | 2014-11-20 02:39:49 | 0.17 | y | 335 | 48 | |||
| IIEES | KRBR | N | Sg | E | 2014-11-20 02:40:33 | -0.02 | y | 335 | 48 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-20 02:40:08 | -0.03 | y | 491 | 4 | |||
| IIEES | NASN | Z | Pn | E | 2014-11-20 02:40:15 | -0.14 | y | 551 | 346 | |||
