Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2014-11-21 16:34:32.5 |
| Date & Time (Local) | 1393/8/30 20:04:32.5 |

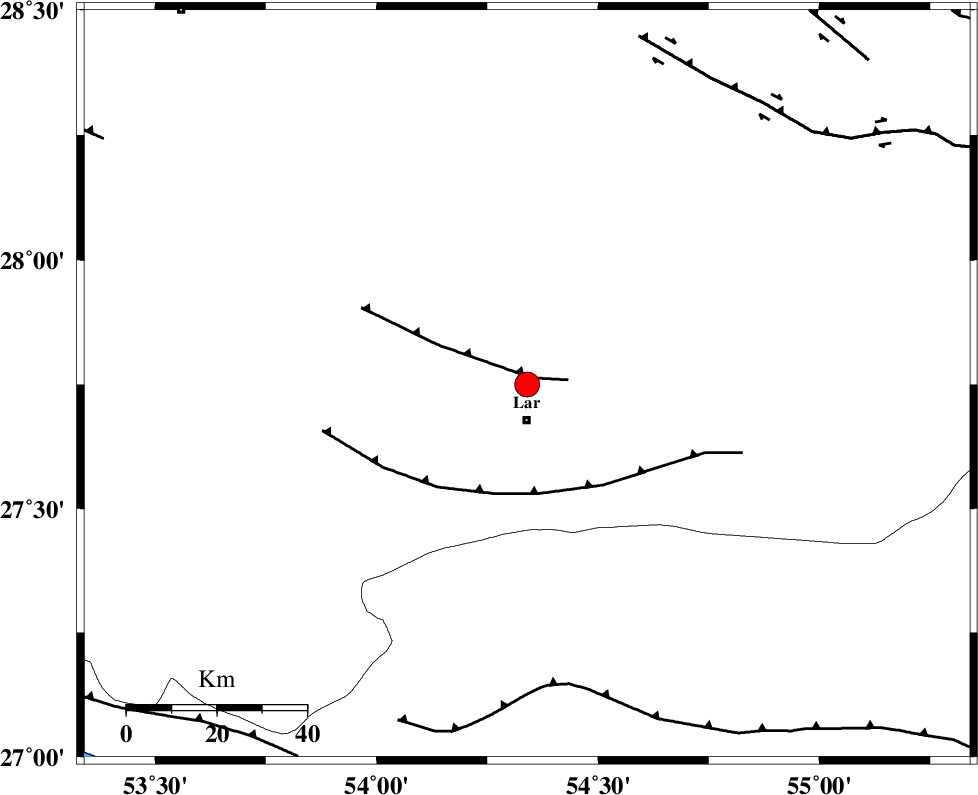

| Location | Lat:27.75 Lon: 54.34 |
| Region | Fars Province, 8 km Lar |
Nearest Cities |
|
| 7 km North of Latifi, Fars Province | |
| 8 km North of Lar, Fars Province | |
| 14 km South of Dehkuyeh, Fars Province | |
| 20 km North East of Grash, Fars Province | |
| 32 km East of Avaz, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 2 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 25 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 67 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94344 | IIEES | GHIR | E | 783.8 | 0.44 | 2014-11-21 16:35:25 | 2014-11-21 05:10:00 | n |
| 94345 | IIEES | AHRM | E | 131.2 | 0.8 | 2014-11-21 16:36:22 | 2014-11-21 05:10:00 | n |
| 94346 | IIEES | KRBR | N | 136.6 | 0.68 | 2014-11-21 16:36:14 | 2014-11-21 05:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2014-11-21 16:34:56 | 0.06 | y | 146 | 294 | |||
| IIEES | GHIR | E | Sg | E | 2014-11-21 16:35:14 | -0.03 | y | 146 | 294 | |||
| IIEES | BNDS | Z | Pn | E | 2014-11-21 16:35:03 | -0.04 | y | 185 | 102 | |||
| IIEES | AHRM | Z | Pn | E | 2014-11-21 16:35:20 | 0.04 | y | 323 | 293 | |||
| IIEES | AHRM | E | Sg | E | 2014-11-21 16:36:03 | -0.04 | y | 323 | 293 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-21 16:35:44 | 0.01 | y | 515 | 3 | |||
