Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2014-11-23 02:49:48.2 |
| Date & Time (Local) | 1393/9/2 06:19:48.2 |

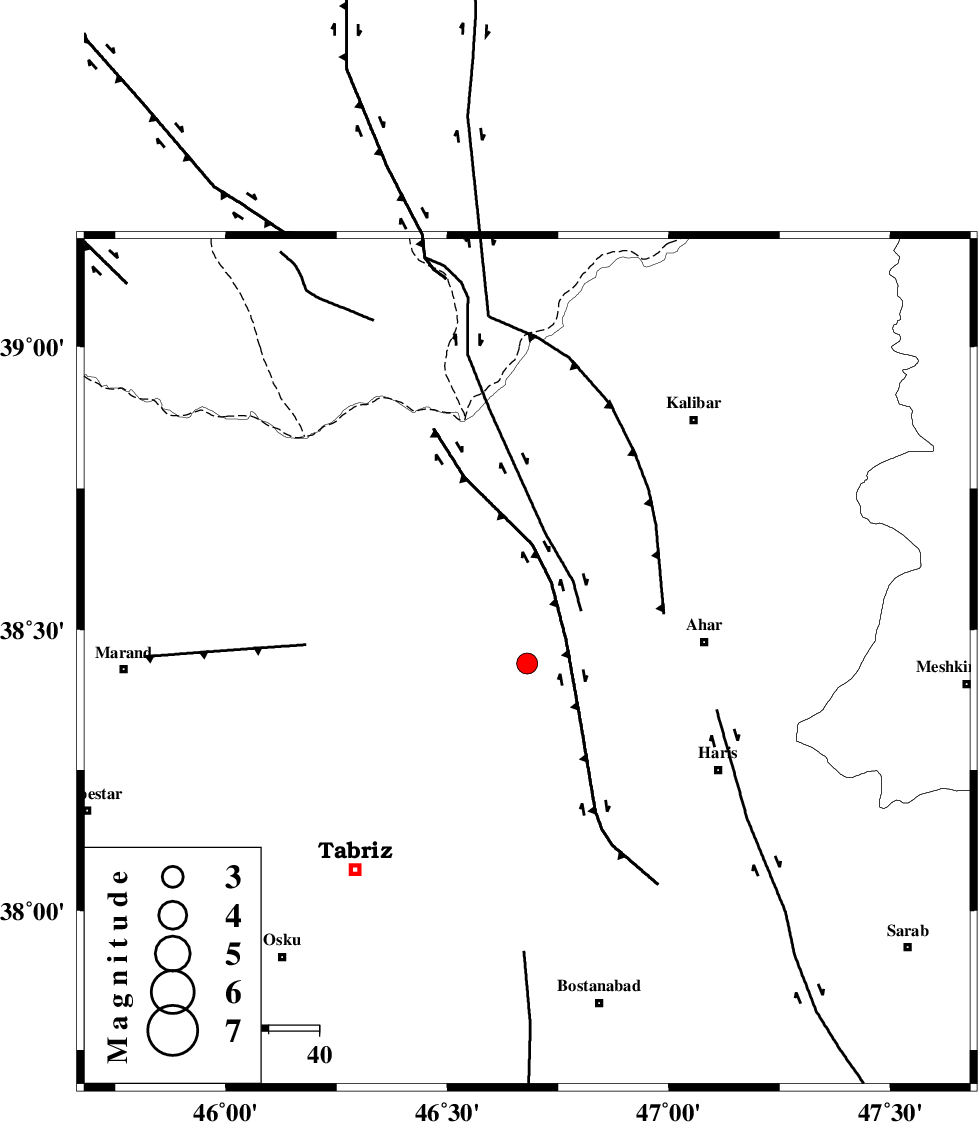

| Location | Lat:38.44 Lon: 46.68 |
| Region | Azarbaijan Sharghi Province, 36 km West of Ahar |
Nearest Cities |
|
| 6 km of Varzagan, Azarbaijan Sharghi Province | |
| 17 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 17 km North of Sarand, Azarbaijan Sharghi Province | |
| 19 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 22 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 64 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 88 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94358 | IIEES | GRMI | E | 511.1 | 0.2 | 2014-11-23 02:50:22 | 2014-11-23 03:18:00 | n |
| 94359 | IIEES | GRMI | N | 315.2 | 0.32 | 2014-11-23 02:50:24 | 2014-11-23 03:18:00 | n |
| 94360 | IIEES | MAKU | N | 120.6 | 0.4 | 2014-11-23 02:50:47 | 2014-11-23 03:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2014-11-23 02:50:07 | 0 | y | 114 | 68 | |||
| IIEES | MAKU | Z | Pg | E | 2014-11-23 02:50:21 | 0 | y | 201 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-11-23 02:50:28 | 0 | y | 264 | 137 | |||
