Event Specification
Magnitude |
2.2 |
| Date & Time (UTC) | 2014-11-26 01:41:26.0 |
| Date & Time (Local) | 1393/9/5 05:11:26.0 |

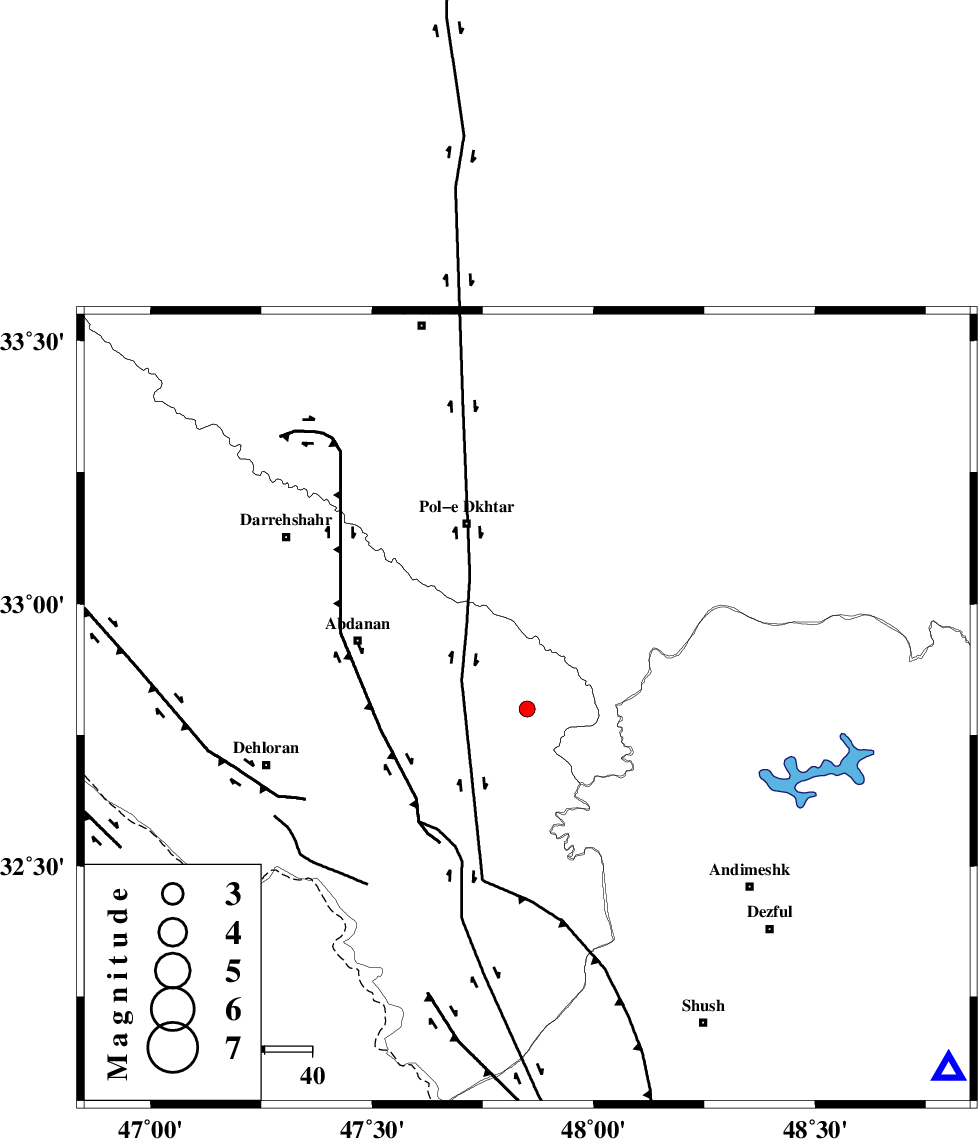

| Location | Lat:32.8 Lon: 47.85 |
| Region | Ilam Province, 41 km South-East of Pol-e dokhtar |
Nearest Cities |
|
| 29 km East of Sarabbagh, Ilam Province | |
| 36 km South East of Sarab hammam, Lorestan Province | |
| 37 km North West of Bidruyeh, Khoozestan Province | |
| 38 km South East of Abdanan, Ilam Province | |
| 40 km North West of Hoseinieh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 2 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 20 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 27 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >7.1 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 10.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94383 | IIEES | KHMZ | E | 13.1 | 0.49 | 2014-11-26 01:42:38 | 2014-11-26 08:55:00 | n |
| 94384 | IIEES | SNGE | N | 12.9 | 0.45 | 2014-11-26 01:42:43 | 2014-11-26 08:55:00 | n |
| 94385 | IIEES | ASAO | E | 12.5 | 0.5 | 2014-11-26 01:42:58 | 2014-11-26 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-11-26 01:42:01 | 0.01 | y | 223 | 62 | |||
| IIEES | KHMZ | E | Sg | E | 2014-11-26 01:42:29 | -0.03 | y | 223 | 62 | |||
| IIEES | SNGE | Z | Pn | E | 2014-11-26 01:42:05 | -0.08 | y | 259 | 350 | |||
| IIEES | SNGE | N | Sg | E | 2014-11-26 01:42:39 | 0.03 | y | 259 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2014-11-26 01:42:08 | 0.06 | y | 280 | 46 | |||
| IIEES | NASN | Z | Pn | E | 2014-11-26 01:42:31 | 0.01 | y | 465 | 89 | |||
