Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2014-11-26 20:42:08.6 |
| Date & Time (Local) | 1393/9/6 00:12:08.6 |

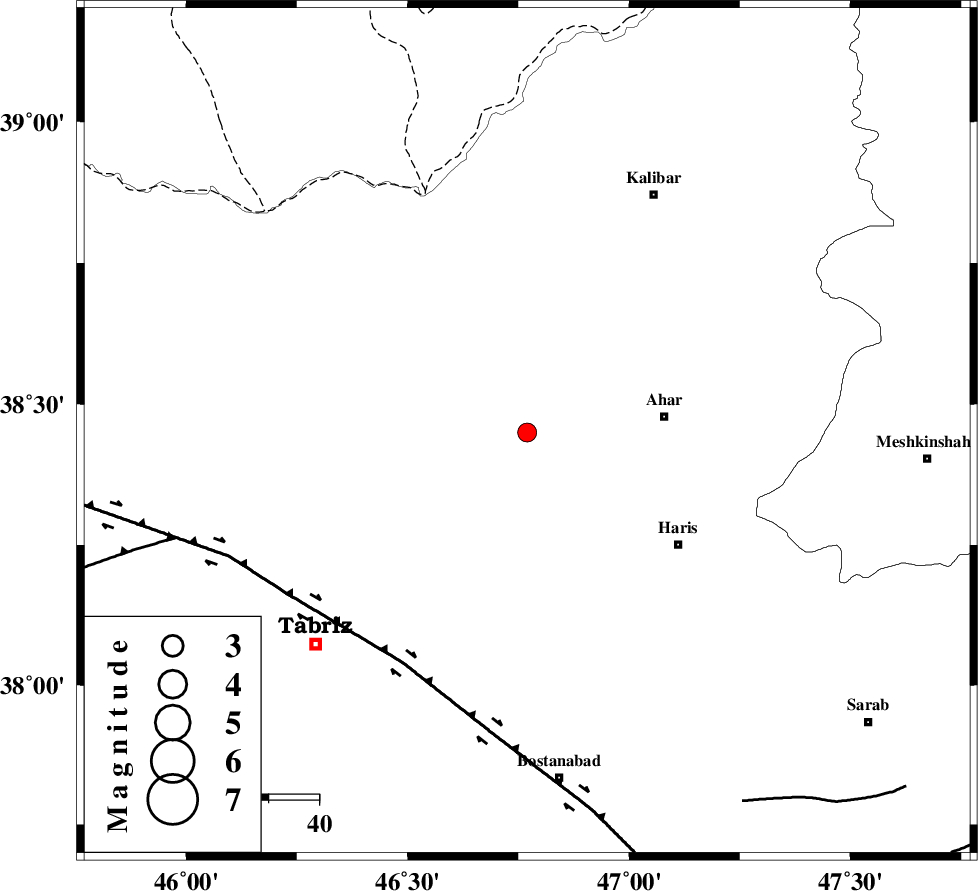

| Location | Lat:38.45 Lon: 46.77 |
| Region | Azarbaijan Sharghi Province, 27 km West of Ahar |
Nearest Cities |
|
| 13 km East of Varzagan, Azarbaijan Sharghi Province | |
| 15 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 21 km South West of Azghan, Azarbaijan Sharghi Province | |
| 21 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 72 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 85 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94386 | IIEES | GRMI | E | 222.4 | 0.32 | 2014-11-26 20:42:41 | 2014-11-26 09:29:00 | n |
| 94387 | IIEES | GRMI | N | 233.9 | 0.2 | 2014-11-26 20:42:42 | 2014-11-26 09:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2014-11-26 20:42:26 | 0.03 | y | 106 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2014-11-26 20:42:39 | -0.02 | y | 106 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2014-11-26 20:42:42 | 0.14 | y | 207 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2014-11-26 20:43:07 | -0.09 | y | 207 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-11-26 20:42:48 | -0.05 | y | 260 | 139 | |||
