Event Specification
Magnitude |
1.6 |
| Date & Time (UTC) | 2014-12-04 13:14:27.1 |
| Date & Time (Local) | 1393/9/13 16:44:27.1 |

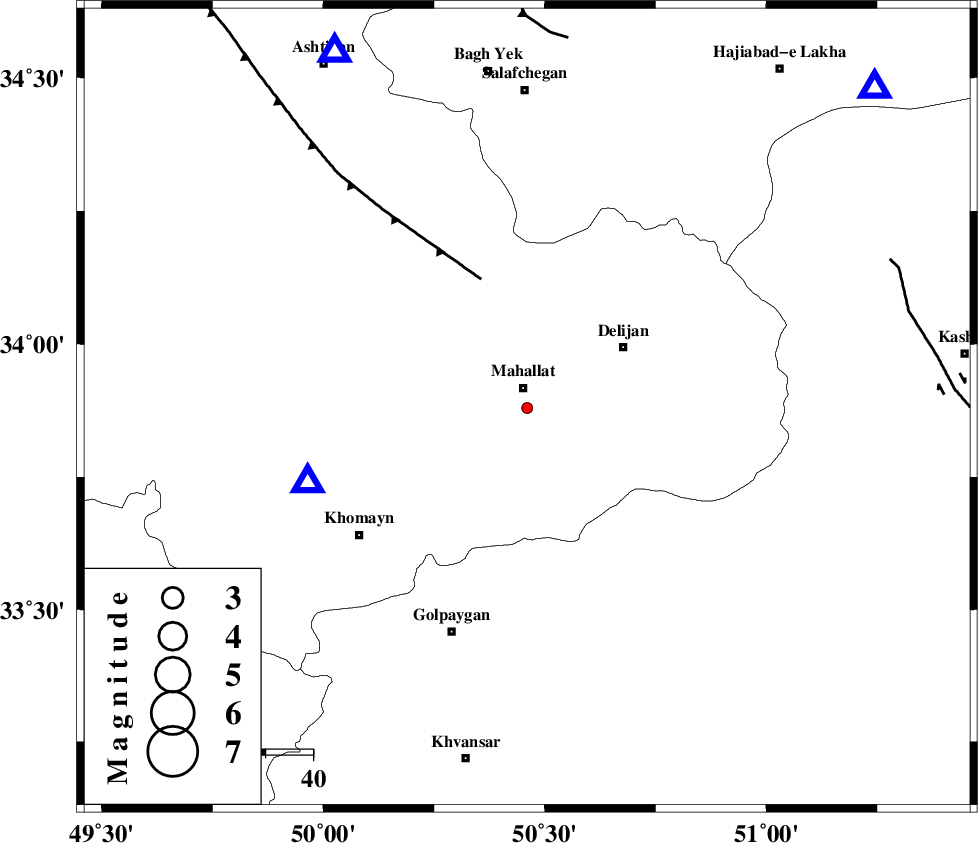

| Location | Lat:33.88 Lon: 50.46 |
| Region | Markazi Province, 5 km Mahallat |
Nearest Cities |
|
| 4 km of Mahallat, Markazi Province | |
| 10 km West of Nimur, Markazi Province | |
| 21 km South of Khorheh, Markazi Province | |
| 24 km South West of Delijan, Markazi Province | |
| 29 km North East of Goldasht, Markazi Province | |
| Depth | 29 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 29 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 78 km | |
| KASHAN_F (Length: 44 km) , Distance to epicenter: 82 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94442 | IIEES | KHMZ | E | 45.6 | 0.16 | 2014-12-04 13:14:44 | 2014-12-04 01:51:00 | n |
| 94443 | IIEES | ASAO | N | 19.3 | 0.48 | 2014-12-04 13:14:59 | 2014-12-04 01:51:00 | n |
| 94444 | IIEES | GHVR | E | 15.5 | 0.36 | 2014-12-04 13:15:02 | 2014-12-04 01:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2014-12-04 13:14:36 | -0.03 | y | 48 | 252 | |||
| IIEES | KHMZ | E | Sg | E | 2014-12-04 13:14:43 | 0.02 | y | 48 | 252 | |||
| IIEES | ASAO | Z | Pg | E | 2014-12-04 13:14:41 | -0.01 | y | 84.5 | 332 | |||
| IIEES | ASAO | E | Sg | E | 2014-12-04 13:14:52 | 0 | y | 84.5 | 332 | |||
| IIEES | GHVR | Z | Pg | E | 2014-12-04 13:14:43 | 0.04 | y | 98.9 | 47 | |||
| IIEES | GHVR | N | Sg | E | 2014-12-04 13:14:56 | -0.02 | y | 98.9 | 47 | |||
