Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2014-12-16 20:49:12.0 |
| Date & Time (Local) | 1393/9/26 00:19:12.0 |

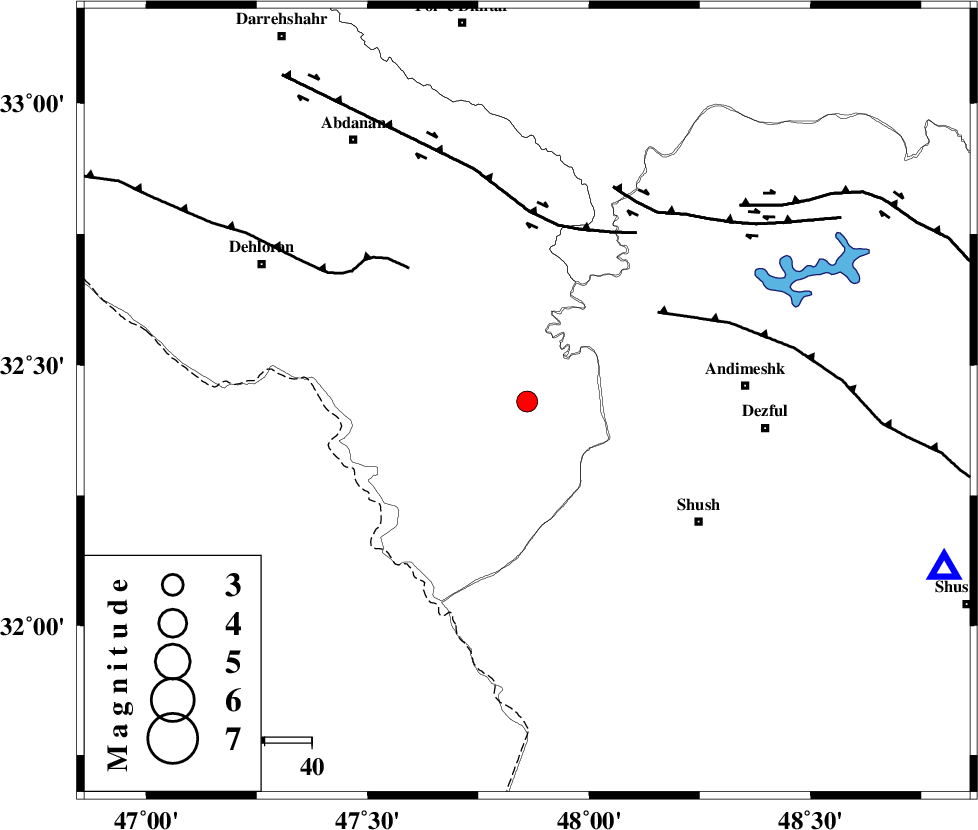

| Location | Lat:32.43 Lon: 47.86 |
| Region | Ilam Province, 46 km West of Andimeshk |
Nearest Cities |
|
| 45 km North West of Shush, Khoozestan Province | |
| 46 km South West of Hoseinieh, Khoozestan Province | |
| 46 km West of Andimeshk, Khoozestan Province | |
| 48 km North West of Amaleh teimur, Khoozestan Province | |
| 49 km South East of Musian, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 34 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 38 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 38 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94529 | IIEES | ASAO | E | 40.8 | 0.52 | 2014-12-16 20:50:48 | 2014-12-16 09:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-12-16 20:49:49 | 0.1 | y | 244 | 53 | |||
| IIEES | KHMZ | E | Sg | E | 2014-12-16 20:50:21 | -0.01 | y | 244 | 53 | |||
| IIEES | SNGE | Z | Pn | E | 2014-12-16 20:49:56 | -0.02 | y | 299 | 351 | |||
| IIEES | ASAO | Z | Pn | E | 2014-12-16 20:49:57 | 0.01 | y | 309 | 40 | |||
| IIEES | ASAO | N | Sg | E | 2014-12-16 20:50:39 | 0.02 | y | 309 | 40 | |||
| IIEES | GHVR | Z | Pn | E | 2014-12-16 20:50:07 | -0.1 | y | 388 | 53 | |||
| IIEES | GHVR | E | Sn | 2014-12-16 20:50:48 | -0.04 | y | 388 | 53 | ||||
