Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2014-12-19 01:48:10.2 |
| Date & Time (Local) | 1393/9/28 05:18:10.2 |

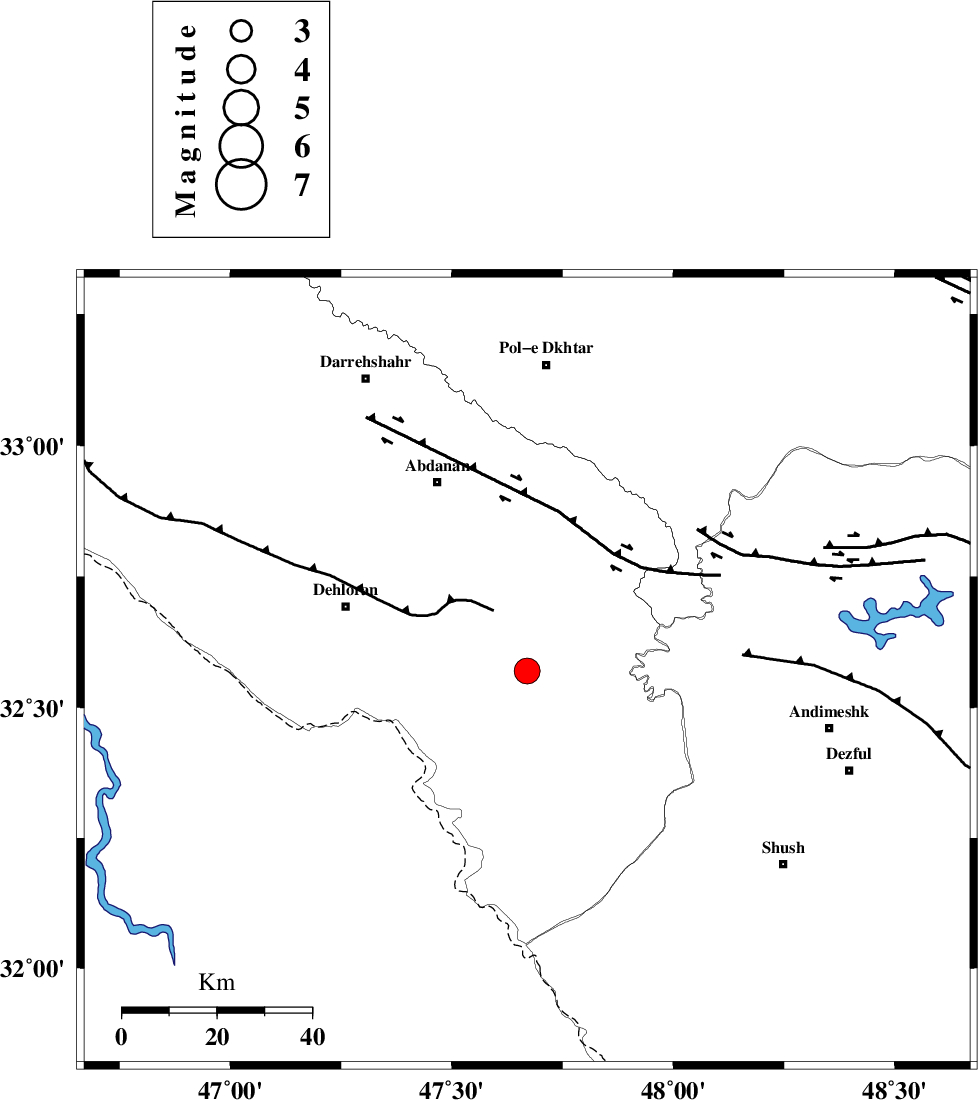

| Location | Lat:32.57 Lon: 47.67 |
| Region | Ilam Province, 40 km South-East of Dehloran |
Nearest Cities |
|
| 29 km North East of Musian, Ilam Province | |
| 38 km South East of Sarabbagh, Ilam Province | |
| 41 km South East of Dehloran, Ilam Province | |
| 44 km South East of Abdanan, Ilam Province | |
| 55 km South West of Hoseinieh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 15 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 31 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 46 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >3 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94549 | IIEES | SHGR | E | 2021.1 | 0.68 | 2014-12-19 01:49:05 | 2014-12-19 02:22:00 | n |
| 94550 | IIEES | ASAO | E | 258.5 | 0.64 | 2014-12-19 01:49:44 | 2014-12-19 02:22:00 | n |
| 94551 | IIEES | ASAO | N | 244.9 | 0.6 | 2014-12-19 01:49:45 | 2014-12-19 02:22:00 | n |
| 94552 | IIEES | GHVR | E | 138.1 | 0.64 | 2014-12-19 01:50:04 | 2014-12-19 02:22:00 | n |
| 94553 | IIEES | GHVR | N | 148.3 | 0.6 | 2014-12-19 01:50:14 | 2014-12-19 02:22:00 | n |
| 94554 | IIEES | AHRM | N | 55 | 0.48 | 2014-12-19 01:50:51 | 2014-12-19 02:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-12-19 01:48:29 | -0.52 | y | 119 | 115 | |||
| IIEES | SHGR | E | Sg | E | 2014-12-19 01:48:44 | 0.36 | y | 119 | 115 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-12-19 01:48:49 | -0.14 | y | 251 | 58 | |||
| IIEES | SNGE | Z | Pn | E | 2014-12-19 01:48:52 | 0.01 | y | 281 | 354 | |||
| IIEES | ASAO | Z | Pn | E | 2014-12-19 01:48:56 | 0.26 | y | 310 | 44 | |||
| IIEES | ASAO | E | Sg | E | 2014-12-19 01:49:37 | -0.16 | y | 310 | 44 | |||
| IIEES | GHVR | Z | Pn | E | 2014-12-19 01:49:06 | 0.04 | y | 394 | 57 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-12-19 01:49:15 | 0.22 | y | 464 | 11 | |||
| IIEES | CHTH | Z | Pn | E | 2014-12-19 01:49:18 | 0.01 | y | 488 | 40 | |||
