Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2015-05-05 23:35:11.5 |
| Date & Time (Local) | 1394/2/16 04:05:11.5 |

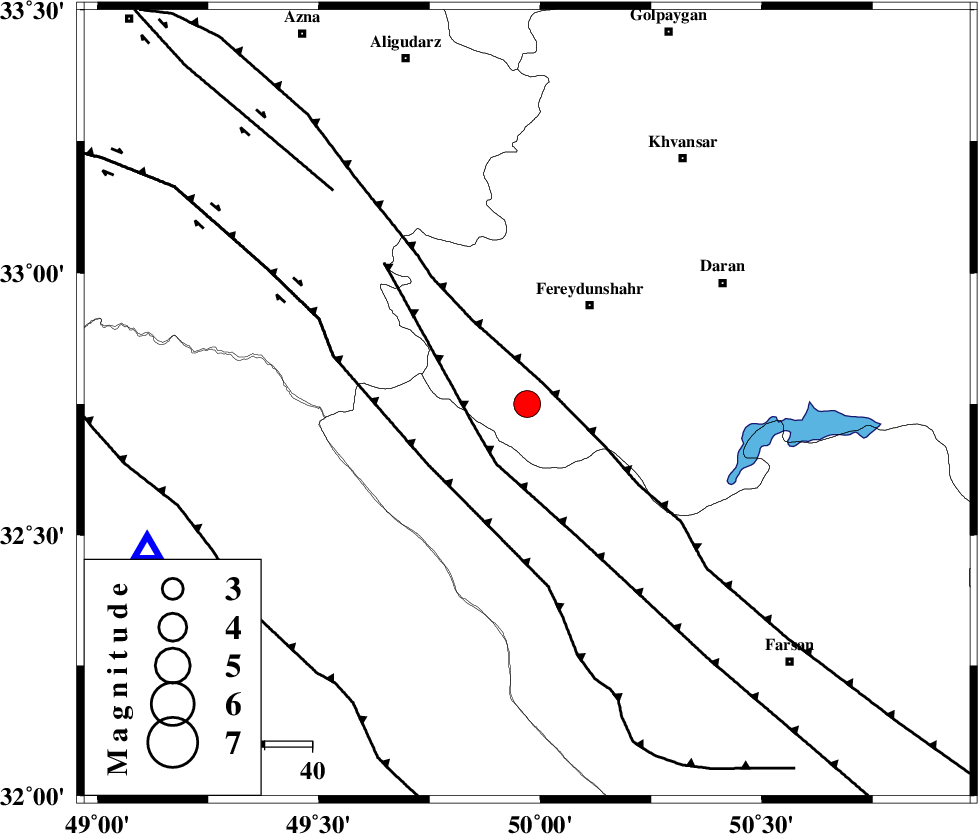

| Location | Lat:32.75 Lon: 49.97 |
| Region | Esfahan Province, 25 km South-West of Fereydunshahr |
Nearest Cities |
|
| 12 km North East of Durak, Chaharmahal Bakhtiari Province | |
| 15 km East of Masir, Esfahan Province | |
| 17 km South of Sibak, Esfahan Province | |
| 24 km North West of Ghale? sorkh, Esfahan Province | |
| 25 km South West of Fereydunshahr, Esfahan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 6 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 12 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 25 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 8.2 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 95590 | IIEES | SHGR | N | 2478.7 | 0.36 | 2015-05-05 23:35:53 | 2015-05-06 01:24:00 | n |
| 95591 | IIEES | SHGR | E | 1451.4 | 0.56 | 2015-05-05 23:35:53 | 2015-05-06 01:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2015-05-05 23:35:33 | -0.17 | y | 130 | 237 | |||
| IIEES | SHGR | E | Sg | E | 2015-05-05 23:35:49 | 0.14 | y | 130 | 237 | |||
| IIEES | ASAO | Z | Pn | E | 2015-05-05 23:35:43 | -0.27 | y | 200 | 2 | |||
| IIEES | ASAO | E | Sg | E | 2015-05-05 23:36:08 | 0.03 | y | 200 | 2 | |||
| IIEES | GHVR | Z | Pn | E | 2015-05-05 23:35:47 | 0.12 | y | 226 | 31 | |||
| IIEES | THKV | Z | Pn | E | 2015-05-05 23:36:04 | 0.23 | y | 361 | 13 | |||
| IIEES | DAMV | Z | Pn | E | 2015-05-05 23:36:04 | -0.05 | y | 369 | 29 | |||
