Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2015-10-30 22:03:34.4 |
| Date & Time (Local) | 1394/8/9 01:33:34.4 |

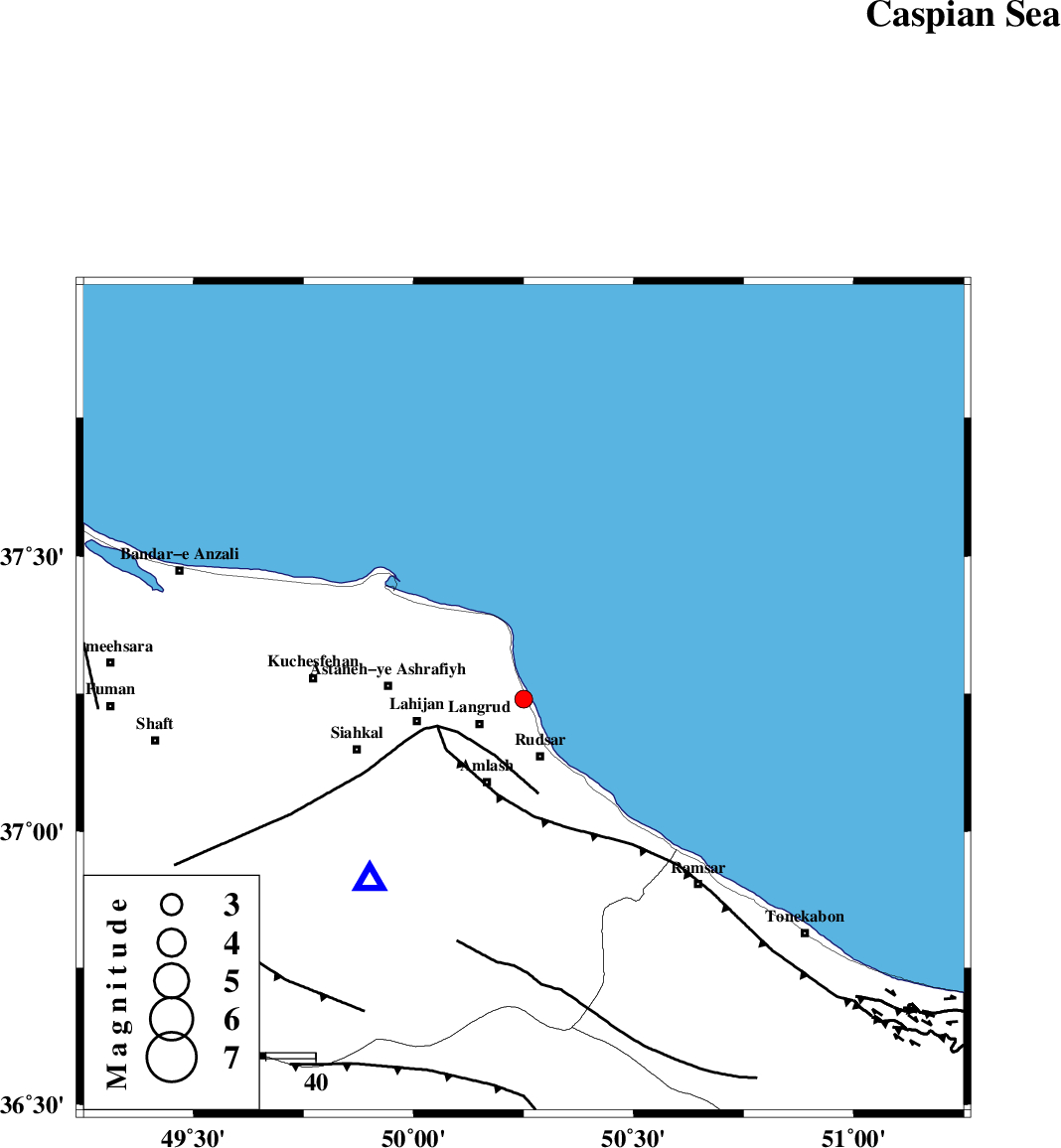

| Location | Lat:37.24 Lon: 50.25 |
| Region | Gilan Province, 12 km North of Rudsar |
Nearest Cities |
|
| 4 km of Chali-ye paeen, Gilan Province | |
| 8 km of Latlil, Gilan Province | |
| 9 km North of Daryasar, Gilan Province | |
| 10 km North of Kohnehgorab, Gilan Province | |
| 10 km North of Langarud, Gilan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 13 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 18 km | |
| BONAN_F (Length: 74 km) , Distance to epicenter: 51 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >6.6 km |
| Error in Longitude | 7.8 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 102090 | IIEES | THKV | N | 99.1 | 0.49 | 2015-10-30 22:04:22 | 2015-10-31 10:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2015-10-30 22:03:59 | -0.02 | y | 153 | 246 | |||
| IIEES | THKV | Z | Pg | E | 2015-10-30 22:04:00 | -0.08 | y | 157 | 159 | |||
| IIEES | THKV | N | Sg | E | 2015-10-30 22:04:19 | -0.26 | y | 157 | 159 | |||
| IIEES | CHTH | Z | Pg | E | 2015-10-30 22:04:02 | 0.51 | y | 167 | 152 | |||
| IIEES | CHTH | E | Sg | E | 2015-10-30 22:04:22 | -0.26 | y | 167 | 152 | |||
| IIEES | GRMI | Z | Pn | E | 2015-10-30 22:04:15 | -0.33 | y | 270 | 311 | |||
| IIEES | ASAO | Z | Pn | E | 2015-10-30 22:04:19 | 0.47 | y | 299 | 184 | |||
