Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2018-01-05 06:32:57.8 |
| Date & Time (Local) | 1396/10/15 10:02:57.8 |

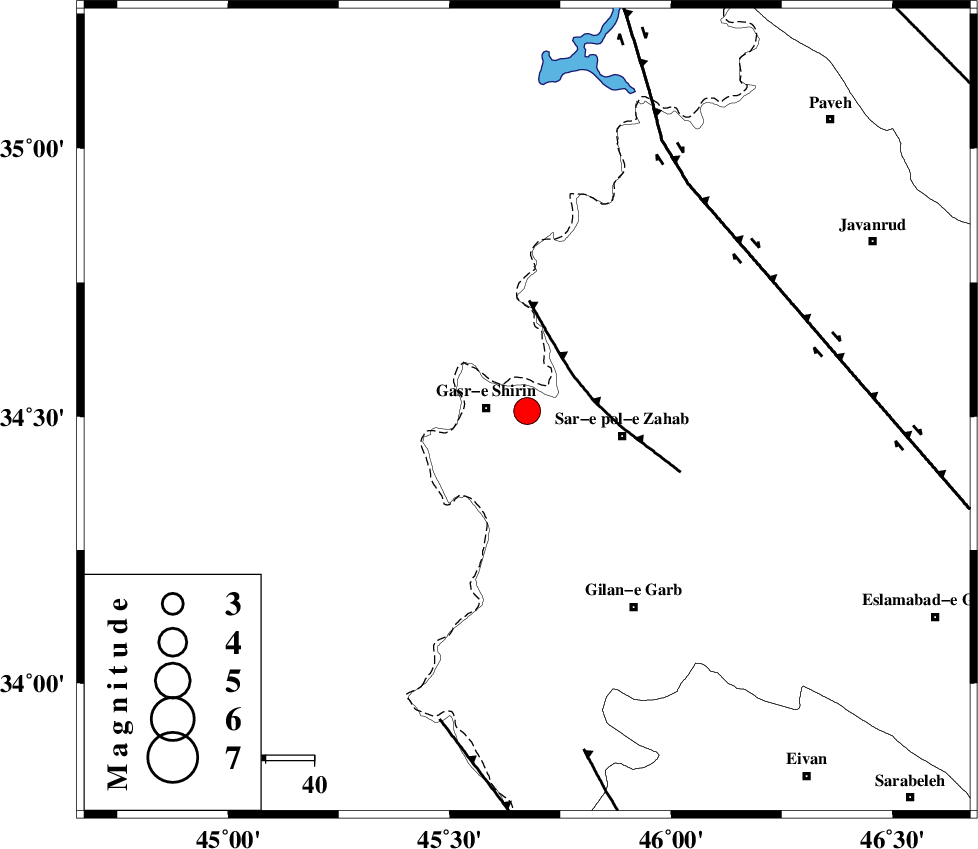

| Location | Lat:34.51 Lon: 45.675 |
| Region | Kermanshah Province, 8 km of Qasr-E-Shirin |
Nearest Cities |
|
| 4 km of Aqabarar, Kermanshah Province | |
| 8 km of Qasr-E-Shirin, Kermanshah Province | |
| 10 km North West of Qareh belagh, Kermanshah Province | |
| 10 km North of Seyyed sohrab, Kermanshah Province | |
| 10 km of Mirmiru, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 12 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 58 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 67 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 7.7 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 126085 | IIEES | SNGE | E | 2741.5 | 0.48 | 2018-01-05 06:33:49 | 2018-01-06 06:04:00 | n |
| 126086 | IIEES | SNGE | N | 2058.2 | 0.44 | 2018-01-05 06:33:50 | 2018-01-06 06:04:00 | n |
| 126087 | IIEES | ASAO | N | 76.3 | 0.67 | 2018-01-05 06:34:59 | 2018-01-06 06:04:00 | n |
| 126088 | IIEES | ASAO | E | 66.8 | 0.67 | 2018-01-05 06:35:01 | 2018-01-06 06:04:00 | n |
| 126089 | IIEES | GIDE | E | 88.2 | 0.77 | 2018-01-05 06:35:26 | 2018-01-06 06:04:00 | n |
| 126090 | IIEES | GIDE | N | 86.7 | 0.51 | 2018-01-05 06:35:27 | 2018-01-06 06:04:00 | n |
| 126091 | IIEES | THKV | E | 36.1 | 0.74 | 2018-01-05 06:35:41 | 2018-01-06 06:04:00 | n |
| 126092 | IIEES | GHVR | N | 59.4 | 0.7 | 2018-01-05 06:35:40 | 2018-01-06 06:04:00 | n |
| 126093 | IIEES | GHVR | E | 54.9 | 0.79 | 2018-01-05 06:35:43 | 2018-01-06 06:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-01-05 06:33:16 | -0.17 | y | 110 | 153 | |||
| IIEES | SNGE | Z | Pg | E | 2018-01-05 06:33:24 | -0.72 | y | 166 | 67 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-01-05 06:33:50 | 0.07 | y | 363 | 48 | |||
| IIEES | ASAO | Z | Pn | E | 2018-01-05 06:33:54 | -0.26 | y | 399 | 88 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-01-05 06:33:56 | 0.16 | y | 405 | 101 | |||
| IIEES | GIDE | Z | Pn | E | 2018-01-05 06:34:04 | 0.59 | y | 467 | 54 | |||
| IIEES | THKV | Z | Pn | E | 2018-01-05 06:34:07 | 0.11 | y | 499 | 70 | |||
| IIEES | GHVR | Z | Pn | E | 2018-01-05 06:34:09 | 0.24 | y | 512 | 89 | |||
| IIEES | GRMI | Z | Pn | E | 2018-01-05 06:34:09 | -0.4 | y | 517 | 22 | |||
| IIEES | CHTH | Z | Pn | E | 2018-01-05 06:34:10 | 0.57 | y | 520 | 71 | |||
| IIEES | MAKU | Z | Pn | E | 2018-01-05 06:34:13 | -0.02 | y | 545 | 351 | |||
| IIEES | DAMV | Z | Pn | E | 2018-01-05 06:34:18 | 0.24 | y | 587 | 76 | |||
| IIEES | NASN | Z | Pn | E | 2018-01-05 06:34:31 | -0.12 | y | 688 | 104 | |||
| IIEES | YZKH | Z | Pn | E | 2018-01-05 06:34:52 | 0.35 | y | 861 | 103 | |||
