Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2009-01-05 02:23:20.8 |
| Date & Time (Local) | 1387/10/16 05:53:20.8 |

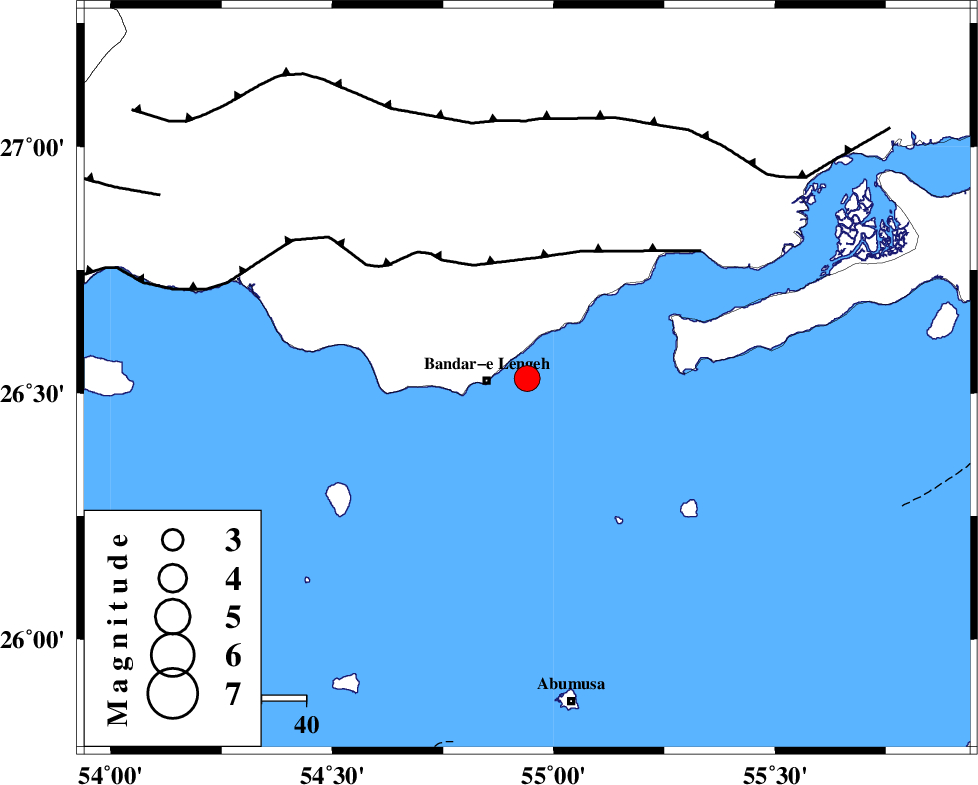

| Location | Lat:26.53 Lon: 54.94 |
| Region | Persian Gulf, 9 km Bandar-e lengeh |
Nearest Cities |
|
| 9 km North of Bandar-e lengeh, Hormozgan Province | |
| 74 km North of Abu Musa, Hormozgan Province | |
| 80 km South West of Bandar-e khamir, Hormozgan Province | |
| 85 km South East of Jenah, Hormozgan Province | |
| 94 km South East of Bastak, Hormozgan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 27 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 58 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 92 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >9.5 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 51643 | IIEES | BNDS | N | 1323 | 0.28 | 2009-01-05 02:24:10 | 2009-06-27 08:52:00 | n |
| 51644 | IIEES | BNDS | E | 1197.5 | 0.4 | 2009-01-05 02:24:16 | 2009-06-27 08:52:00 | n |
| 51645 | IIEES | KRBR | N | 82.4 | 0.6 | 2009-01-05 02:25:38 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2009-01-05 02:23:46 | 0 | y | 156 | 51 | |||
| IIEES | BNDS | N | Sg | E | 2009-01-05 02:24:05 | 0 | y | 156 | 51 | |||
| IIEES | KRBR | Z | Pn | E | 2009-01-05 02:24:21 | 0 | y | 422 | 25 | |||
| IIEES | NASN | Z | Pn | E | 2009-01-05 02:24:58 | 0 | y | 725 | 344 | |||
| IIEES | TABS | Z | Pn | E | 2009-01-05 02:25:09 | 0 | y | 817 | 14 | |||
