Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-05-01 02:12:30.5 |
| Date & Time (Local) | 1392/2/11 06:42:30.5 |

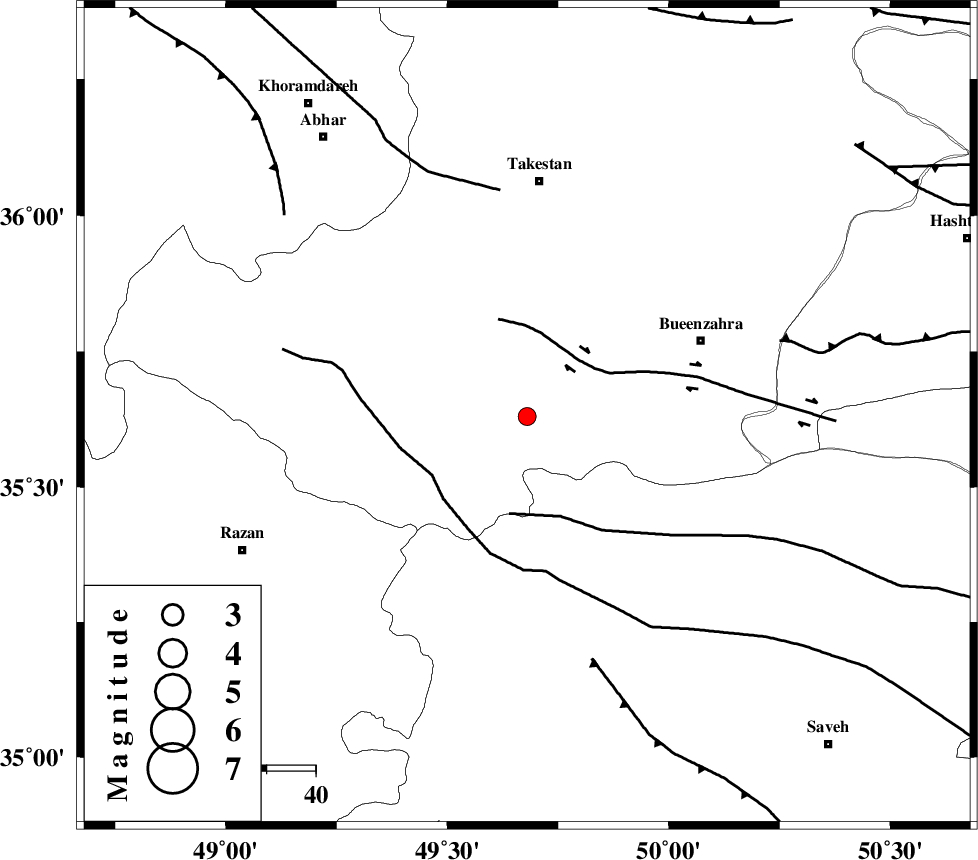

| Location | Lat:35.63 Lon: 49.68 |
| Region | Ghazvin Province, 49 km South of Takestan |
Nearest Cities |
|
| 18 km South of Danesfahan, Ghazvin Province | |
| 19 km North East of Kolanjin, Ghazvin Province | |
| 28 km South West of Sagezabad, Ghazvin Province | |
| 28 km North West of Duzaj, Markazi Province | |
| 31 km South of Shal, Ghazvin Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| IPAK_F (Length: 80 km) , Distance to epicenter: 16 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 20 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 23 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89018 | IIEES | GHVR | E | 93 | 0.24 | 2013-05-01 02:13:30 | 2013-05-01 03:54:00 | n |
| 89019 | IIEES | GHVR | N | 35.4 | 0.36 | 2013-05-01 02:13:30 | 2013-05-01 03:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2013-05-01 02:12:51 | 0.03 | y | 124 | 165 | |||
| IIEES | CHTH | Z | Pg | E | 2013-05-01 02:12:52 | -0.1 | y | 134 | 76 | |||
| IIEES | CHTH | N | S | E | 2013-05-01 02:13:09 | 0.04 | y | 134 | 76 | |||
| IIEES | ZNJK | Z | Pg | E | 2013-05-01 02:12:55 | 0.03 | y | 147 | 323 | |||
| IIEES | GHVR | Z | Pg | E | 2013-05-01 02:13:01 | 0.01 | y | 191 | 131 | |||
