Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-06-15 05:04:37.2 |
| Date & Time (Local) | 1392/3/25 09:34:37.2 |

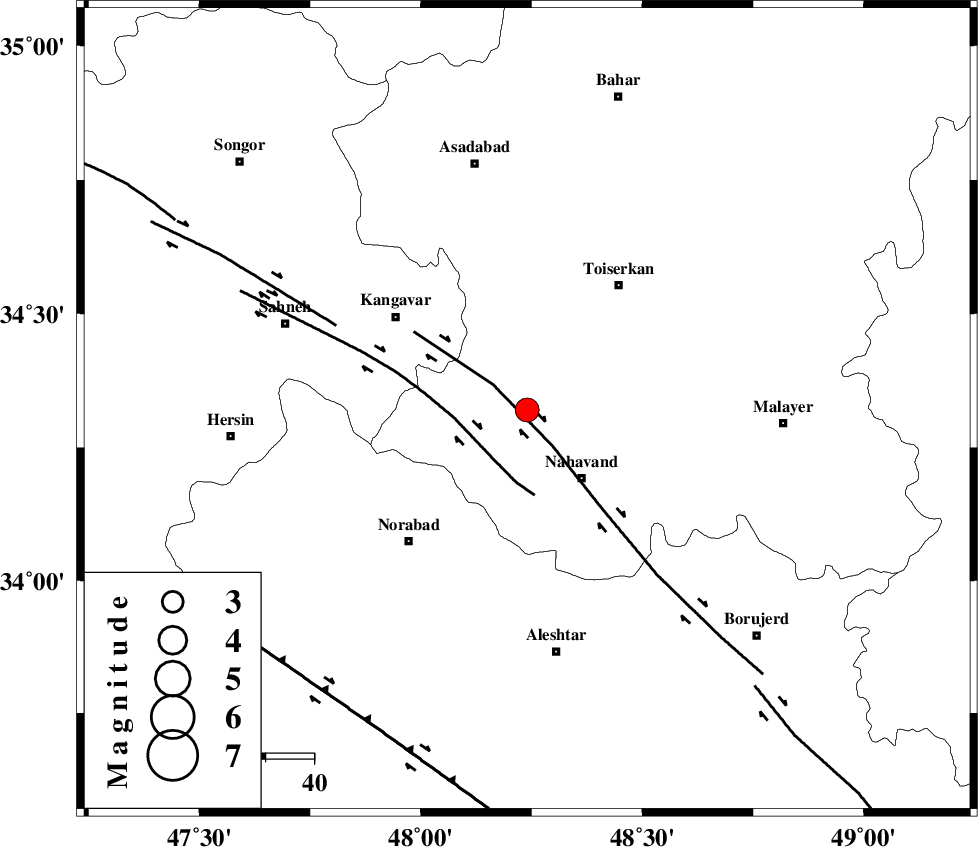

| Location | Lat:34.32 Lon: 48.24 |
| Region | Hamedan Province, 18 km North-West of Nahavand |
Nearest Cities |
|
| 9 km of Firuzan, Hamedan Province | |
| 10 km North of Shahrak, Hamedan Province | |
| 11 km North of Barzul, Hamedan Province | |
| 13 km North West of Dehghul, Hamedan Province | |
| 16 km North of Gian, Hamedan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 9 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 12 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 43 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89651 | IIEES | ASAO | E | 603 | 0.4 | 2013-06-15 05:05:35 | 2013-06-15 07:09:00 | n |
| 89652 | IIEES | KHMZ | N | 584.8 | 0.47 | 2013-06-15 05:05:32 | 2013-06-15 07:09:00 | n |
| 89653 | IIEES | KHMZ | E | 466.5 | 0.54 | 2013-06-15 05:05:32 | 2013-06-15 07:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2013-06-15 05:04:59 | -0.07 | y | 119 | 316 | |||
| IIEES | ASAO | Z | Pg | E | 2013-06-15 05:05:04 | 0 | y | 166 | 81 | |||
| IIEES | SHGR | Z | Pn | E | 2013-06-15 05:05:16 | 0.22 | y | 251 | 168 | |||
| IIEES | SHGR | E | Sg | E | 2013-06-15 05:05:47 | -0.2 | y | 251 | 168 | |||
| IIEES | GHVR | N | Sg | E | 2013-06-15 05:05:55 | -0.05 | y | 277 | 86 | |||
| IIEES | CHTH | Z | Pn | E | 2013-06-15 05:05:24 | -0.16 | y | 316 | 55 | |||
| IIEES | NASN | Z | Pn | E | 2013-06-15 05:05:42 | 0.35 | y | 456 | 110 | |||
