Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2015-08-10 19:15:15.8 |
| Date & Time (Local) | 1394/5/19 23:45:15.8 |

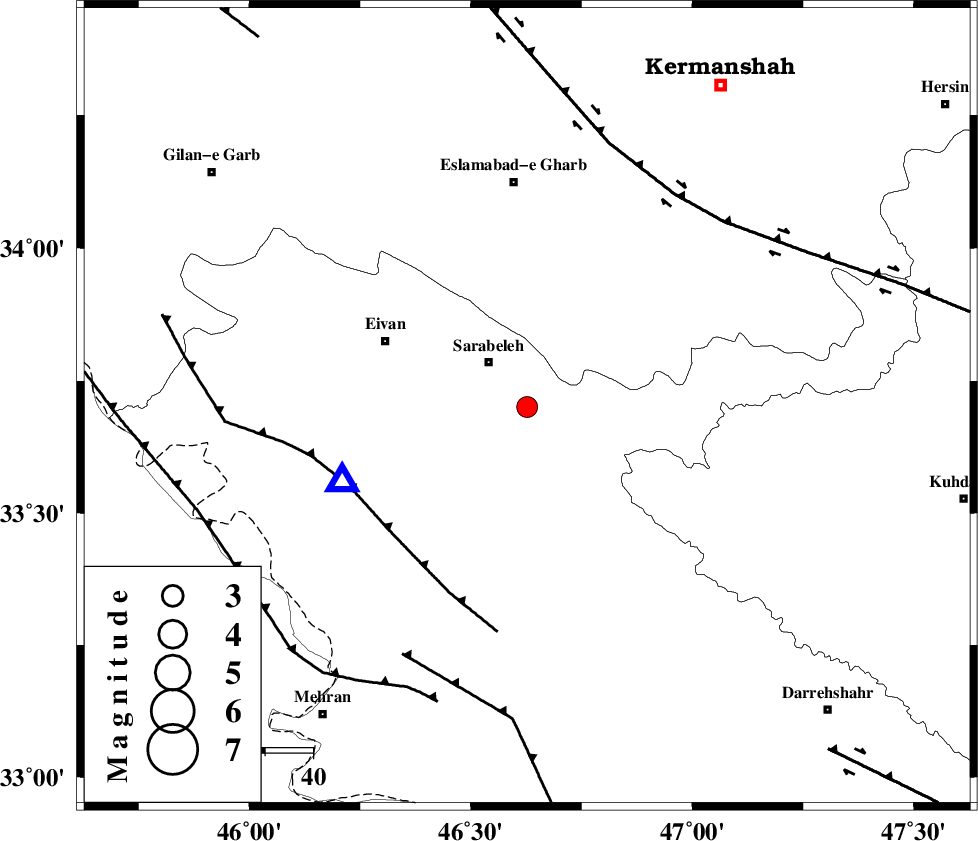

| Location | Lat:33.701 Lon: 46.627 |
| Region | Ilam Province, 12 km of Sar Ableh |
Nearest Cities |
|
| 9 km North of Sartang-e malehmaran, Ilam Province | |
| 12 km of Sar Ableh, Ilam Province | |
| 16 km South of Mohammadqoli, Ilam Province | |
| 17 km North West of Belaveh tare-e sofla, Ilam Province | |
| 20 km North East of Ilam, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 39 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 54 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 58 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >5 km |
| Error in Longitude | 5 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100296 | IIEES | SNGE | N | 149.3 | 0.37 | 2015-08-10 19:16:10 | 2015-08-12 08:24:00 | n |
| 100297 | IIEES | GHVR | E | 16.9 | 0.69 | 2015-08-10 19:17:26 | 2015-08-12 08:24:00 | n |
| 100298 | IIEES | GHVR | N | 15.1 | 0.65 | 2015-08-10 19:17:27 | 2015-08-12 08:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2015-08-10 19:15:43 | -0.29 | y | 168 | 23 | |||
| IIEES | SNGE | N | Sg | E | 2015-08-10 19:16:04 | 0.18 | y | 168 | 23 | |||
| IIEES | KHMZ | Z | P | E | 2015-08-10 19:16:02 | 0.06 | y | 309 | 88 | |||
| IIEES | ASAO | Z | Pn | E | 2015-08-10 19:16:04 | 0.18 | y | 327 | 72 | |||
| IIEES | ASAO | E | Sg | E | 2015-08-10 19:16:47 | -0.19 | y | 327 | 72 | |||
| IIEES | GHVR | Z | Pn | E | 2015-08-10 19:16:17 | -0.02 | y | 435 | 77 | |||
| IIEES | GHVR | N | Sg | E | 2015-08-10 19:17:17 | 0.09 | y | 435 | 77 | |||
